| Prod Model: |

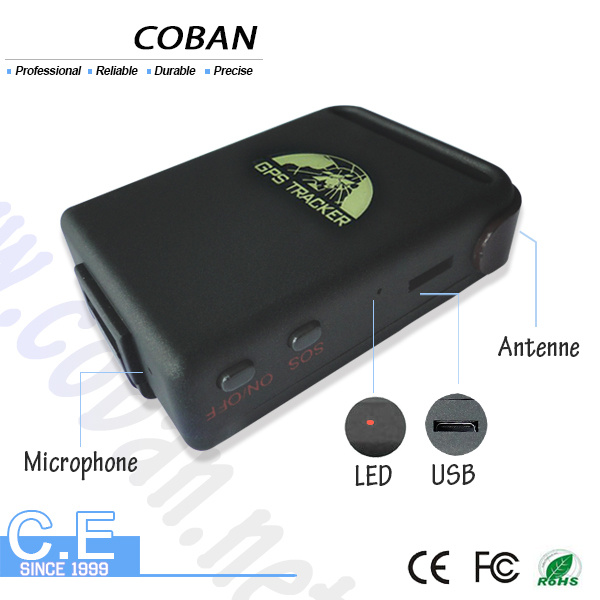

mini GPS TRACKER TK102 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Products Type: |
GPS Tracker 102 |
| Memory Slot: |
Yes |
| Portable Or Handheld: |
Yes |
| Warranty Time: |
12 Months |
| Shipment: |
by DHL, UPS FedEx etc Express or by Air |
| Mini GPS Tracker Main Functions: |
Geo Fence, Over Speed, Shock Sensor Alarm etc |
| Packaging: |
50 Unit /Carton in Standard Color Box |
| Portable Handheld Tracking For Person: |
Internal Antennas Tracker for Person |
| For Car Tracking: |
Sos/Geo Fence, Over Speed Alarm |
| Type: |
GPS Tracker |
| Use: |
Automotive&Hand Held |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Position and GSM Transmit |
| Port Number: |
20 |
| Model: |
GPS Car Tracker GPS102 |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
GPS Tracker |
| Certification: |
ISO9001 |
Product Description
mini GPS TRACKER TK102 Real-time tracking Listen-in Google Map Link 1.waterproof hiden GPS Tracker
2.real time gps tracking
3.Geofence, movement ,sos panic button
4.Android IOS app tracking
5.mini handheld gps tracking
Model: GPS tracker 102
2.Multiple tracking ways;Provide monitor software with the global mapfree,
real-time track by your computer or PDA cell phone or googleearth.
3.
Standby 80hours.4. Small cubage;
Dimension: 46*64*17mm (1.8*2.5*0.65inch)
Weight: 50g
Integration design(antenna and battery inside);easy to hide and take along with you
5. Support orientation without orientated server: it can find out Real-time longitude and latitude, time and speed. By using public map software and entering longitude and latitude manually, you can find out the real-time information of position.
6. Can support platform:
When using platform, it can track targets in real time on electronic map, or inquire the target's position by mobile phone.
7. If the target you are inquiring enters into underground parking lot or other GPS blind area, the tracker will inform you the last orientation.
8. Tracking function by timing and frequency
9. Authorized number added and deleted function
10. Support hidden alarm and monitor function
11. Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
12. Movement alert: you can set up barriers when the tracker is stopped. Once moved, it can give an alarm to the authorized number.
13. Over speed alarm: you can make the inspected target run according to fixed speed. It alarms when speed is exceeded.
14. Low battery alarm function
Applying directions: 1.Vehicle rental/out-door machines and equipments ect. guard tracking
2.Protect child / the old / the disabled / pet etc
3.Provide peace-of-mind for businessmen
4.Manage personnel
5.Track criminals secretly
Specifications :
Content |
Specifications |
Dim. |
64mm x 46mm x 17mm(1.8"*2.5"*0.65") |
Weight |
50g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS sensitivity |
-159dBm |
GPS accuracy |
5m |
Time To First Fix |
Cold status 45s
Warm status 35s
Hot status 1s |
Car charger |
12-24V input
5V output |
Wall charger |
110-220V input
5V output |
Battery |
Chargeable changeable 3.7V 1000mAh Li-ion battery |
Standby |
80hours |
Storage Temp. |
-40°C to +85°C |
Operation Temp. |
-20°C to +55°C |
Humidity |
5%--95% non-condensing |

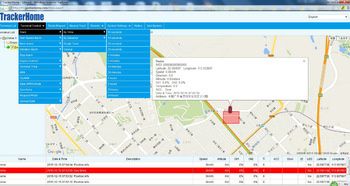

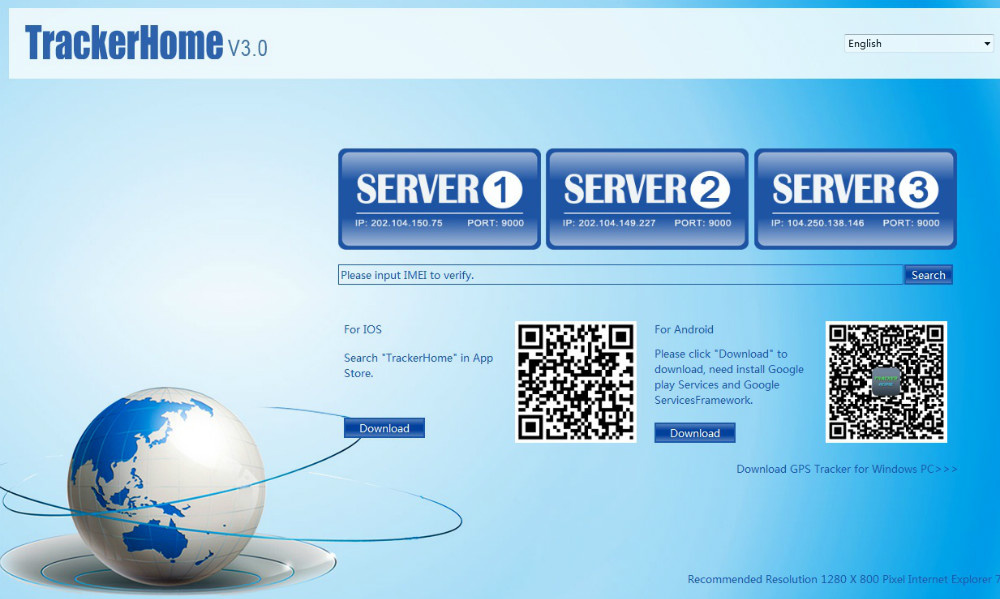

the following Four tracking solutions:SMS tracking on cellphone with a googlemap link to view current location on map on cellphone screen. Get absolute address by SMSAndroid IOS app tracking Web server online tracking. Capable of monitor 10,000 objects
Android IOS app tracking
