Mini GPS Tracker /Tracking Device with APP (A18)
| Price: |
US $ 19-20/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
A18 |
| Chipset: |
Mtk 2503 |
| Style: |
Stylish and Elegant |
| Accuracy Base Station Location: |
100-1000m |
| GPRS: |
Class12 |
| Button: |
Power Button and Sos Button |
| Colors Available: |
Black, White |
| Size: |
40X38X15mm |
| Battery: |
450mAh |
| Supported OS: |
Android 2.3 and Above, Ios 5.0 and Above |
| SIM Card Type: |
Micro SIM |
Product Description
Mini GPS Tracker support G-sensor is a new generation of personal GPS tracking gadget for kids/elderly/pets/personal asset. It is compact, accurate, discreet and reliable. With Quad-Band GSM connectivity, the GPS Tracker works anywhere .
Specifications:| Structure parts | type | Specification |
| ID design | Fashion |

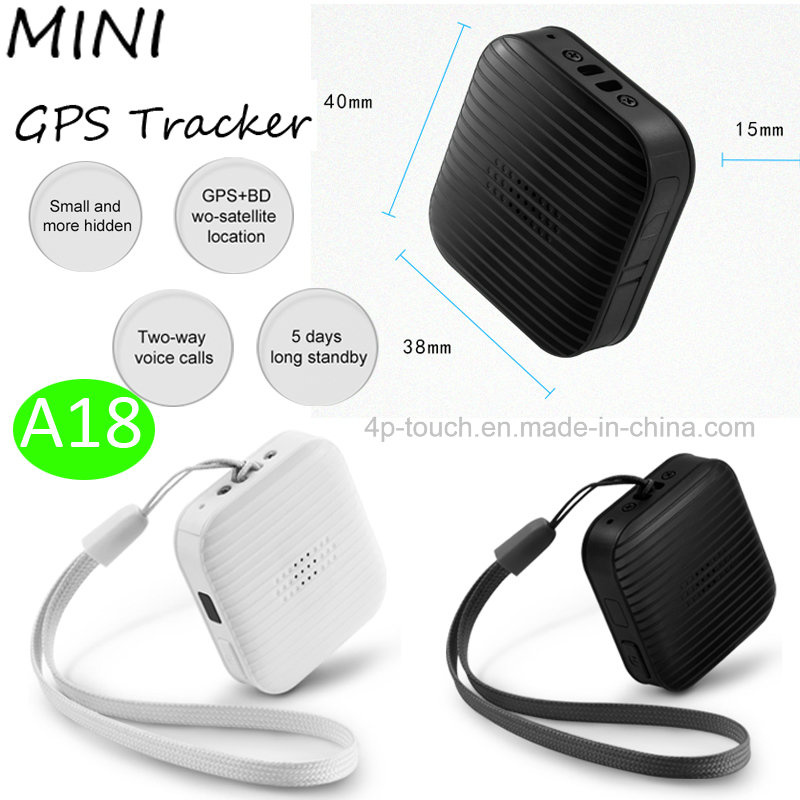

| Whole machine size | 40x38x15mm |
| Weight | 25g |
| Color | white/ black |

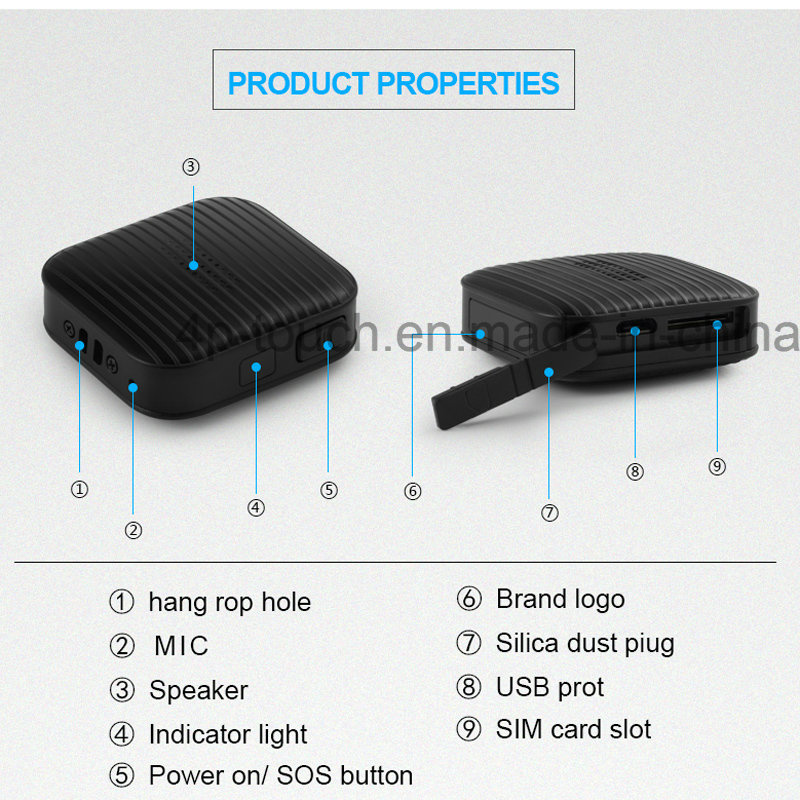

| Button | Power button/SOS button |
| gps antenna | High sensitive ceramics active antenna |
| GSM antenna | Four frenquency PIFA antenna |
| Battery | 450mAh |
| SIM card type | Micro SIM |
| G-senser | Support |
| I/O port | USB charge |
| Hardware parts | Chip | MTK MT2503 |
| GPRS | Class12 |
| GPS signal | L1,1575.42MHz C/A |
| GPS channel number | 22 channels |
| GPS chip receive sensitivity | Tracking sensitivity:-165dBm,capture sensitivity:-148dBm |
| GPS location accuracy | 5~15m |
| LBS location accuracy | 100~1000m |
| Minimum standby current | Less than 0.5 mA |
| Average standby current | Less than 2.5 mA |
| Average working current | About 55mA |
| Working temperature | -20~70ºC |
| Working humidity | 5% to 95% non-congealable |
| Test and certification | Can pass 3C and CE certification |
| GPS antenna | High sensitive ceramics active antenna |
| GSM antenna | Four frenquency PIFA antenna |
| Bluetooth | bluetooth 3.0(close normal time) |
| G-senser | Supported |
| MIC | Supported |
| Software parts | Support operate system | Support 2.3 and above system, IOS5.0 and above |
| Call function | Two way talk/remote voice monitor |
| Language support | Simplified Chinese, English |
| Positioning | GPS+LBS positioning |
| Support AGPS | Cool start 26 seconds positioning |
| Call function | SOS call ,voice monitoring,whitelist do not disturb mode |
| Power management | Ultra-low consumption of power managment, intelligent dormancy |
| One key emergency | SOS one button emergency call ,auto-dailing |
| Smart Geo-fence | Can automatic alarm when out of range |
| Historicial route | Can check three months' historical route |
| Wireless upgrading | Software remote upgrading, remote debugging maintence , remote setting parameters |
1,Install the SIM card
2 ,Setup apn for access of network
SIM card in some countries need to setup apn before access to GPRS network, please contact the SIM card operator or check the website of the SIM card for the apn information.
3, Install the app
User can check GPS tracker remotely via android/iOS app or PC,
4 ,Login the app
Click the icon "AIBEILE" on desktop and then login the ID and the password of the device (the default password is 123456). User can login by ID or by username, user need to contact reseller to register an username if need to login by username.
FAQ
*What's the MOQ and lead time?
For our existing mold items, normally we don't have strict MOQ, samples or trial order is available.
Our sample lead time 2-3days, our production lead time is 10-15days, which also based on the order quantity.
*Can I brand the items with our own logo/Brand?
Yes, we do provide OEM & ODM service.
*What's the payment terms you accept?
Our payment term: T/T(30% down payment, 70% balance before shipment),
for small batch orders, normally we accept Paypal payment, for bulk order we have HK HSBC account or Western Union account.
*How long do you offer for your product warranty?
Our product warranty is 12 months, except artificially damaged or improper operation;
*How can I get a sample to check quality?
Please just forward me the sample order summary (include the exact item number, preferred colors, sample quantity), then I will make the sample PI for your approval, after received your payment through Paypal, I will send out the sample to you
*When can I get the prices?
Within 12 hours after we received your inquiries.
*How about the shipping?
For sample dispatch, we normally send through International Courier door to door(such as DHL, FedEx, UPS, TNT etc.),for bulk order, we normally ship by air or by sea, based on clients requirement. we will offer the most reasonable way for our clients.
Please feel free to contact me if you have any question.
Thank you!
