| Prod Model: |
M558 |
| Platform: |
Web Based Platform and APP |
| GSM Frequency: |
850/900/1800/1900MHz |
| Chip: |
U-Blox |
| Accuracy: |
5 Meters |
| Application: |
Car Trackin |
| Product Name: |
GPS Tracker |
| Warranty: |
1 Year |
| Price: |
Big Discount on Bulk Quantity |
| Server: |
Cloud Server |
| Brand Name: |
Support OEM |
Product Description

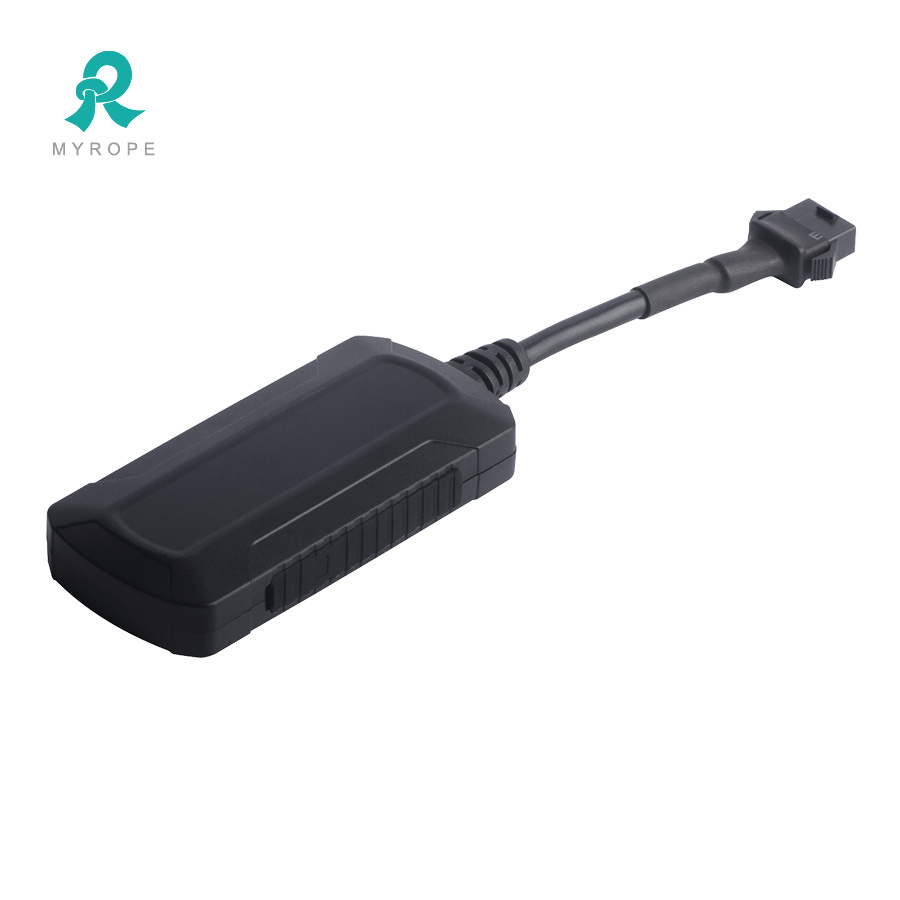

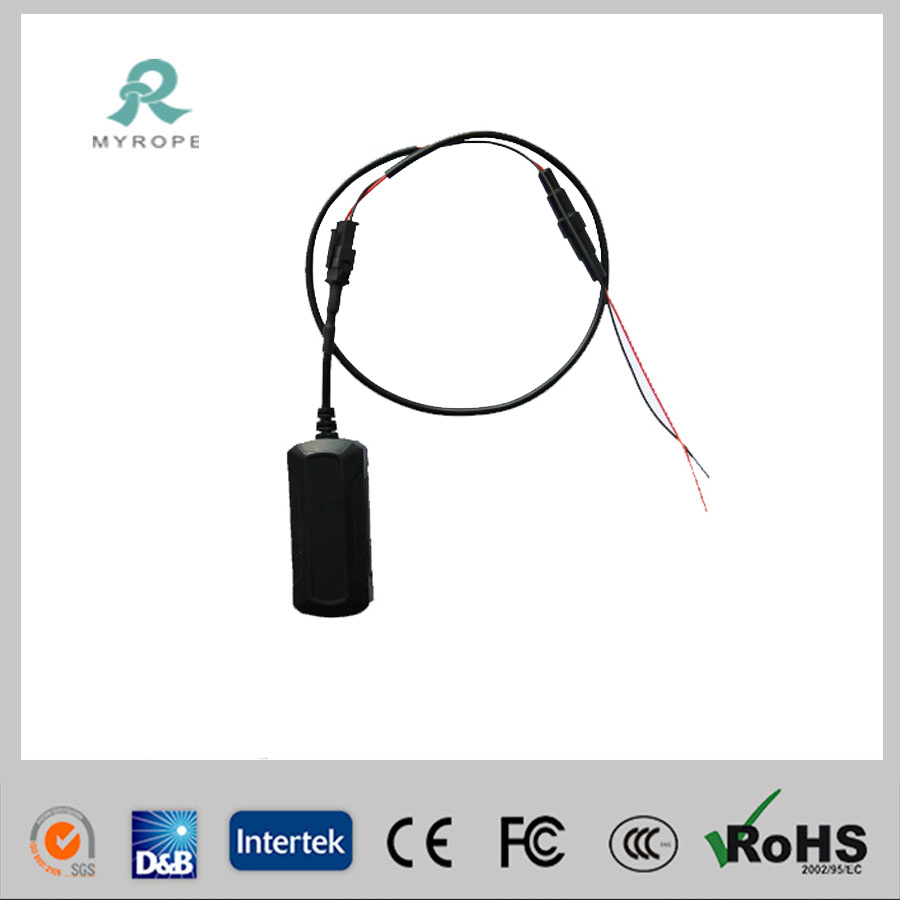

mini GPS tracker with free platform supportGPS tracker-motorbike tracker, motorbike GPS tracker, motorcycle alarm, GPS bike tracker GPS,vehicle gps tracker ,gps car M558 use GPS+LBS double solution which support sos ,ACC and microphone relay to stop car and resume .M558 GPS Tracking device mainly consists of two parts such as GPS module and GSM module. GPS module is for getting location data from satellite, and GSM module is for transferring data to server so that people can check the information via PC or mobile phone. Our GPS Tracking device, with the best quality, stable performance and versatile functions,can be applied to various kind of fleet management like construction trucks, rental cars, logistics vehicles and public transportation, anti-theft system and security purpose.
2.
Functions| Smallest size, as small as USB dongle | Parking alarm; |
| Built-in antenna; | Tired driving alarm; |
| Track by SMS or GPRS; | History playback; |
| Real time tracking at intervals; | Mileage statistics; |
| Resend data from signal dead zone; | Reports statistics; |
| Low power alarm; | Remotely update firmware. |
| Overspeed alarm; | |
| Geo-fence alarm; | |
3.
Specificationswork voltage | 8VDC~100VDC |
work current | 50mA~160mA |
GSM module | Four Band: GSM 850/900/1800/1900Mhz Quectel M26 |
Communication protocol | UDP/TCP(can be customized) |
GPS module | Ublox chipset |
GPS sensitivity | -159dBm |
GPS frequency | L1, 1575.42 MHz |
C/A coding | 1.023 MHz chip rate |
Channels | 20 channels examine track |
Position accuracy | 10 meter, 2D RMS |
Speed accuracy | 0.1 meter/second |
Tine accuracy | GPS time synchronization |
Default data | WGS-84 |
Recover | Average 0.1 second |
Hot start | Average 1 second |
Warm boot | Average 38 second |
Cold boot | Average 42 second |
Height limit | 18,000 meter (60,000 feet) max |
Speed limit | 515 kilometer/second (1000 knots)max |
Acceleration limit | Less than 4g |
Work temperature | -20°~ 70° C |
Storage temperature | -30°~ 85° C |
Humidity | 5% ~ 95% noncondensing |
Terminal size | 55mm × 28mm × 12mm |
Inside battery | Continuous working no less than 4 hours |
4.

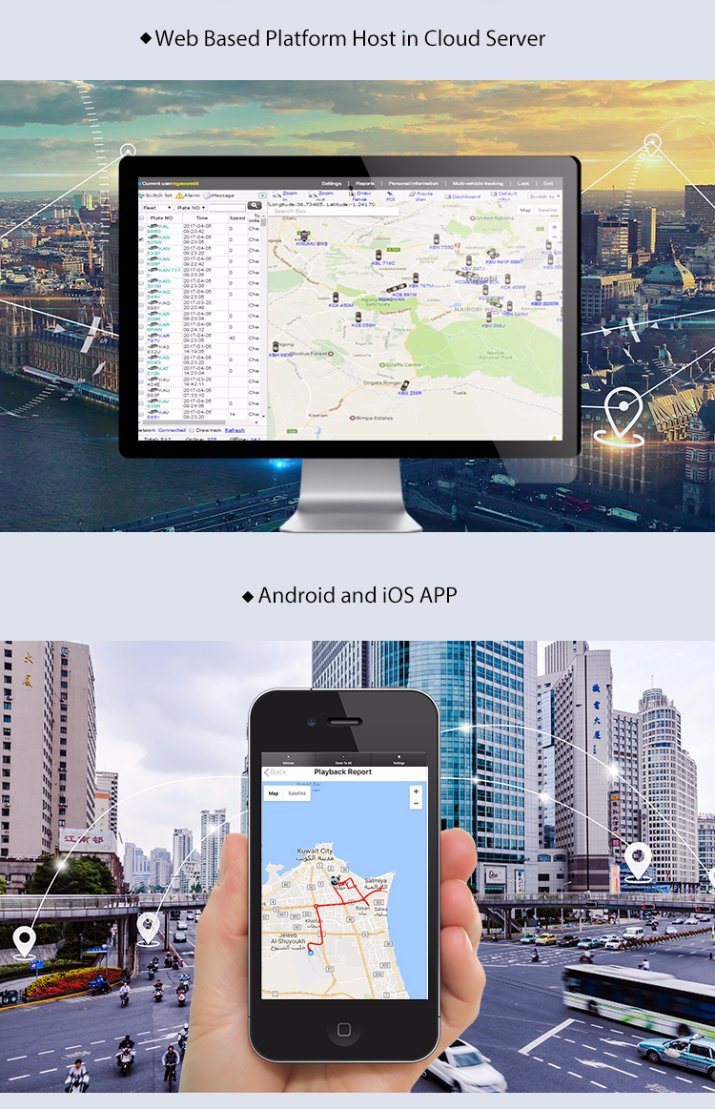

Web Platform & APP1) Stable and fast response.
2) It can support more than 10000 units tracker .
3) Can track in real time.
4) Remote control the vehicle by changing the settings.
5) With full function like take photo, POI, Geo-fence, check alert message and etc.
6) We can customize the software as your requirements
7) Our software support 18 languages: Chinese, English, Russian, Spanish, Portuguese, Norwegian, Vietnamese, Arabic, Polish, Sinhala, Tamil, farsi, Danish, Serbian,
Turkish, greek language, Georgian, Hrvatski.
8) Easy to manage.
9) Support many kinds of reports.
10) PC-based, Web-based and smart-phone based APP .
Platform
5. Certifications
ROPE INNOVATION CO Ltd, a technology creative company, with its principal office at Shenzhen the special economic zone of China, is engaged in researching and manufacturing various kinds of telecom electronic products and professional in the field of GPS tracking solutions.
Within 10 years development, We had built up a large manufacturing base including molding, plastics shaping, SMT and full sets of production lines. With the purpose of improving the quality and safety of products and satisfying the requirements of all kinds of customers, we have obtained ISO9001-2008 international management system and types of certificates for products like CCC, CE, FCC, RoHS and explosion-proof certificate early or late, and succeeded in applying our tracking system in construction machine management, logistics fleet management, bus fleet management, taxi solutions and anti-theft system for private cars, person, pets and assets etc. Owning an experienced R&D team with its member of more than 30 engineers, we are able to offer customers ODM and OEM service to customize the brand-new products as per your particular requirements.
With the effort of the entire excellent team, we registered the brand of "MYROPE", gradually became one of the lead in the GPS tracking industry and enjoyed a great popularity worldwide. We were and will go on keeping the tenet of "Flawless quality, Meticulous Service and Endless Innovation" in the progress of development in order that we can all the way provide customers with advanced, stable and high performance products and satisfactory service.
We sincerely hope that we could create a more convenient and safer life for the whole civilians of the world together with you.
