Mini GPS Tracking Device with Car Alarm System

Mini GPS Tracking Device with Car Alarm System
Price: US $ 42/Set
Trade Terms: FOB
Min Order: 100/Set
Pay Type: T/T,Western Union,Paypal
Prod Model: MT08
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 62*50*22mm
Waterproof Design: Yes
Is Customized: Yes
Fuel Sensor: Yes
Free Tracking Software: Yes

Product Description

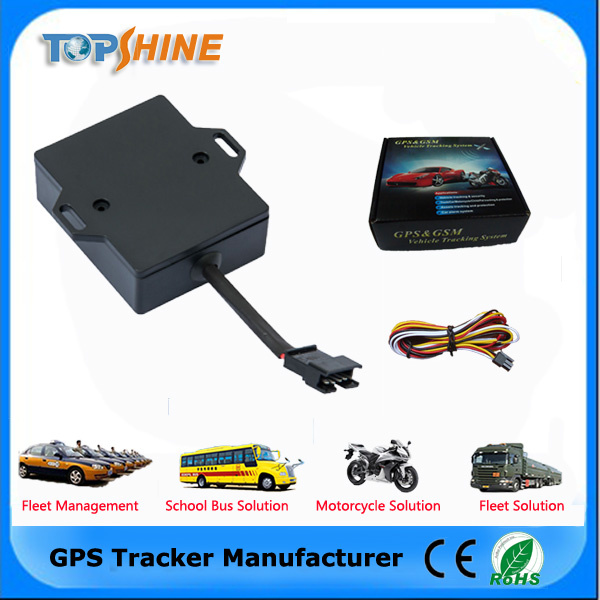

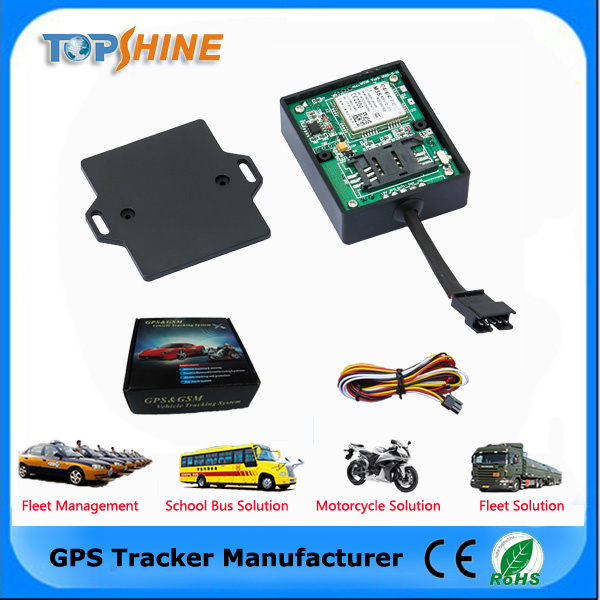

Mini GPS Tracking Device with Free Tracking Platform

Product Overview

The MT08 GPS motorcycle/vehicle tracker is a high cost-effective solution for security & real-time tracking. It is specially used for motorcycle/car tracking because of its compact size and water-proof design.


MT08 is high cost-effective mini GPS motorcycle tracker with waterproof design. It is suitable for all kinds of vehicles and fleet management. MT08 has just one digital input and one output, with normal functions of GPS trackers.

Functions of MT08
Real time tracking for motorcycle / private carWaterproof GPS Tracker
Track by time intervalRemote engine cut off to stop vehicle (Optional)
Track by distance intervalSOS emergency alarm (Optional)
Track by angle intervalFuel consumption monitoring (Optional)
Online ReportsEngine ON/OFF alarm
Geo-fence setting / alarmSpeeding alarm / over speed report
Power saving / Sleep modeCheck real address name
Check Google Map linkMonitor from online free tracking platform

Technical Specifications of MT08
ItemsSpecification
Dimension63*50*20mm
Weight85g
GPS ChipuBlox 7
GPS Sensitivity-159dBm
GPS Accuracy10 meters, 2D RMS
GSM ChipM35
GSM FrequencyGSM850/900/1800/1900MHz
Hot Start
Warm Start
Cold Start
1sec, average
38sec, average
42sec, average
Operating Temperature  - 20 deg C ~ 65 deg C
LED2 LED lights to show GPS / GSM working status
Charge Voltage9V~36V
WaterproofYes
ButtonSOS button (optional)
SensorFuel, temperature, gravity, motion / shock, crash / accident, alcohol, door sensor, etc.
Data Logger2MB default
Input / Output2 digital inputs, 1 output, 1 alternative analog input, 1 12V power wire, 1 GND;
1 internal RS-232 USB port



Standard Packing
Main unit       5pin wiring


Optional Accessories
 Fuel sensor
Relay
SOSbutton
Microphone



Shipment Terms
We usaually use DHL, FeDex, EMS express for small orders. You can also assign your special couriers.

Unix box: color box or neutral white box / yellow box.
Shipment: 3 to 5 days after payment.




Applications

* Vehicle/ Real Time Tracking
* Motorcycle/Car Security/Anti-Hijack
* Fleet Management


Features & Functions

* Track on command or by time interval via SMS/GPRS.
* Track by distance
*Fuel monitoring (optional)
*Track by Location of GSM Base station
* Arm/disarm by SMS or phone call.
* Check the car's real physical address (such as city name, street name...(need support of the GPRS01 or SMS01 center);
* Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
* Check the location directly by the Google map's URL;
* Online website tracking by GPRS data network;
* Odometer function
* Over-speed alert, Geo-fence alert;
* Movement alert which can be used as an alarm.
* Cut off engine to stop the car safely by SMS/GPRS;
* Built-in 350mAh rechargeable backup battery; When the car battery is cut off, the system will send out power failure alert immediately.
* I/O: 2 input and 1output
*Compact size with water-proof design
* Monitor the voice (optional)


Packing and Accessories



Optional Accessories

Fuel Sensor

Relay
SOS Button








Why Choose TOPSHINE

>> Professional manufacturer, less intermediate links, then more competitive price and quicker service than a trade company.

>> 13 year experience in GPS tracking system and car alarm security system, strict ISO9001 quality control and rigorous tests before shipment, ensure our superior and proven reliable quality. Tests include high and low temperature aging test, vibration test, noise tests, high and low voltage change tolerance test, etc.

Inquiry Now!!

Guangzhou Topshine Electronic Technology Co., Ltd. is a China leader manufacturer of superior Global Positioning System (GPS) tracking solutions and innovative integrated wireless communication equipments.

Since 1999, Topshine designs, develops, and manufactures high quality GPS tracking products, including location based and personal tracking systems for the vehicle, insurance, logistics and marine markets etc.

With experienced R&D team, excellent sales team and user-friendly software platform, we can promptly provide customized products, solutions and technical support and services, which helps us build a high reputation in the industry and among our customers all over the world. 90% of our products are for export. Our duty is to deliver the right product at the best price to meet your requirements. We try to exceed the expectations of every client by offering outstanding products backed up with effective and professional customer services and support.

TOPSHINE provides a proprietary system to help clients manage their fleet and asset.

Our proprietary software, Platform GPRS01, allows our clients who rely on a fleet of

Vehicles to transport their goods or clients with valuable moveable assets, to monitor

Their assets thus minimizing the risks associated with their investments, increasing

Efficiency and productivity, and minimizing logistics and manpower costs. Real-time

Information can help with effective decision making, thus improving your company's

Performance and reducing overall costs.

We currently serve over 100 major customers and our clients come from various

Industries with unique demands or operational requirements. We can customise our

System to cater to our client's needs. In our ever-growing network of connected

Devices, our fleet can be monitored from anywhere with our mobile applications. Our

Services cover Hong Kong, China and cross border fleets.

Professional Consulting Services

With years of service experience, we have built up a good reputation and a strong

Professional team to provide strategic solutions and technical advice in fleet

Management. We work closely with all our clients to define their problems and

Expectations and tailor the best solution to solve their fleet management problems.

Our role is more than a technology provider who is assisting you to drive your

Business to be more profitable and competitive.

Customer Integration Services

Our team will support you as you work to integrate the GPRS01 system into your

Operations. We provide complete servicing from the installation to the maintenance of

Each tracking unit. A member of our customer support team will help coordinate the

Times and location for unit installation and demo/training times at your convenience,

While you, our client, can concentrate on managing your business.

On-Site Training Services

Once we have installed our units in your fleets, a training session will be arranged to

Familiarize all necessary parties with the software. We also provide a customer service

Help desk to assist you should you have any further questions. Our strong customer

Service team will ensure you understand the system and can put it to good use.

Customer Care Services

Customer satisfaction is a critical element for us. We care about our clients' needs,

Ideas and opinions. We make sure our products and services satisfy or exceed our

Client's expectations.
