Mini Hall Effect Sensor (A-K3 series) Hall Effect Transducer

Name: Mini Hall Effect Sensor (A-K3 series) Hall Effect Transducer
Brand: all-electronics-online.com
SKU: 693994375
Availability: InStock
Rating: 4.4 (146 reviews)

Price:	US $ 5.6-7.0/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	A-K3 series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output:	Analog Sensor
Usage:	Hall Sensor
Theory:	Hall Sensor
Supply Voltage:	+-12,+-15
Power Consumption:	25 V
Offset Voltage:	@IP=0 +-30
Response Time:	<=200
Galvanic Isolation:	@ 50Hz,AC,1min 2.5
Bandwidth:	20~20000
Courier:	DHL, TNT, FedEx
Material:	Mixture

Product Description

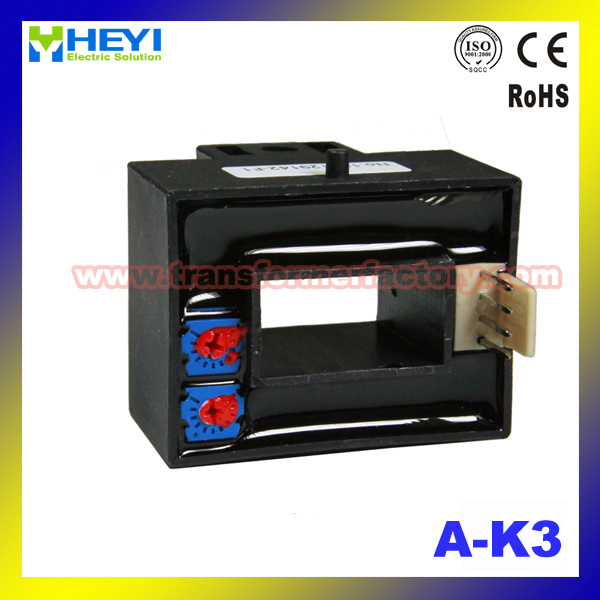

A-K3 series hall effect current Transmitter is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of AC or pulsed currents.

Electrical data (Ta=25ºC±5ºC)

Type	A-K3- 30A	A-K3- 50A	A-K3- 100A	A-K3- 200A	A-K3- 300A	A-K3- 400A	Unit
Rated current(Ipn AC)	30	50	100	200	300	400	A
Measure range(Ip AC)	0-60	0-100	0-200	0-400	0-600	0-600	A
Rated output(Vo DC)	@Ip=±Ipn AC 5±1%						V
Supply voltage	±12,±15						V
Power Consumption	25						mA
Offset voltage	@Ip=0 ±30						mV
Offset drift	@ -40~+85ºC ≤±1						mV /ºC
Output drift	@ -40~+85ºC ≤±1						mA /ºC
Linearity	@Ip=0-±Ipn ≤1						%FS
Response time	≤200						ms
Galvanic isolation	@ 50HZ,AC,1min 2.5						KV
Bandwidth	20~20000						HZ

Applications

·Variable speed drives
·Welding machine
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
· Electrochemical

1. All dimensions are in mm.
2. General tolerance ±1mm.
3. Elucidation: 1:+15V 2: -15V 3:V0UT 4:0V

Directions for use

1. When the current will be measured goes through a transmitter, the voltage will be measured at the output end. (Note: The false wiring may result in the damage of the transmitter)
2. Customs can adjust output amplitude of the transmitter by needs.
3. Custom design in the different rated input current and the output voltage are available.

Standards

·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000

General date

	Value	Unit
Operating temperature (TA)	-40 to +85	ºC
Storage temperature(TS)	-40 to +125	ºC
Mass(approx) (M)	55	g
