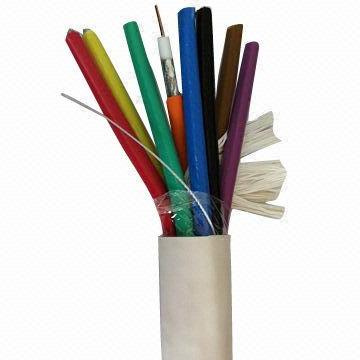

Mini Multi-Cores Bundled Coaxial Cables UL Standard

Mini Multi-Cores Bundled Coaxial Cables UL Standard
Price: Negotiablekm
Min Order: 10km
Pay Type: L/C,T/T
Prod Model: Coaxial Cable
Cable Type: Coaxial Cable
Cable Cores: 5-12 Cores
Jacket Material: PVC, Cmr
Jacket Color: All Colors
Application: Coaxial Cable
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Cover Material: PVC
Certification: RoHS

Product Description

Cable specification

Center conductor: 23AWG bare copper
Diameter: 0.577mm ±0.01mm (0.0227 inches)
Dielectric: gas injected foam polyethylene
Diameter over dielectric: 2.59mm ±0.1mm (0.102 inch)

Shields:
1st shield: dual faced, aluminum laminated tape bonded to the dielectric
2nd shield: tinned copper wire, 7 x 16 x 0.127mm, 95% coverage
3rd shield: dual-faced, aluminum laminated tape
4th shield: tinned copper wire, 8 x 16 x 0.127mm, 95% coverage

Jacket:
Material: PVC
Diameter over jacket: 4.77mm±0.13mm (0.1878 inch)
Colors: brown, orange, gray, black, violet (no printing on inner jackets)
Cabling: 5 cables, paper tape binder, PVC filler and rip cord
Lay length: 260mm

Jacket:
Material: matte PVC and CMR
Diameter over jacket: 16.5mm±0.80mm
Color:  as requirements

Electrical Properties:

Impedance: 75Ohm+/-3Ohm
Nominal Velocity of Propagation: 83%
Nominal Structure Return Loss: 5MHz~3000MHz≥20dB

              Nominal Attenuation @ 68F(20C):
FrequencydB/100feet (Max)dB/100meters (Max)
5MHz1.003.28
55MHz2.829.25
211MHz5.3017.38
350MHz6.7522.14
400MHz7.2523.78
450MHz7.7025.49
500MHz8.1126.60
550MHz8.5428.01
600MHz8.9229.26
750MHz10.0132.83
870MHz10.7935.39
1000MHz11.6238.11
1500MHz15.2349.95
2000MHz18.3860.29
2250MHz19.5364.06
3000MHz22.7974.75





Wanma is a professional cable manufacture located in Lin'an, Zhejiang Province, an ancient Chinese city.Since its establishment in 1989, Wanma has devoted over 20 years in constantly research, investigation, and improvement in not only our products, but also management philosophies and technical abilities.Thus allowing us to achieve rapid progress in the field of cable manufacturing industry, and also becoming a trusted OEM and ODM supplier to a number of well-known Fortunes 500 enterprises and many famous CATV, satellite system operators across the world.

Our major products include RG series cable, HDMI, USB2.0&3.0, A/V and Fiber Optic cables.Our annual output includes 700, 000 km of coaxial cables and 20 million pieces of related cable assemblies.Along with the development of cable products, we've also paid great attention to vertical integration of the supply chain;We set up our own individual plant for PVC and Aluminum foil.

Utmost quality is our constantly seeking and demand, we have accurate testing device for high frequency electrical performance, and a full set of testing equipments complying with UL's strict requirements.We passed through ISO 9002 quality system acceptance in 1999, acceptance to UL's safety specification as well as CSA nominated products in 2002.We became HDMI adopter and passed HDMI Compliance Test in 2010.In addition, we have passed GE and Thomson's quality management audit.

We are determined to assume the responsibility for the protection of our environment and society.We passed the SGS ethics acceptance in 2005, ISO 14000 acceptance in 2006, Wal-Mart EHS audit in 2012.Our products completely conform to the requirements of RoHS guidance.

We are always ready for your professional inquiry.
