| Prod Model: |
CY-KCT01A-009 |
| Type: |
Outdoor Split Core Current Transformer |
| Installation: |
Busbar Type |
| Magnetic Circuit Structure: |
Single Stage Type |
| Frequency: |
50 Hz/60 Hz |
| Ce Recognized, And RoHS Compliant: |
Yes |
| Outdoor Type: |
with Rubber Cover |
| Application: |
Rectifier |
| Phase: |
Single |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Usage: |
Measurement |
| Brand: |
Chuangyin |
| Coil: |
with Rubber Cover |
Product Description

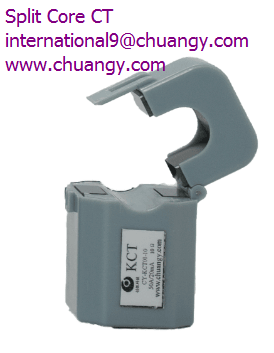

The"KCT01A Split Core Current Transformers"are designed for easy installed without the need for dismantling the primarybusbar or cables. They output 5A or 1A standard secondary currents which candirectly match the input terminals of electric energy meter and measure andcontrol instruments in power system. They are applied to electric measure andcontrol equipments like power electric energy meter, switch cabinet , controlcabinet, etc.
Features:
.Small size , light weights andexquisite appearance
.Easily install, no need todisconnect primary busbar
.With over-voltage protection inopen circuit
Applications:
.Electric energy meter
.Switch cabinet
.Smart grid
.Power measurement and system
Items for attention:
.The iron core binding surface has to be water proof.
.the iron core surface needs to be polishedto remove the rust and coated with rust-proof grease when the core surfacerusted.
.Keep clean and without debris on core binding surface
Model Code:
Technical Specification
| Highest voltgage for equipment | Max.720V |
| Power-frepuency withstand voltage | 3kV-60s |
Rated primary current | 75-600A |
| Rated secondary current | 5A or 1A |
| Frequency | 50/60Hz |
| Accuracy class | UP to 0.5 |
| Continuous thermal current | 1.2 Ipn |
| Shell | Flame retardant grade classified UL 94V-0 |
| Insulation class | CLASS E |
| Safety insulation | EN61010-1 CAT III 600v |
| Ambient temperature | -20ºC+55ºC |
| Standards | IEC/EN60044-1,GB1208,IEEEC57.13 |
Dimension
Data
Model number | A | B | C | D | E | ∅d |
| CY-KC101A-16 | 44 | 31 | 29 | 31 | 19 | 16 |
| CY-KCT01A-24 | 75 | 50 | 45 | 35 | 19.5 | 24 |
| CY-KCT01A-36 | 91.6 | 62 | 57.4 | 40.9 | 22.8 | 36 |
Electrical Parameter:
Data
Model Number | Rated primary current(A) | Rated secondary current(A) | Burden (VA) |
| CL0.5 | CL1 | CL3 |
| CY-KCT01A-16 | 75 | 1 | | | 0.25 |
| 100 | 1 | | | 0.5 |
| 150 | 1 | | | 1.0 |
| 200 | 1 | | | 1.0 |
| CY-KCT01A-24 | 100 | 1 | | | 1 |
| 150 | 1 | | | 1 |
| 200 | 1 | | | 1.5 |
| 300 | 1 | | 1.0 | |
| 400 | 1 | | 1.5 | |
| CY-KCT01A-36 | 200 | 1 | | | |
| 300 | 1 | | 1.5 | |
| 400 | 1 | | 2.5 | |
| 500 | 1 | | | |
| 600 | 1 | | | |
| | | | | | | |
Data
Model Number | Rated primary current(A) | Rated secondary current(A) | Burden (VA) |
| CL0.5 | CL1 | CL3 |
| CY-KCT01A-16 | 150 | 5 | | | 1 |
| CY-KCT01A-24 | 100 | 5 | | | 1 |
| 150 | 5 | | | 1 |
| 200 | 5 | | | 1.5 |
| 300 | 5 | | 0.5 | |
| 400 | 5 | | 0.5 | |
| CY-KCT01A-36 | 200 | 5 | | | 2.5 |
| 300 | 5 | | 0.5 | |
| 400 | 5 | | 2.5 | |
| 500 | 5 | 0.5 | 2.5 | |
| 600 | 5 | 0.5 | 5.0 | |
| | | | | | | |
Note:
Please browse our website and download product catalogue for detailed information.
