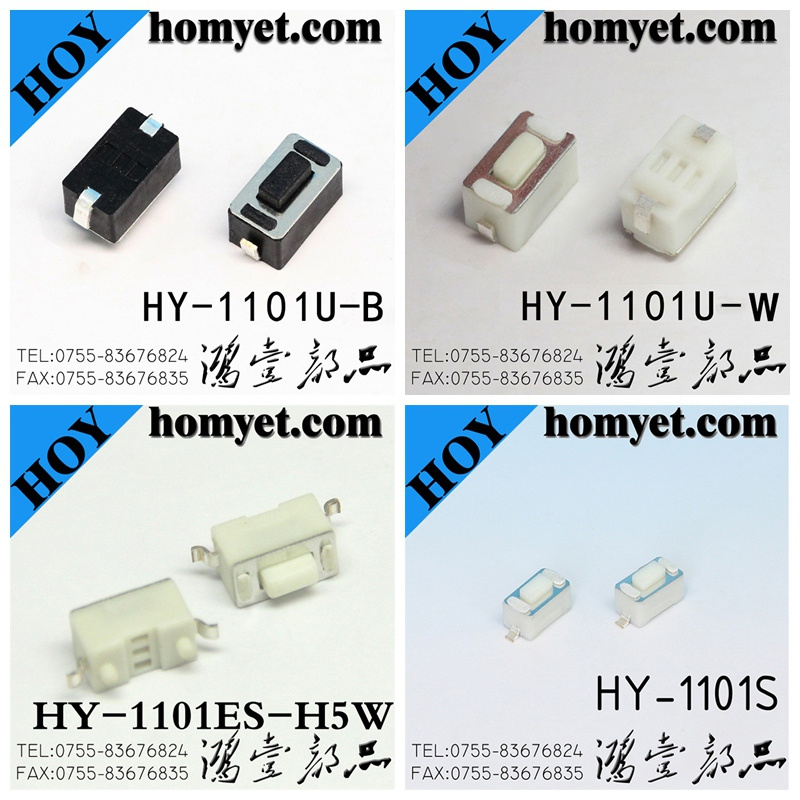

Mini Patch Type 2pin SMD Tactile Switch/Momentary Contact Switch

Prod Model:	HY-1101U
Color:	White/Black
Type:	SMD Type
Installation Form:	Surface Mount
Structure:	2-Point Contact
Package:	SMT Chip Package
Shape:	Rectangular
Shrapnel:	Gold-Plated
Certification:	RoHS
Application:	Electronic and Electrical Equipment

Product Description

Mini 2Pin 3X6 SMD Tact Switch Push Button Taping Switch(HY-1101S)
-----Good Performance&Long life&Install easily
Customizing the height&operating force&Button shape

Material
1. Deystoke: Nylon/PBT Black
2. Base: Nylon/PBT
3. Contact: Copper-Silver Composite
4. Shell: IRON Tin-plated
5. Terminal: Brass Plating silver

Specification:
They can operate all types of electronic equipment such as the computer, telephone, PDA, DVD digital camera, audio equipment, instrument and meter equipment, autoimmunization equipments control etc.

Rating	DC 12V 50mA Max
Temperature	-25'C-85'C
Operating Force	160gf, 250gf
Contact Resistance	100mΩ Max
Travel	0.25+-0.1mm
Life	50,000 cycles Min

Welding conditions
1. Hand soldering
Use a soldering iron of 30 watts, controlled at 350º C approximately 3 seconds while solder applying
2. Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260º C max. Condition for soldering temperature profile

Packing&Shipping:
1) Packaging: Carton
2) Shipping:
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms: T/T, L/C, PayPal; 20% deposits; 80% balance before delivery
