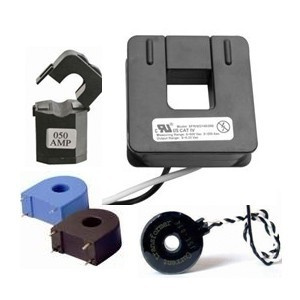

Mini PCB Mount Current Transformer (WCT)

Name: Mini PCB Mount Current Transformer (WCT)
Brand: all-electronics-online.com
SKU: 729789665
Availability: InStock
Rating: 4.5 (99 reviews)

Price:	US $ 0.2-0.5/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	WCT)
Color:	Black
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

Product Description
Features
Low cost. Low profile for PCB mounting
High accuracy, wide linear range, low phase shift error
Burn-resistant case and filler

Specifications
Accuracy Class: 0.1
Dielectric strength: 2500V/min
Dielectric Resistance: 1000M Ohms @ 500 VDC
Working frequency 50-400Hz
Ambient temperature: -25degrees~+85degrees
RoHS Compliant
CE-approved
Customer specifications are available

Application
Electronic energy meter, power transducer, precision power meter and other power and energy monitoring devices
Over current protection circuit of motor and other electrical appliances.

model	input (A)	output(mA))	resistance (Ω )	Linear range	accuracy (%)	size(mm)
model	input (A)	output(mA))	resistance (Ω )	Linear range	accuracy (%)	A	B	C	D	E	F
WCT 202\ CC	10	5	10	2	± 0.1 ± 0.2	18	19.2	9.8	5.1	12	--
WCT 102\ CA	10	10	10	3		18.9	20	10.1	5.4	15.2	6.4
WCT 172\ CA	5	3	83	4
WCT 202\ CA	5	2.5	20	5
WCT 401\ CA	1	2.5	10	2
WCT 252\ CA	5	2	30	6
WCT 202\ CB	10	5	51	4		23.4	25	11.5	7.2	18	8
WCT 252\ CB	5	2	100	6
WCT 202\ CB	5	2.5	40	8
WCT 252\ CE	5	2	50	12		31	31	18	8.4	24	13
