Mini Personal GPS Tracker PT30 Go Everywhere GPS Personal Tracker

Mini Personal GPS Tracker PT30 Go Everywhere GPS Personal Tracker
Price: US $ 42-49/Set
Trade Terms: FOB,CIF,EXW
Min Order: 1/Set
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: Personal GPS Tracker PT30
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
GPS Module: Sirf3
GPS Sensitivity: -159dBm
GSM Module: Quectel M35
GSM Frequency: 4 Band
Use: Hand Held
Chip: Sirf
Operating Principle: Tracking
Screen Size: No Screen

Product Description

PT30 is a personal remote position device, small size, build-in battery, easy to use. PT30 can be used as an emergency cellular phone and locator. It allows speed dialing of 3 numbers for 2-way voice conversation. PT30 sends alert and call the pre-defined number for immediate assistance. It is suitable for the care&protection&rescue of the elderly, children, patients, wild area explorer, tourists or pets etc. PT30 has good sensitivity and stable performance, tracking by web-based platform or by SMS commands.


Main Features:
1. Small size, built-in antenna, easy carry and hide
2. Quick dial button for 3 calls, talking as a mobilephone
3. Very low power consumption, continous working longer than 24hours, standby time more than 7 days!
4. Tracking via SMS or GPRS(TCP/UDP)
5. Real time GPS locating;
6. Set automatic tracking by distance or time interval
7. Get actual location name via SMS or internet
8. Get position GoogleMap link via SMS
9. SOS panic button
10. Geo-fence control, over speed alert
11. Built-in motion sensor for power saving
12. Mileage report
13. No installation, small and easy to carry


Applications:
For the care&protection&rescue of the elderly, children, patients, wild area explorer, tourists or pets etc.

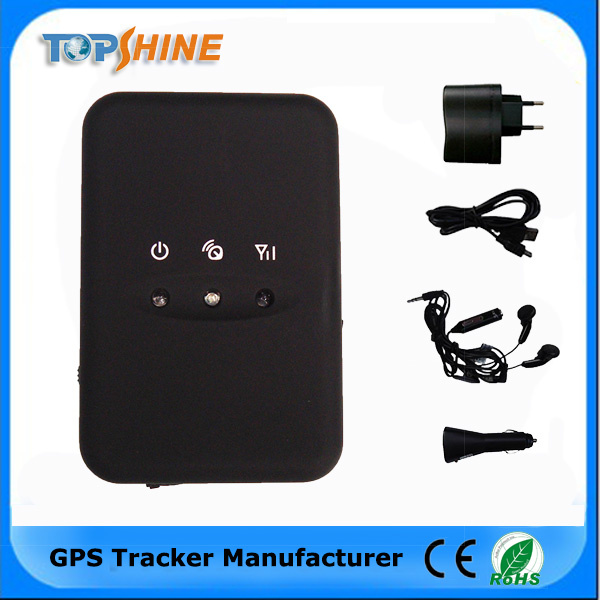

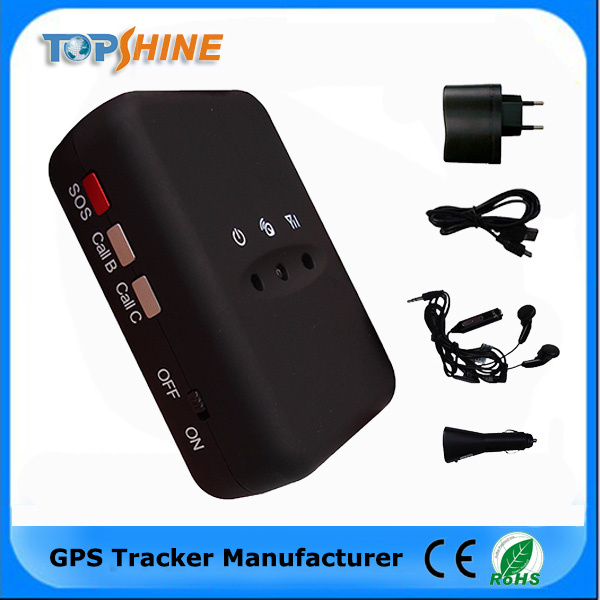

Complete Set:

Standard Package:


ItemsSpecifications
Dimension77*51*25mm
Weight96g
ChargingVoltage DC 4.5V~5.5V/850mA(Mini USB port)
Power
consumption
Active mode(peak) < 1.0A
Active mode(avg.) < 300mA


Operating
Temperature
-30~+75 Celsius degree
HumidityUp to 75% non-condensing
External AntennaConnected via 50 ohm coax connector
  External SIM CardConnected via SIM card connector
Button1SOS and 1poweron/off
MicrophoneOptional
Transmit PowerClass 4(2W) for E-GSM 900 and 850
Class 1(1W) for DCS 1800
Class 1(1W) for PCS 1900


Sensitivity-104dBm minimum for E-GSM 900 AND 850
-102dBm minimum for DCS 1800
-102dBm minimum for PCS 1900
GPSChipLatestGPSSIRF-StarIIIchipset
GPRSMulti-slot Class 8(4Rx, 1Tx., 5slot Max.)
Support all 4 coding schemes(CS-1,CS-2,CS-3 and CS-4)
Maximum download speed is 85.6kbps
Maximum upload speed is 21.4kbps


Speech CodecTriple rate Codec
Half rate_ETS 06.20
Full rate_ETS 06.10
Enhance full rate_ETS 06.50/06.06/06.08

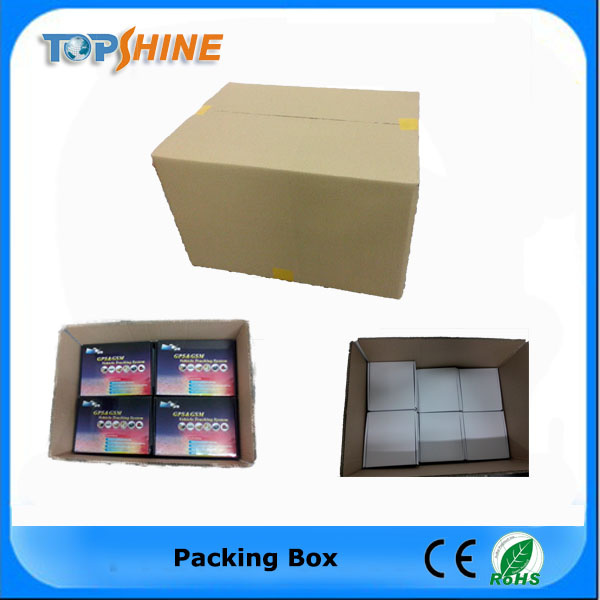

Packing Measures:
NeutralDimension (mm)Weight (KG)Capacity
Box165x155x500.251 set
Carton470x340x310930 sets











Guangzhou Topshine Electronic Technology Co., Ltd. is a China leader manufacturer of superior Global Positioning System (GPS) tracking solutions and innovative integrated wireless communication equipments.

Since 1999, Topshine designs, develops, and manufactures high quality GPS tracking products, including location based and personal tracking systems for the vehicle, insurance, logistics and marine markets etc.

With experienced R&D team, excellent sales team and user-friendly software platform, we can promptly provide customized products, solutions and technical support and services, which helps us build a high reputation in the industry and among our customers all over the world. 90% of our products are for export. Our duty is to deliver the right product at the best price to meet your requirements. We try to exceed the expectations of every client by offering outstanding products backed up with effective and professional customer services and support.

TOPSHINE provides a proprietary system to help clients manage their fleet and asset.

Our proprietary software, Platform GPRS01, allows our clients who rely on a fleet of

Vehicles to transport their goods or clients with valuable moveable assets, to monitor

Their assets thus minimizing the risks associated with their investments, increasing

Efficiency and productivity, and minimizing logistics and manpower costs. Real-time

Information can help with effective decision making, thus improving your company's

Performance and reducing overall costs.

We currently serve over 100 major customers and our clients come from various

Industries with unique demands or operational requirements. We can customise our

System to cater to our client's needs. In our ever-growing network of connected

Devices, our fleet can be monitored from anywhere with our mobile applications. Our

Services cover Hong Kong, China and cross border fleets.

Professional Consulting Services

With years of service experience, we have built up a good reputation and a strong

Professional team to provide strategic solutions and technical advice in fleet

Management. We work closely with all our clients to define their problems and

Expectations and tailor the best solution to solve their fleet management problems.

Our role is more than a technology provider who is assisting you to drive your

Business to be more profitable and competitive.

Customer Integration Services

Our team will support you as you work to integrate the GPRS01 system into your

Operations. We provide complete servicing from the installation to the maintenance of

Each tracking unit. A member of our customer support team will help coordinate the

Times and location for unit installation and demo/training times at your convenience,

While you, our client, can concentrate on managing your business.

On-Site Training Services

Once we have installed our units in your fleets, a training session will be arranged to

Familiarize all necessary parties with the software. We also provide a customer service

Help desk to assist you should you have any further questions. Our strong customer

Service team will ensure you understand the system and can put it to good use.

Customer Care Services

Customer satisfaction is a critical element for us. We care about our clients' needs,

Ideas and opinions. We make sure our products and services satisfy or exceed our

Client's expectations.
