Mini Personal GPS Tracker with Real Time Tracking (A9)
| Price: |
US $ 24-25/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
A9 |
| Positioning: |
GPS+WiFi+Lbs |
| Battery Capacity: |
450mAh |
| Working Time: |
2-3days |
| Chipset: |
Mtk2503 |
| GPS Chip: |
Mtk3327 |
| Sos Emergency Call: |
Support |
| Software: |
Android 2.3 and Above, Ios 5.0 and Above |
| SIM Card Slot: |
Micro SIM Card Slot |
| GSM Antenna: |
FPC Antenna |
| Colors: |
Green, White, Red |
Product Description
Main Features:
1. Delicate appearance pendant.
2. GPS + WIFI + LBS multimode precise.
3. positioning, static dormancy save.
4. electricity design, real-time positioning, intelligent monitoring.
Production Details:

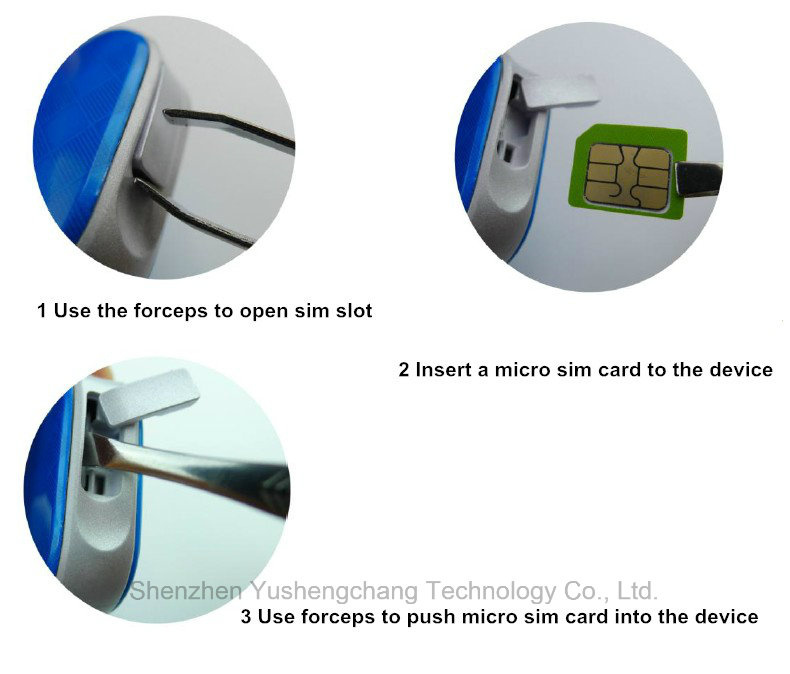

How to install SIM card?

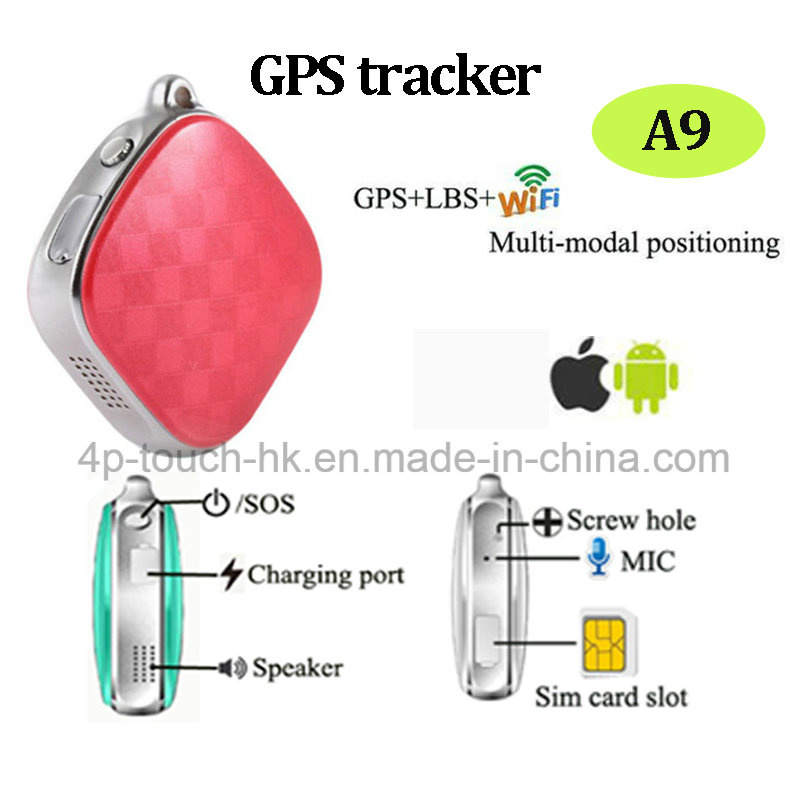

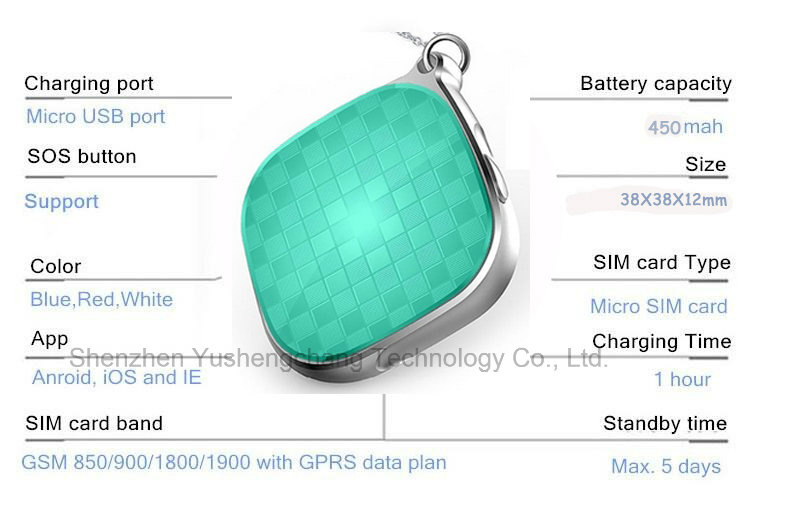

1. structure division |
structure
parts | Category | Specification |
| ID design | delicacy and smart |
| Whole machine size | 38X38X12mm |
| color | pink/green/white |
| button | one button(power/SOS button) |
| weight | 22g without package, 130g with package box |
| GPS antenna | High sensitive ceramics active antenna |
| GSM antenna | FPC antenna |
| Battery | 450mAh |
| SIM card slot | 1pc |
| G-sensor | Support |
| I/O port | USB charge |
Hardware
parts | CPU | MTK2503 |
| CPU chip | MTK3337 |
| GPRS | Class12 |
| GPS signal | L1,1575.42MHz C/A |
| GPS channel number | 22 channels |
| GPS chip receive | Tracking sensitivity:-165dBm,capture sensitivity:-148dBm |
| GPS location accuracy | 5~15M |
| LBS location accuracy | 100-1000M |
| Minimum standby current | less than 0.5 mA |
| Average standby current | less than 2.5 mA |
| Average working current | around 55mA |
| Working temperature | -20~70ºC |
| Working humidity | 5% to 95% non-congealable |
| Test and certification | can approval by 3C,CE&ROSH |
| GPS antenna | Built-in high sensitivity FPC antenna |
| GSM antenna | Built-in four frequency method of antenna |
| bluetooth | bluetooth 3.0(Normal closed) |
| G-sensor | Support |
| MIC | Support |
software
parts | supported operating | Support android 2.3 and above system, IOS5.0 and above. |
| call function | double talk/The remote monitoring |
| Language support | Simplified Chinese and English |
| Compatible with support for multi-languages |
| GSM+GPRS+GPS | GPS+LBS+WIFI Multi-modal positioning |
| support AGPS | Cold start 26 seconds positioning |
| call function | SOS call, voice monitor, whitelist for don't disturb |
| power management | Ultra-low power consumption of power management,intelligent dormancy |
| One key emergency | SOS one key emergency function ,autodialing |
| Smart Geo-fence | Outside the range setting can be automatic alarm |
| historical route | Can check history of three months |
| wireless upgrading | Software upgrade, remote debugging maintenance, remote setting
parameters |
FAQ

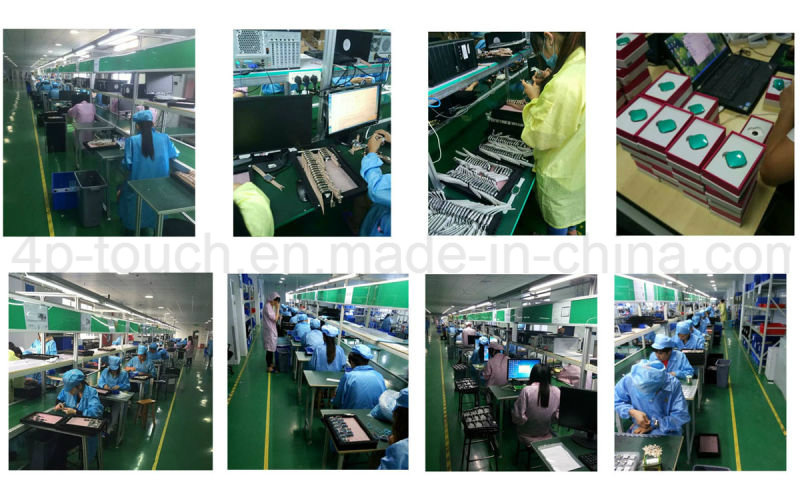

production line:
*What's the MOQ and lead time?
For our existing mold items, normally we don't have strict MOQ, samples or trial order is available.
Our sample lead time 2-3days, our production lead time is 10-15days, which also based on the order quantity.
*Can I brand the items with our own logo/Brand?
Yes, we do provide OEM & ODM service.
*What's the payment terms you accept?
Our payment term: T/T(30% down payment, 70% balance before shipment),
for small batch orders, normally we accept Paypal payment, for bulk order we have HK HSBC account or Western Union account.
*How long do you offer for your product warranty?
Our product warranty is 12 months, except artificially damaged or improper operation;
*How can I get a sample to check quality?
Please just forward me the sample order summary (include the exact item number, preferred colors, sample quantity), then I will make the sample PI for your approval, after received your payment through Paypal, I will send out the sample to you
*When can I get the prices?
Within 12 hours after we received your inquiries.
*How about the shipping?
For sample dispatch, we normally send through International Courier door to door(such as DHL, FedEx, UPS, TNT etc.),for bulk order, we normally ship by air or by sea, based on clients requirement. we will offer the most reasonable way for our clients.
