| Prod Model: |
GPT06 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
70g |
| GSM Frequency: |
850/900/1800/1900MHz |
| Working Voltage: |
3.7VDC |
| Dimension(mm): |
79.3(L)X51.9(W)X17.6(H) |
| Battery Capacity: |
1800mAh |
| GPS Positioning: |
5-15m |
| Operating Humidity: |
20%~80%Rh |
| GPS Frequency: |
1575MHz |
Product Description

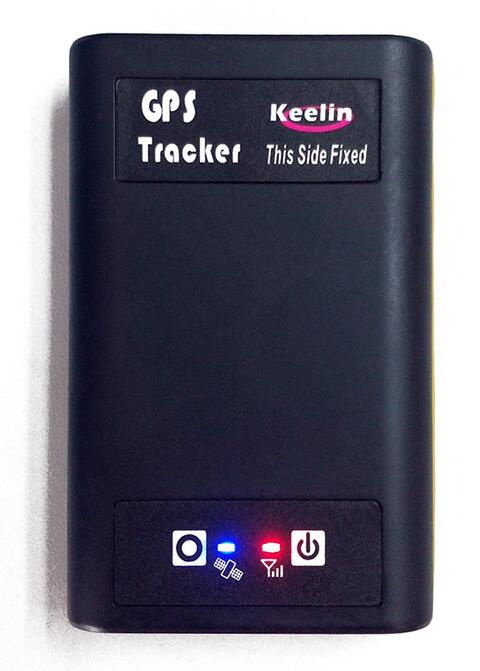

Mini Portable Real Time Personal and Vehicle GPS Tracker
GPT06 portable GPS Tracker has a wide range of industrial and commercial applications, built-in high-capacity battery, bright LED flashlight, splashing waterproof, It can be widely used in:
PersonalTracking, Kids Tracking, Aged Tracking
Pet Tracking
Assets Tracking
Vehicle Tracking
Fleet Management
GPS Tracker Operating Principle
There installed Satellite Receiver module and mobile phone module. GPS precise positioning with A-GPS and feedback position to the platform via GPRS at setting times(e. G. Every 30s). It shows the precise position of the device on the map of platform. We need GPRS to transmit data, so the mobile phone with SIM card need the GPRS function.
Product Features*Supports quad bands, i. E. 850/900/1800/1900MHz, universal in the world.
*Double Module, GPS & LBS positioning.
*GPS precise positioning with A-GPS and uploaded by GPRS regularly, Supports real-time tracking and history track playback.
*Web browser platform, Smart phone APP platform and SMS query.
*Supports multiple alarm, Built-in acceleration sensor with vibration, collision and falling alarm.
*GEO-Fence alarm.
*Built-in high-capacity lithium battery, low battery alarm.
*Built-highlight LED, can be used as a flashlight
*Multiple protocol support, OTA upgrade program.
*Waterproof and dustproof
*Vehicle/ individual /pet are applicable
Alarm TypeVibration Alarm
Collision / falling Alarm
Speed Alarm
Geo-fence Alarm
Low battery Alarm
| Base Specification |
| GPS positioning accuracy | 5-15m (Depend GPS signal) |
| GSM positioning accuracy | 100-1000 m
(Depending on density of base stations) |
| GPS Frequency | 1575MHz |
GSM Frequency
WCDMA Frequency | 850/900/1800/1900MHz
W850/W1900/W2100MHz |
| Hot/warm/cold start time | <3s,<15s,<60s |
| Battery capacity | 1800mAh |
| Dimensions (mm) | 79.3(L)X51.9(W)X17.6(H) |
| Operating temperature | -20~70ºC |
| Operating humidity | 20%~80%RH |
| Weight | 70g |

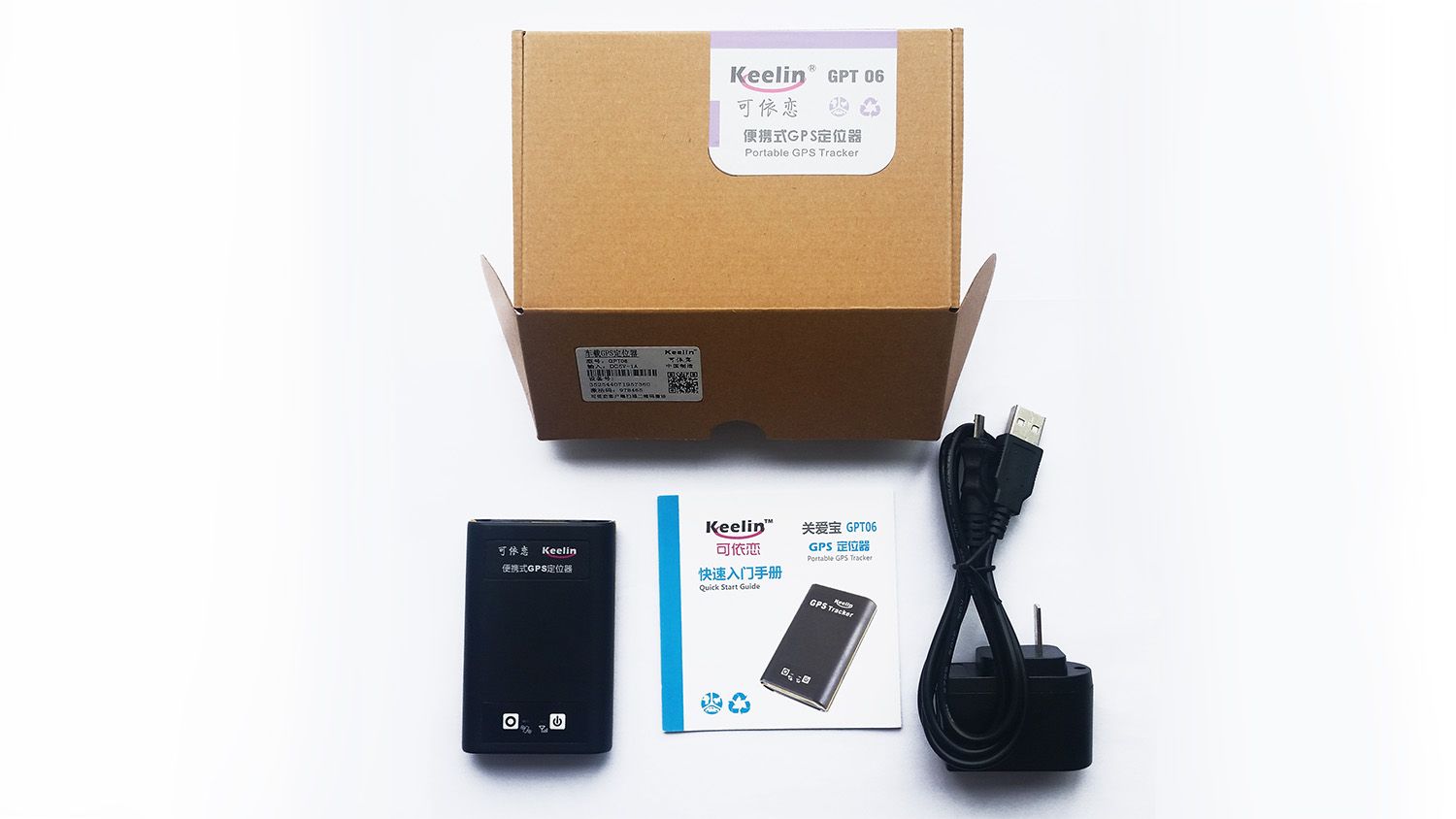

Complete component for GPT06 packaging,includes GPT06 device,charger,USB cable,manual,cloth bag. shown in photo.

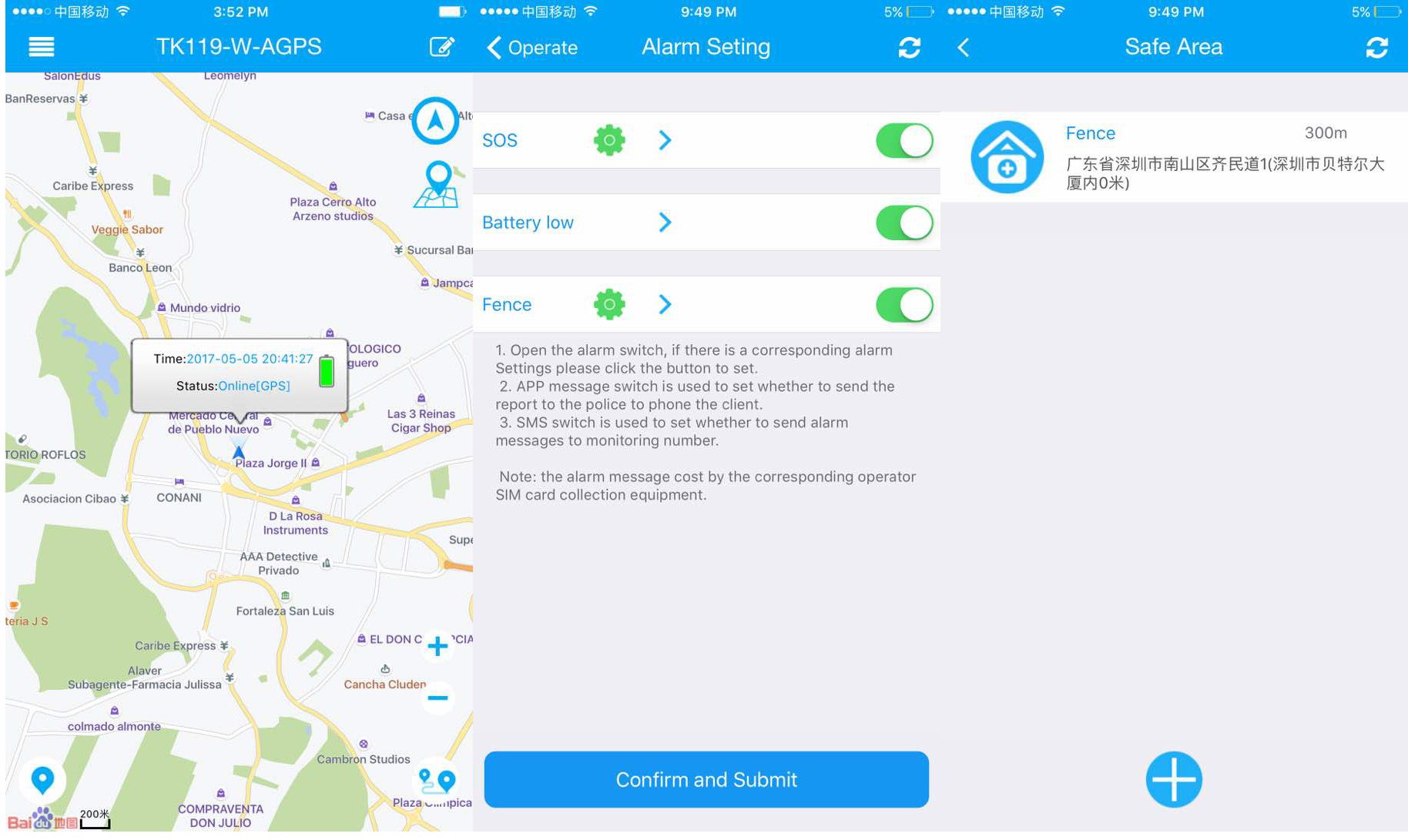

PlatformYou can choose Keelin terminal monitoring platform or not. It is designed by EELINK, we can position, playback the location of vehicles/Individuals/Employee/Assets/Valuables on the platform server.
DeliveryDHL/Fedex/UPS/TNT/EMS etc airexpress are optional, we can send goods as the requirement of client.1. Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
2. For order over 500pcs or customized order, please contact our sales to make sure the current inventory.
Our manufacturing capacity is 1,200,000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.
Warranty1.All products have been strictly Quality Checked in house before packing.
2.All products have been well packed before shipping.
3.One year warranty is provided for all models. We will bear maintenance cost during warranty.
OEM&ODM Service
1.Customize logo and brand print on the device,MOQ is 1000pcs.
2.Customize the tracker for special functions, MOQ is 3000pcs.
3.Offer software customization service,such as communication protocol.
Factory ProfileWe have more than 50 professional engineers in R&D department which can truly understand your specific needs and complete different clients' requirements in terms of new designs, high quality and large production. Meanwhile we have a team of well-trained workers, advanced management system, complete QC and QA systems as well as strict testing methods.
Shenzhen Eelink Communication Co. Ltd was founded in June 2004 aiming at technology Innovative. After 10 years development, we accumulate more and more experienced experts and senior engineers specializing in Internet Platform/APP/GPS trackers. Now we have a professional technology team engaged in software, hardware and industrial design, totally more than 50 engineers. This professional team guarantee technology advancement for Eelink products. Meanwhile we have advanced management system, complete QC and QA systems as well as strict testing methods to guarantee high quality.
Shenzhen Eelink Communication Co. Ltd can provide: GPRS+GPS tracker, WCDMA+GPS tracker, GPRS+Beidou tracker, Plug-in and play OBD vehicle tracker, Plug-in and play OBD diagnostics vehicle tracker, intelligent terminal for real time temperature and humidity checking. Our products are widely used in positioning and tracking vehicle, personal, pet and assets. This will realize the management for vehicle, person and cargo meanwhile the complete care for the elder and child. Eelink can truly understand your specific needs and complete different clients' Requirements in terms of new designs, high quality and large production, you will also enjoy the service of internet platform and smart phone APP for your GPS tracker.
We hold the faith to meet every customer' S needs to gain 100% customer satisfaction on quality products and after-sale service.
