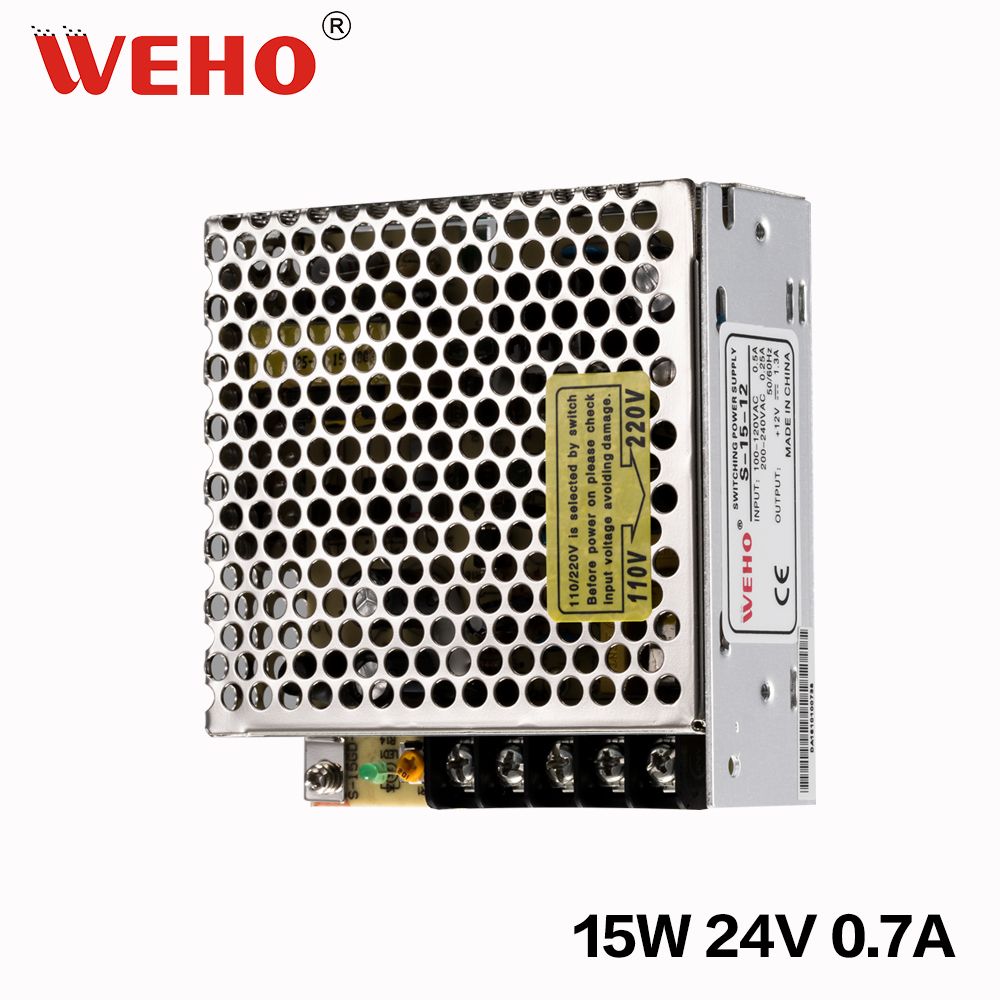

Mini Power AC / DC 15W 24V Switching Power Supply

Name: Mini Power AC / DC 15W 24V Switching Power Supply
Brand: all-electronics-online.com
SKU: 832197855
Availability: InStock
Rating: 4.4 (86 reviews)

Price:	US $ 3.6-4.6/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	S-15-24
Output Current:	0.6A
Type:	Constant Voltage
Test:	100% Full Load Burn-in Test
Material:	Aluminum Case
Output Frenquency:	47~63Hz
Weight:	0.31kg
MOQ:	1-5PCS
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	PSE
Input Voltage:	110V/220V
Brand:	Weho

Product Description

15W 24V DC Switching Power Supply

Features:

1. DC Output 5v 12v 24v

2. AC input range selectable by switch

3. Protections: Short circuit / Overload / Over voltage / Over temperature

4. 100% full load burn-in test

5. Low cost, high reliability

6. 24 months warranty

Specifications:

Model	S-15-5	S-15-12	S-15-24	S-15-48
DC voltage	5V	12V	24V	48V
Rated output current	3A	1.3A	0.6A	0.3A
Output current range	0~3A	0-1.3A	0-0.6A	0-0.3A
DC power	15W	15.6W	15W	15W
Voltage adj.range	+10,-5%	±10%	±10%	±10%
Voltage tolerance	±2%	±1%	±1%	±1%
Ripple and noise	50mVp-p	50mVp-p	100mVp-p	100mVp-p
Intet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stability	±0.1%	±0.5%	±0.5%	±0.5%
AC voltage range	85~132VAC/170~264VAC selected switch 47~63Hz
Current	0.5A/115V 0.25A/230VAC
Efficiency	78%	80%	82%	80%
AC Inrush current	15A/115V 30A/230V
Leakage current	<0.5mA/240VAC
Overload	105%~150% Type:pulsing hiccup shutdown Resete:auto recovery
Over-voltage	115%~135%
Over-voltage	5.75-6.75V	13.8-16.2V	27.6-32.4V	55.2-64.81V
High temperature	ERH3 ≥ 55°C Fan on,≤ 45°C Fan off,≥ 70°C,Cut down output (5~15V)
Setup rise hold up time	200ms,100ms,30ms
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Withstand voltage	Input and output interval,1.5KVAC,Input and enclosure,1.5KVAC, Output and enclosure,0.5KVAC
Isolation resistance	Input and output interval,Input and enclosure,Output and enclosure, 500VAC/100M Ohms
Temperature coeffi cient	±0.03%/°C (0~50°C )
Working temperature and humidity	-10°C~+60°C,20~90%RH
Store temperature and humidity	-20°C~+85°C,10~95%RH
Overall dimension	999735mm 60PCS/CARTON
Weight	0.31Kg

Our Workshop:

Packaging:

FAQ:

With 10 years OEM experience, we can provide professional solutions for customers. Send your Inquiry Details Now!!!

Zhejiang Weihao electronic Co., Ltd is located in "Chinese Electrical Capital"-Liushi Town, it is a high-tech enterprise, specializing in research, development and production of AC/DC DC/DC series switching power supply, adapter and AC stabilizer, frequency inverter, etc.

Our products are widely used in LED system, postal service, comunication system, power system, instrument and meter equipements, semiconductor refrigeration and heating system, medical equipments, monitorand automatic control system and railway system. etc. Our design is on basis of UL1012 TUVE60950, EMC LVD. VL1950, IEC950 and so on. The first-class imported components, advanced workmanshipand the consummation instruments achieved high quality products. All of them have past 100% high-temperature and full-load testing, the qualified rate can come to 99% and 3% repair rate.

We sticks to the principle of "Quality first Technology Advanced and providing ssatisfactory product and service " we also draw high attentionto demand of customers and provide high quality products.

The products are sold to oversesas market like America, Austrilia, Europe and MID-east etc.

Warmly welcome both of domestic and overseas customers to visit, negotiate and cooperate with us
