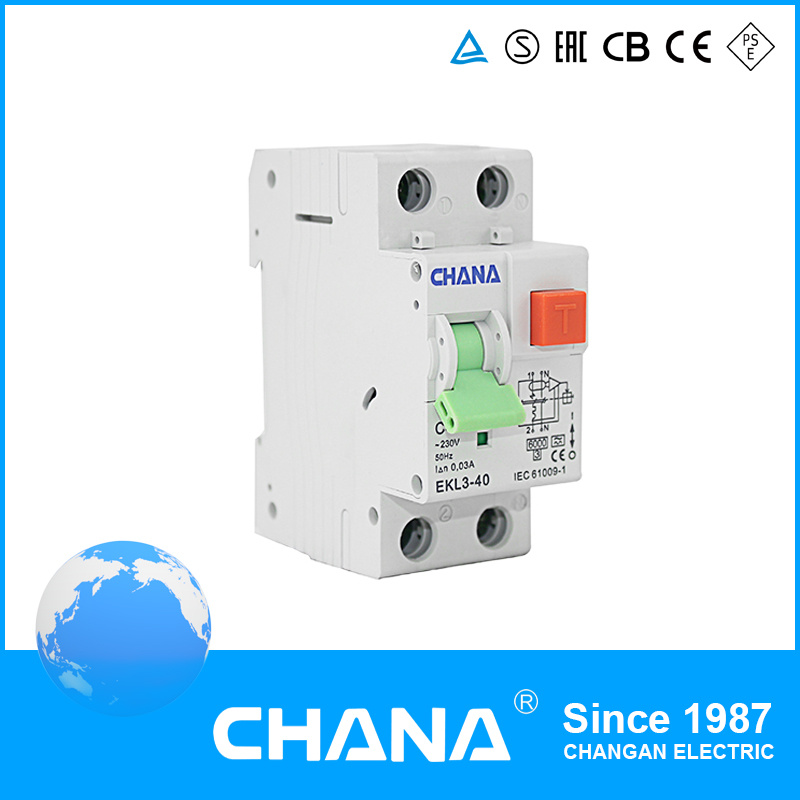

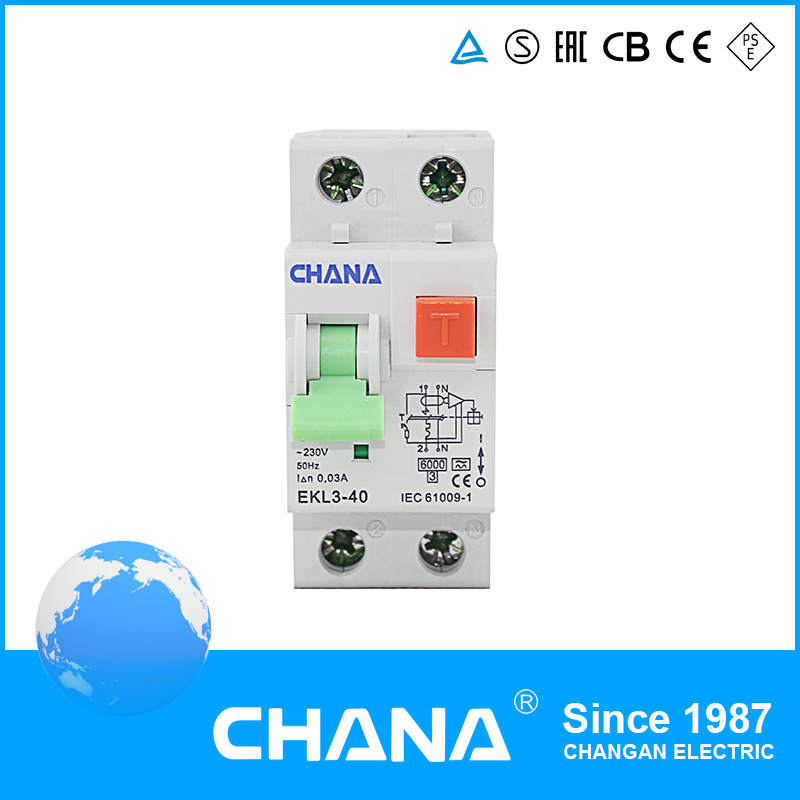

Mini RCBO 2p 4 Pole RCCB with Overcurrent Protection Circuit Breaker

Name: Mini RCBO 2p 4 Pole RCCB with Overcurrent Protection Circuit Breaker
Brand: all-electronics-online.com
SKU: 746292435
Availability: InStock
Rating: 5 (92 reviews)

Price:	US $ 6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	EKL3-40
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Frequency:	50/60Hz
Brand Name:	Chana
Packing Type:	Box
Export Market:	Global
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	ELCB
Poles Number:	2
Certification:	TUV

Product Description

Free samples can be provided!!!

Standard	IEC61009-1
Electrical Feature
Type(wave form of the earth leakage sensed)		AC, A
Thermo-magnetic release characteristic		B,C
Rated current In	A	25,40,50,63
Poles	P	1+N
Rated voltage Ue	V	230/240
Rated sensitivity	A	0.01,0.03,0.1,0.3
Insulation voltage Ui	V	300
Rated residual making and breaking capacity	A	500
Short-circuit current Inc	A	4500/6000
Break time under	S	≤0.1
Rated frequency	Hz	50/60
Rated impulse withstand voltage(1.2/50) Uimp	V	4000
Dielectric test voltage at ind. Freq. For 1 min	V	2000
Pollution degree		2
Mechanical Feature
Electrical life		2000
Mechanical life		2000
Contact position indicator		Yes
Protection degree		IP20
Ambient temperature (with daily average≤ 35º C)	º C	-5...+40
Storage temperation	º C	-25...+70
Installation
Terminal connection type	Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable	16mm2 18-5AWG
Terminal size top/bottom for busbar	16mm2 18-5AWG
Tightening torque	2.0 N*m 11 In-Ibs
Mounting	On DIN rail EN 60715 (35mm) by means of fast clip device
Connection	From top and bottom

How to Order?
1. Let us have the details of your requirements.
2. Price-list will be sent for confirmation.
3. After prices confirmed,PI will be sent for payment.
4. After get your Deposit,production will be arranged within one day.
5. When goods ready,all the documents for custom clearance will be scanned to you for the balance payment.
6. OEM/ODM is acceptable

Shipping:
1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

Payment:
1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable

Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
