Mini Rod Type Displacement Sensor Can Be Used Small Space

Name: Mini Rod Type Displacement Sensor Can Be Used Small Space
Brand: all-electronics-online.com
SKU: 820204075
Availability: InStock
Rating: 4.8 (43 reviews)

Price:	US $ 100-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KTM-300
Feature:	Volume Smaller&High Precision
Voltage:	42V
Working Stroke:	25-300mm
Name:	Mini Rod Displacement Sensor
Usage:	Displacement Linear Sensor
Material:	Aluminum Alloy

Product Description

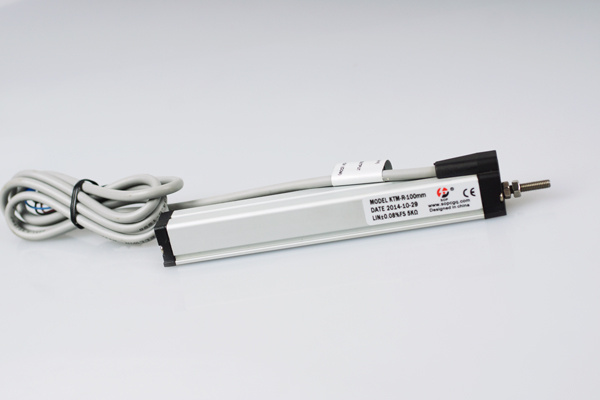

Mini Rod Type Displacement Sensor Can Be Used Small Space

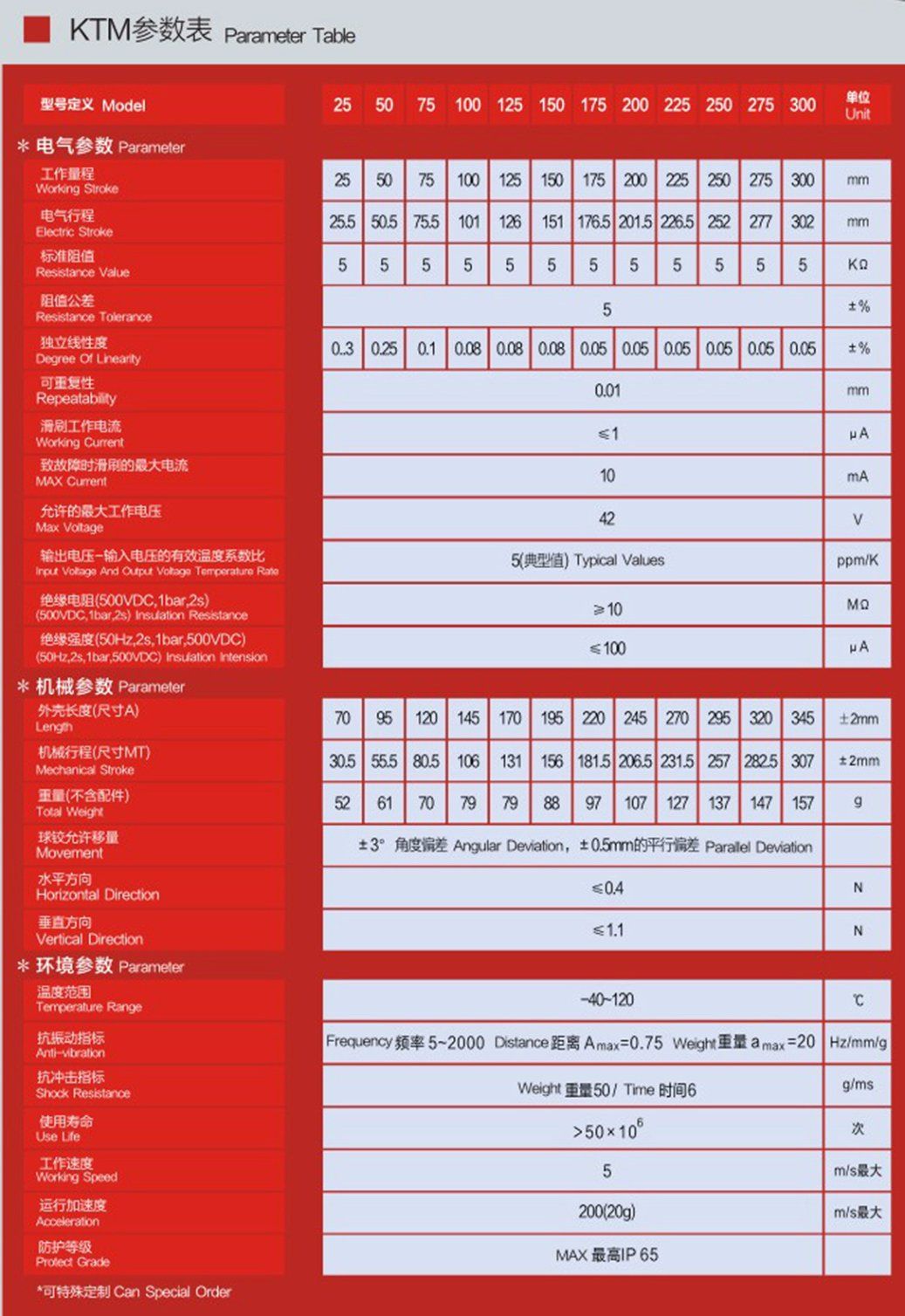

Repeatability	Working Speed	Working Current	Working Stroke	Temperature Range	Horizontal Direction	Vertical Direction
mm	m/s	μA	mm	ºC	N	N
0.01	5	≤1	25-300	-40~120	≤0.4	≤1.1

KTC is a versatile, suitable for various types of equipment to detect the position, such as: injection molding machines, die-casting machines, rubber injection machines, shoes, EVA injection machine, woodworking machine, hydraulic machine.

Product feature:

Volume smaller
Linear excellent
Resolution rate is higher than 0.01mm
Protection grate is ip65
Could equip with voltage and current (2line, 3line) module

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

We offer one of the largest variety of Linear Draw Wire Sensors in measuring ranges from 100mm up to 100000mm. A variety of configurations are available, providing alternative features. A number of outputs are available, including Poteniometer, Voltage, Current, and Quadrature Encoder.
Package:

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.
