Mini Rod Type Displacement Sensor with Super Usage Life

Name: Mini Rod Type Displacement Sensor with Super Usage Life
Brand: all-electronics-online.com
SKU: 820210865
Availability: InStock
Rating: 4.8 (128 reviews)

Price:	US $ 100-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KPZ-100
Feature:	High Pricision& Resolution
Repeatability:	0.01mm
Usage:	Displacement Positon
Working Stroke:	10-100mm
Material:	Aluminum Alloy

Product Description

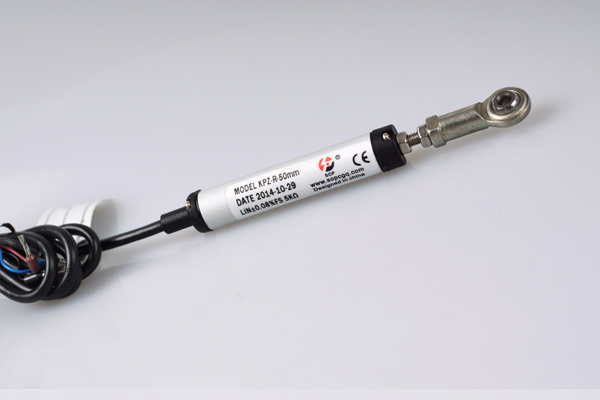

Mini Rod Type Displacement Sensor With Super Usage Life

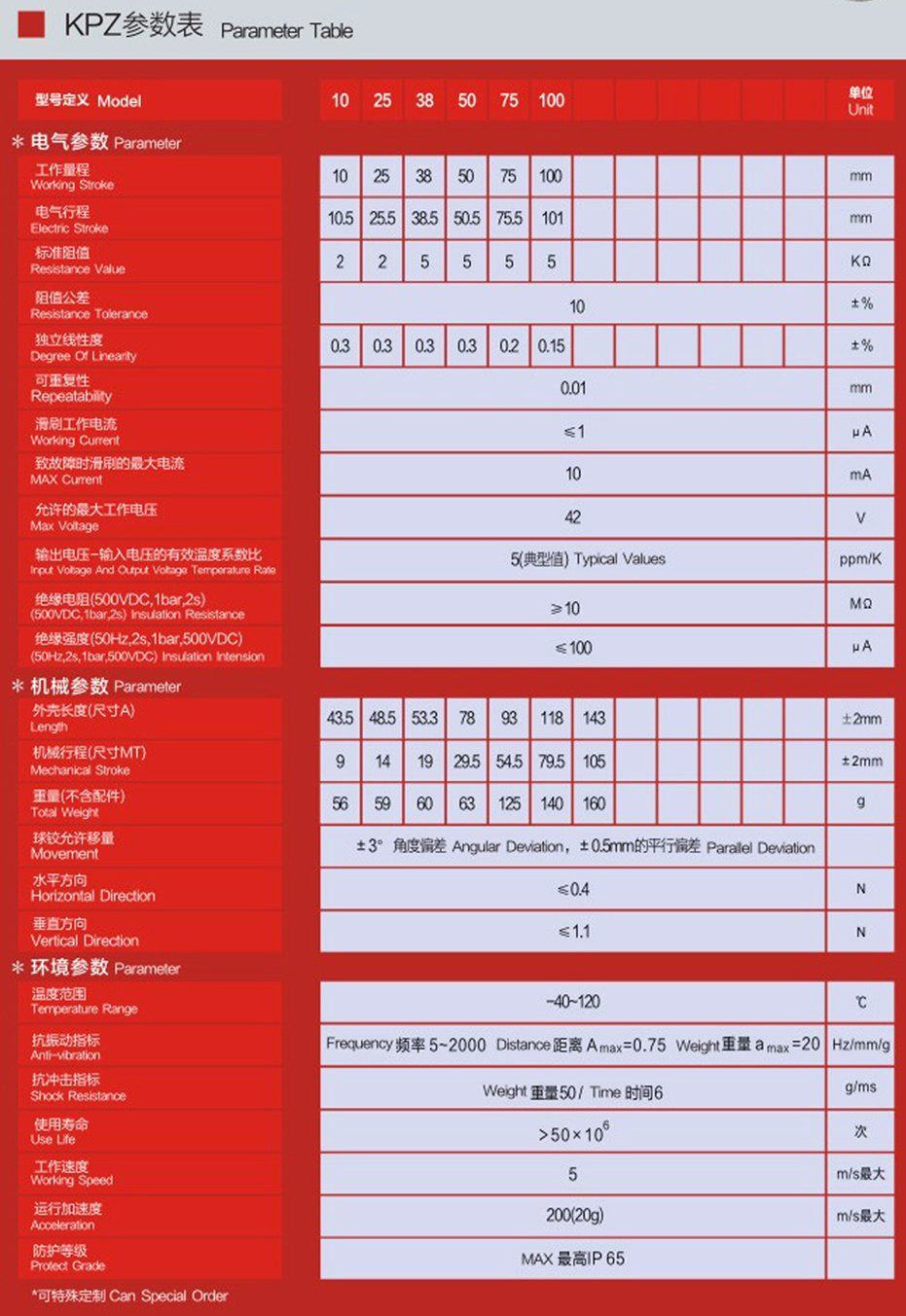

Repeatability	Working Speed	Working Current	Working Stroke	Temperature Range	Horizontal Direction	Vertical Direction
mm	m/s	μA	mm	ºC	N	N
0.01	5	≤1	10-100	-40~120	≤0.4	≤1.1

15 years sensing technology crystallization focus on precise measurements of machinery industry, SOP company who never stop pursing the quality is just for you.
Poor selection of the industry's first high-profile, focus on quality, did not compete.

Product feature:

Linear excellent
Resolution rate is higher than 0.01mm
High speed
Could use in all kinds of worse environment(humid, oily, dusty)
Protection grate is ip65
Could equip with voltage and current(2line, 3line) module

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.
Package:

Packing with standard carton
Are your company a Professional manufacturer?
Yes, we are a factory with 13 years' custom production.
What's your company warranty policy?
After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages
