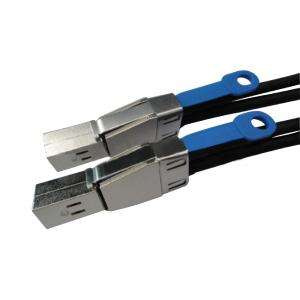

Mini-Sas HD X4 to Mini-Sas HD X4, External Cable Assemblies 12g

Name: Mini-Sas HD X4 to Mini-Sas HD X4, External Cable Assemblies 12g
Brand: all-electronics-online.com
SKU: 813900745
Availability: InStock
Rating: 4.5 (150 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SFF8644 to SFF8644

Product Description

The new Mini-SAS HD product portfolio. The product line meets the signal bandwidth requirements of 6 Gb / s to 12 Gb / s or the corresponding SAS 2.1 and proposed SAS 3.0 industry-standard signal specifications. The system also provides greater linear board port density (port-to-port 11 mm) than previous SAS interconnect systems (port-to-port linear port density of only 19.01 mm).
The Mini-SAS HD products have a nominal current value of up to 0.5A and a characteristic impedance of 100 + / - 15 ohms. They are RoHS-compliant.

The Mini-SAS HD products are fully compliant with industry specifications SFF-8643 (for internal applications) and SFF-8644 (for external applications).

Rugged metal cages and stamped metal EMI shielding shrapnel and cables in the external board connector system replace the defective EMC elastic gasket and provide a full 360 ° EMI shielding effect for each connector port. The crimp eyelet terminals on connectors and cages enable simple single-step crimping to ensure consistent application on the PCB. The strain relief of the external cable produces a tension of 20 lb or more. In addition, the locking structure on the external cable is designed to reduce the cable insertion force and eliminate any disconnection problems. The durability of the connector has been verified to be 250 cycles.
ELECTRICAL CHARACTERISTICS:

Electrical	Symbol	Min.	Typ.	Max.	Unit
Diff.Impedance	ZDIFF	90	100	110	Ohms
Insertion Loss @ 6GHz	│SDD21│			-16.0	DB
Insertion Loss Deviation	ILD	-1.75		1.75	DB
Diff.Return Loss @ 6GHz	│SDD11│/ │SDD22│		-10		DB
Mode Conversion @9GHz	│SCD21│		-20		DB
TotalNEXT @6GHz	TotalNEXT		-35		DB
Insertion Loss to Crosstalk Ratio @ 6GHz	ICR		-15		DB

MECHANICAL/ENVIRONMENTAL CHARACTERISTICS:

Parameters	Specification		Unit
Plug's Housing	Zinc alloy;Finish nickel plating per QQ-N-290
PCB	RoHS compliant, material UL 94-V0 or better;30µ" minimum of hard gold over 100µ" minimum of nickel
Connector Durability	250		Cycles
Connector Retention Force	100		N [22.5LBF]
Cable Outer Diameter	0.19530AWG	0.29026AWG EXD	Inches
Cable Bend Radius	6x cable OD min.		Inches
Cable Flex Cycle	200		Cycles
Cable Rating	UL CL2 CSA FT4 75oC;C(UL) CMG, RoHS compliant rated VW1
Operational Temperature	-20 to 80		ºC
Storage Temperature	-40 to 90		ºC
Atmospheric pollutants	Class IIa, "central office" per Telecordia GR1217 COREi02 3.1.2.R3-1
