| Prod Model: |
Mini-shelter Outdoor Cabinet |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Norminal Voltage: |
220/230/240VAC Single Phase 2 Wire+G |
| Norminal Frequency: |
50/60 Hz |
| Voltage Range: |
115~300VAC |
| Frequency Range: |
50Hz:(46~54Hz);60Hz;(56Hz~64Hz) |
| Power Factor: |
>0.98 |
| Voltage Precision: |
220/230/240X (1±2%)VAC |
| Frequency Precision: |
50/60Hz ±0.05Hz |
| Current Crest Ratio: |
3:1 |
| Communication Port: |
Smart RS232, Snmp (Optional) , USB(Optional) |
| Phase: |
Single Phase |
| Protection: |
Unbalanced Loads |
| Brand: |
Sorotec |
Product Description

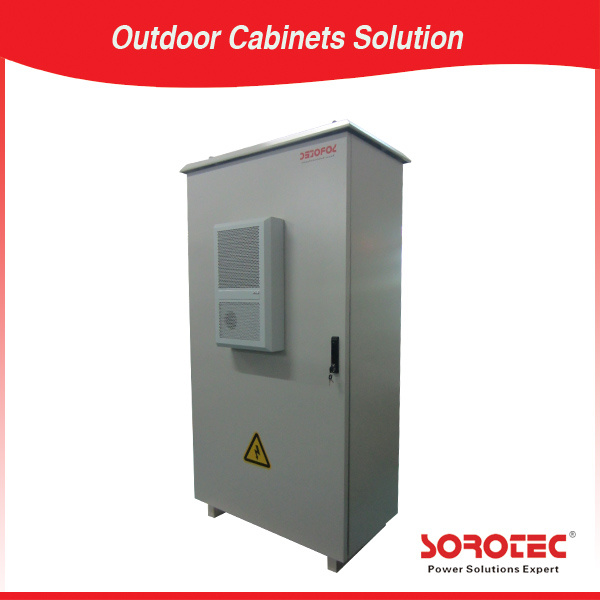

Mini-shelter Outdoor Cabinet
IP55 Outside Plant Power Outdoor Cabinet Outdoor cabinet is the high protection grade battery cabinet Specialized for the outdoor base station power supply Facilities.The system integrate of Intelligent temperature Controlled ventilation system, heater and reserve battery Installation space.The high protection grade battery Cabinet and the advanced temperature control design
Guarantee the reliable operation of the system in the Outdoor environment
Advantages and Characteristics:
1.Wide working temperature range:-10--+45° C( Southern type), -40--+45° C(Northern type)
2.The battery warehouse space:Two groups reserved battery installation space, each group capacity biggest to150AH
3.Easy maintenance:Completely front-side operation and maintenance
4.Easy to install:Suitable for the ground, platform of roof, the tower platform etc
5.Protection level:IP44, effectively separated from external factor, guarantee equipment can operate reliably
6.Intelligent ventilation system:Effectively reduce the system consumption
7.Security design:With the intelligent entrance guard alarm function and strong prevention of burglary module
Technical Specificat:
Model
| HW9110E 1-10KVA |
1KT |
1KT-XL |
2KT |
2KT-XL |
3KT |
3KT-XL | 6KT | 6KT-XL | 10KT | 10KT-XL |
| Capacity |
1KVA/800 W |
2KVA/1600 W |
3KVA/2400 W |
6KVA/4800 W |
10KVA/8000 W |
Norminal voltage |
220/230/240VAC Single phase 2 wire+G |
Norminal frequency |
50/60 Hz |
Input | |
| Voltage Range | 115~300VAC | 120~275VAC |
| Frequency Range | 50HZ:(46~54HZ);60HZ;(56HZ~64HZ) |
| Power Factor | >0.98 | 0.99 |
| Output | |
| Voltage Precision | 220/230/240X (1±2%)VAC |
| Frequency Precision |
50/60Hz ±0.05Hz
|
Power factor |
0.8 | 0.8/0.9(Optional) |
Harmonic Distortion |
Linear load<3% Non-linear<6% |
Overload
Capability |
load>110%for 47s;
load>150%for 25s;
load>200%for 300ms; |
105%125%load>150%for 0.5s; |
Current Crest Ratio |
3:1 |
| Transfer time |
0 ms(AC mode→DC mode);(AC mode→Bypass<4ms) |
Battery | |
| DC Voltage | 36VDC | 72VDC | 96VDC | 192 or 240DVC |
| Recharge Time |
5 hours to 90% (it means standard model which battery inside UPS)
|
| Charging current | 1A | 4A/8A(Optional) | 1A | 4A/8A(Optional) | 1A | 4A/8A(Optional) | 2A | 4A | 2A | 4A |
| Panel Display | |
| LCD |
UPS status, input/output voltage and frequency,battery voltage, capacity,load temperature,history records, adjust Voltage, ECO mode |
Communication | |
| Communication port |
Smart RS232, SNMP (Optional) , USB(Optional) |
Working Environment | |
| Temperature | 0~40°C |
| Relative Humidity | 0~95% non-condensing |
| Storage Temperature | -25°C~55°C |
| Elevation | 1500m |
| Noise Level | < 45dB | < 50dB | <50dB |
| Physical Characteristic | |
Weight(KG) |
N.W |
12 |
6.5 | 23 | 10.5 | 31.5 | 14 | 57 | 18 | 67.5 | 20 |
| G.W | 14 | 8 | 25.5 | 13 | 33.5 | 16.5 | 59 | 24 | 70 | 24 |
| Dimensions: ( W x D x H ) | 145x355x220 | 190x383x318 | 190x433x318 |
