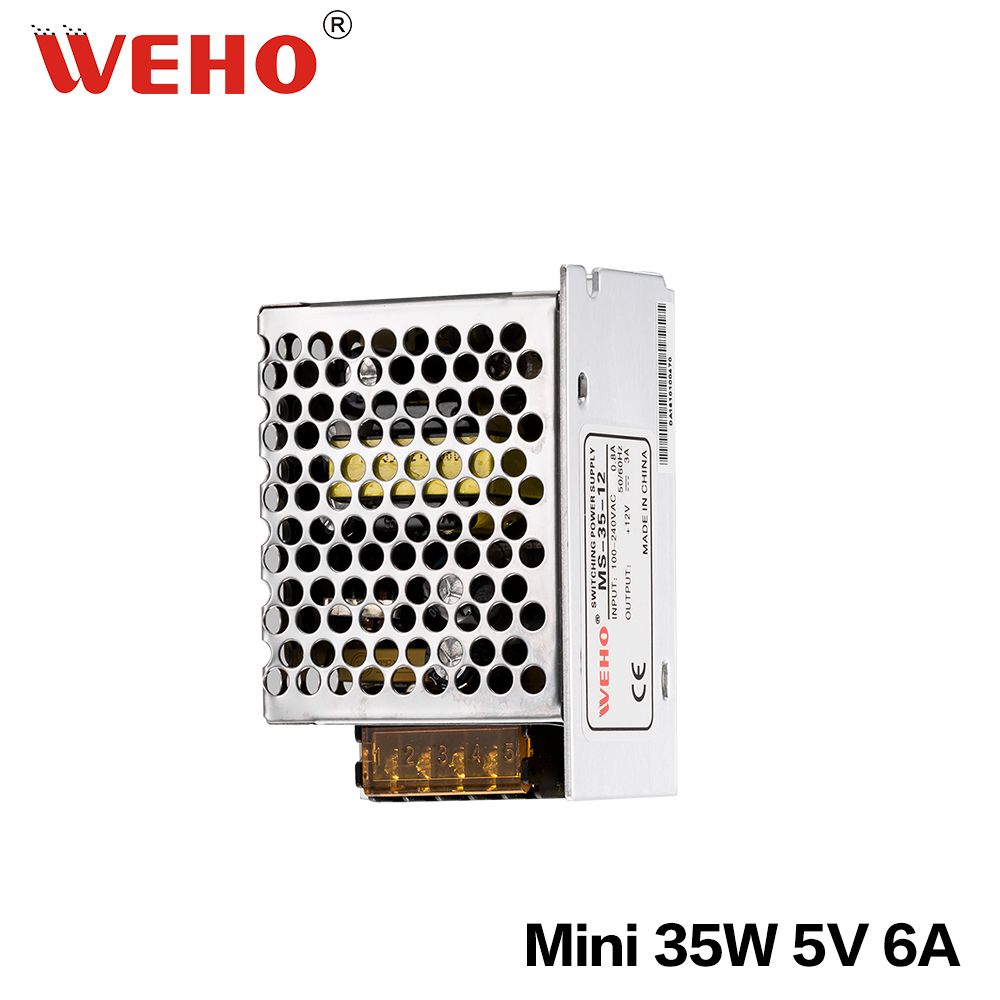

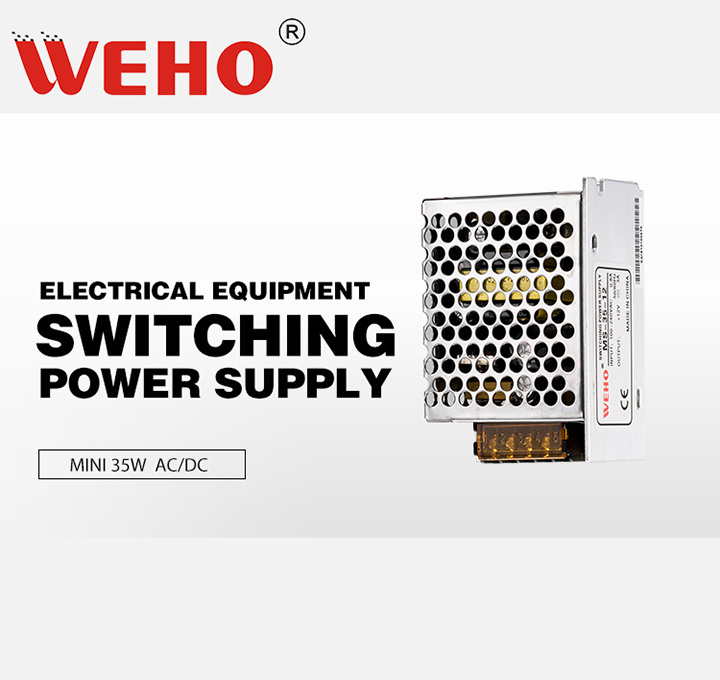

Mini Size 35W 110V/220VDC Input Mini Size 5volt Power Supply

Name: Mini Size 35W 110V/220VDC Input Mini Size 5volt Power Supply
Brand: all-electronics-online.com
SKU: 832278275
Availability: InStock
Rating: 4.8 (137 reviews)

Price:	US $ 4-5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MS-35-5
Type:	Constant Voltage
Material:	Aluminum Case
Weight:	0.22kg
MOQ:	1-5PCS Sample Order
Shipping:	Sea Air DHL FedEx EMS UPS TNT
Test:	100% Full Load Burn-in Test
Voltage:	5V
Current:	7A
Output Type:	Single
Warranty:	2 Years
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO
Brand:	Weho

Product Description

mini size 35w 110v/220vDC input mini size 5volt power supply

Features:

1. AC input range selectable by switch

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 24 months warranty

(Model) (Specification)	MS-35-5	MS-35-12	MS-35-15	MS-35-24
DC output voltage	5V	12V	15V	24V
Output voltage range	2%	1%	1%	1%
Rated output current	7A	3A	2.4A	1.45A
Output current ranqe	0-7A	0-3A	0-2.4A	0-1.45A
Wave and noise	75mVp-p	75mVp-p	75mVp-p	50mVp-p
Inlet stability	0.5%	0.5%	0.5%	0.5%
Load stability	1%	0.5%	0.5%	0.5%
DC output power	35W	36W	36W	35W
Efficiency	70%	76%	78%	80%
Adjustable range for DC voltage	10%	10%	10%	10%
AC input voltage range	170-264VAC 47-63Hz,240-370VDC
Input current	0.45A/230V
AC Inrush current	Cold-start current 36A/230V
Leakage current	<0.5mA/240VAC
Overload protection	105%-150% Type: pulsing hiccup shutdown Reset: auto recovery
Temperature coefficient	0.03%/C(0~50C)
Setup, rise, hold up time	200ms,100ms,30ms
Vibration	10~500Hz, 2G 10min,/1 cycle. Pariod for 60min,Each axes
Withstand voltage	Input and output internal:1.5KvAC,Input and enclosure:l.5KvAC,Output and enclosure:0.5KvA
Isolation resistance	input and output internal Input and enclosure ,Output and enclosure:500VDC/100M
Working temperature and humidity	-10C~+60C,20%~90%RH
Store temperature and humidity	-20C~+85C,10%~95%RH
Overall dimension	85X58X38mm
Weight	0.4kgS
Safety standards	Meet UL 1012 requirement(Not apply for the mark)
EMC standards	Meet FCC PART15 J Conduction class B
