Mini Slide Switch for Mini Electric Device, Side Knob/Toggle Slide Switch (MSK-1155B)

Name: Mini Slide Switch for Mini Electric Device, Side Knob/Toggle Slide Switch (MSK-1155B)
Brand: all-electronics-online.com
SKU: 820373155
Availability: InStock
Rating: 5 (80 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSK-1155B
Rating:	DC12V 0.3A
Type:	DIP
Model:	Msk-1138
Contact Number:	3pins

Product Description

mini slide switch for mini electric device , Side Knob/Toggle Slide Switch

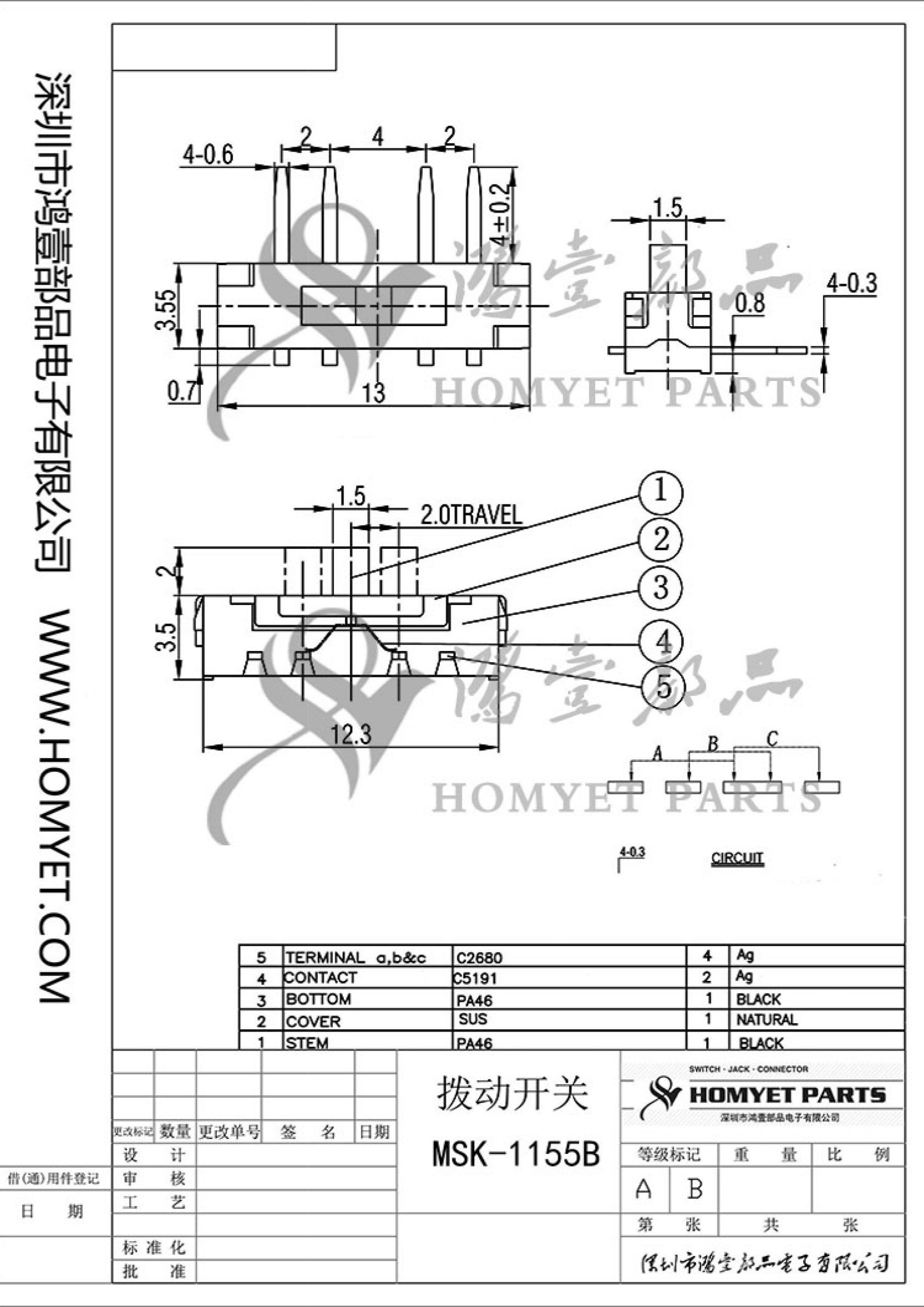

SPECIFICATION:

Features:
1.Micro-Miniature, Innovative design
2.It has good feeling and long life
3.Snap-in type, can be mounted directly on P.C.Board and good for electrostatic discharge
4.It has a lot of choices for button shape and height and it is easily to install

Welding Conditions:
1.Hand soldering
Use a soldering iron of 30 watts, controlled at 350ºC approximately 3 seconds while solder applying
2.Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260ºC max. Condition for soldering Temperature Profile

Material:
1.Frame: SPCC
2.Knob: POM
3.Contact: Copper Wire Ag Plated
4.Terminal Base: Phenol Resin
5.Terminal: C2680R Ag Plated
6,Spring: Steel

Electrical Performance:

Rating	DC 12V 0.1A/30V 0.3A; DC 50V 0.3A/0.5A; DC 60V 0.5A
Contact Resistance	30m ohm Max
Insulation Resistance	100m ohm at 500V DC
Switching Life	50,000cycles(Unloading at 15-18cycles per minute) / 100,000Cycles
Withstand Voltage	AC500V 1 Minute

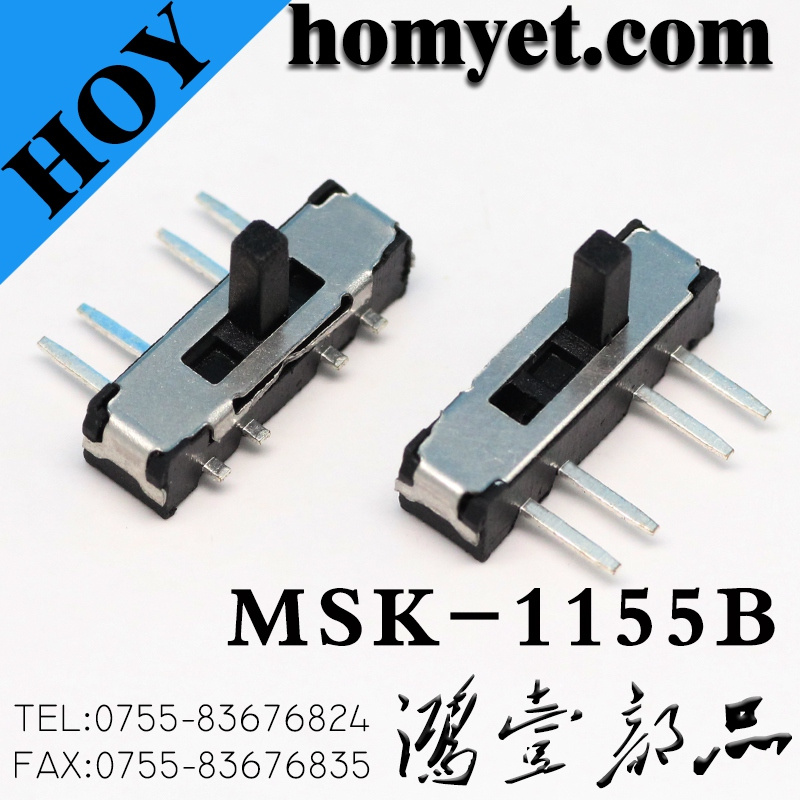

PRODUCT DETAILS:

APPLICATION:

Mainly used in all types of computer, mouse, mobile phones, cameras,

VCR, stereo and car radio equipment, PDAS and home appliance.

1) Computer products
2) Consumer products
3) Communication equipments

PRODUCT CERTIFICATION

PAYMENT&SHIPPMENT:
1) Shipping:
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
2) Payment Terms: T/T, L/C, PayPal; 20% deposits; 80% balance before delivery

PACKING&CONTACT:

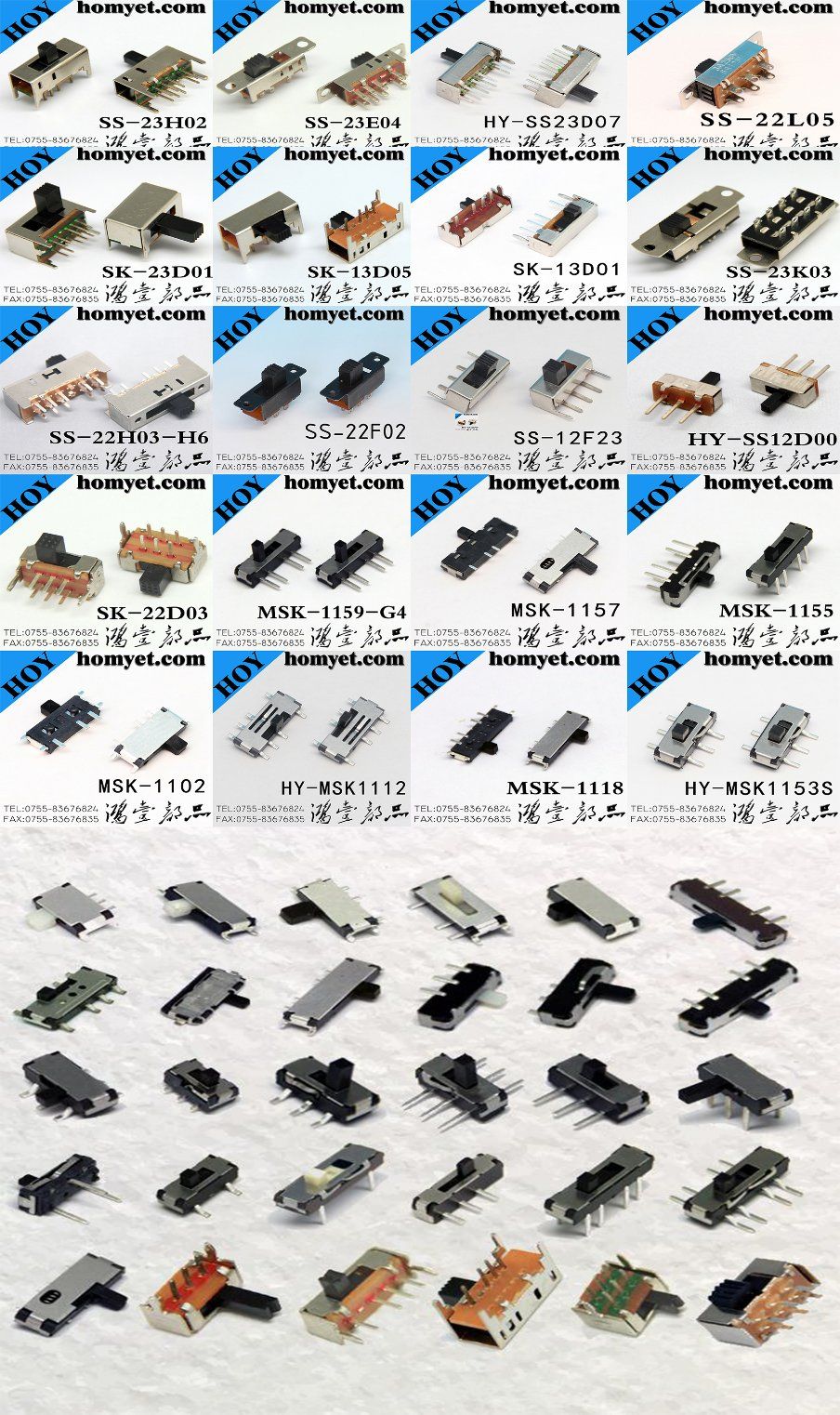

RELATED PRODUCTS:

Shenzhen Homyet Parts Electronics Co.,Ltd is committed to electronic components parts development,design,production and sales of professional firms. We stick to innovation and quality.ln order to adaptation the requirements of market,we open up constantly,innovation,so we development a series of new product successful and push in market.Our main products ane Tact switch,Phone jack,Toggle switch,power jack, card and connector etc.Our products are widely used in digital fashion,communications,
Multimedia, digital home and other related fields. The company has perfect quality management ,system,Experienced professional andtechnical personnel.

The company keep in line with purpose of"quality,efficiency,integrity
Service",we Conscientiously sum up experiences,Listen carefully to customer feedback and suggestions,Constantly improving and upgrading servies to users.ln the days,the company will go on cooperation with new and old customers to create brilliant together.
We're pleased to get your Inquiry and we will come back to as soon as possible.
