| Prod Model: |
KG002 |
| Battery: |
400mAh |
| Whole Machine Size: |
6cm*4.5cm*0.7cm |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Mixed Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Model: |
Total Station Type |
| Carrier Frequency: |
Dual-Frequency |
| Certification: |
ISO14001 |
| Screen Size: |
No |
| Chip: |
Mtk |
| Brand: |
Koshiro |
Product Description
Small locator (PET; elderly, children; automobile; trunk valuables etc.)
Main features:The appearance of fine; ultra small slim, "GPS+GPRS+WiFi+LBS multi-mode positioning accurate, static sleep power-saving design, real-time positioning, intelligent monitoring Global universal
major function:
1, real-time positioning
2, historical track
3, electronic fence
4, a key for help
5, voice monitoring
6, vibration alarm
7, remote shutdown
| 1. structure division |
| structure parts | category | specification | remarks |
| ID design | Exquisite compact, fashion | |

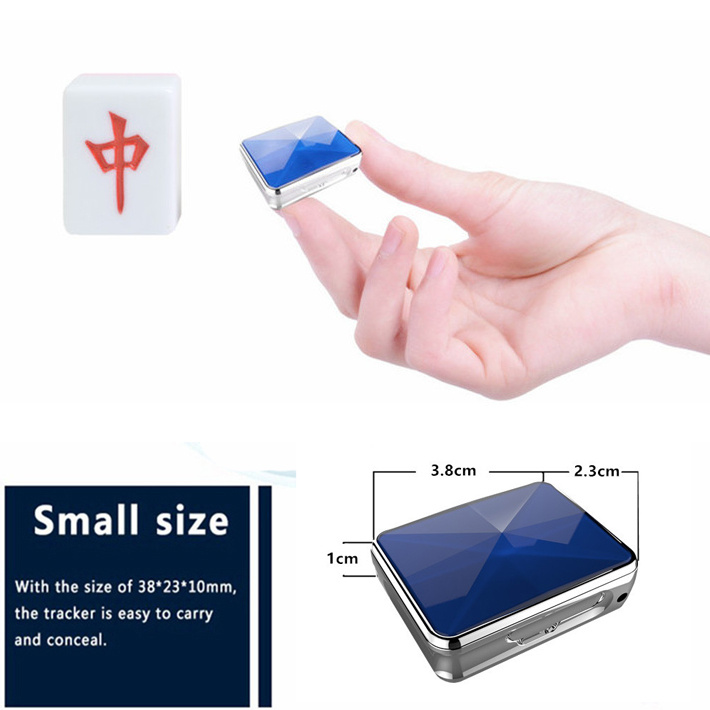

| Whole machine size | 39mm*23mm*10mm | |
| Packing size | 11.5cm * 7.5cm * 3.5cm | |
| Weight | 18g no packaging, 52g packaging box | |
| colour | blue | |
| button | one button(power/SOS button) | |
| screen | no | |
| gps antenna | High sensitive ceramics active antenna | |
| GSM antenna | FPC antenna | |
| battery | 350mAh | |
| SIM card slot | 1 pc | |
| G-sensor | support | |
| I/O port | DC seat charging | |
| 2. Hardware parts |
| Hardware parts | CPU | MTK MT6261 | |
| GSM frequency band | 850/900/1800/1900MHz | |
| GPS chip | MTK3337 | |
| GPRS | class12 | |
| GPS signal | L1,1575.42MHz C/A | |
| GPS channel number | 22 channels | |
| GPS chip receive sensitivity | Tracking sensitivity:-165dBm,capture sensitivity:-148dBm | |
| WIFI location accuracy | 10~50M | |
| GPS location accuracy | 5~15M | |
| LBS location accuracy | 100-1000M | |
| Minimum standby current | less than 0.5 mA | |
| Average stndby current | less than 2.5 mA | |
| Average working current | around 55mA | |
| Working temperature | -20~70ºC | |
| Working humidity | 5% to 95% non-congealable | |
| Test and certification | can approval by 3C,CE&ROSH | |
| GPS antenna | Built in high sensitivity ceramic antenna | |
| GSM antenna | FPC antenna | |
| 3D gravity sensor | Support | |
| MIC | Support | |
| Texture of material | ABS environmental protection material | |
| 3. software parts |
| software parts | supported operating systems | Support android 2.3 and above system, IOS5.0 and above. | |
| call function | The remote monitoring | |
| Language support | Simplified Chinese and English | Compatible with support for multi-languages |
| GSM+GPRS+GPS+wifi | GPS+LBS+WIFI Multi-modal positioning(Optional) | |
| support AGPS | Cold start 26 seconds positioning | |
| call function | SOS call, voice monitor, whitelist for don't disturb | |
| power management | Ultra-low power consumption of power management,intelligent dormancy | |
| One key emergency | SOS one key emergency function ,autodialing | |
| Smart Geo-fence | Outside the range setting can be automatic alarm | |
| historical route | Can check history of three months | |
| wireless upgrading | Software upgrade, remote debugging maintenance, remote setting parameters |
|
