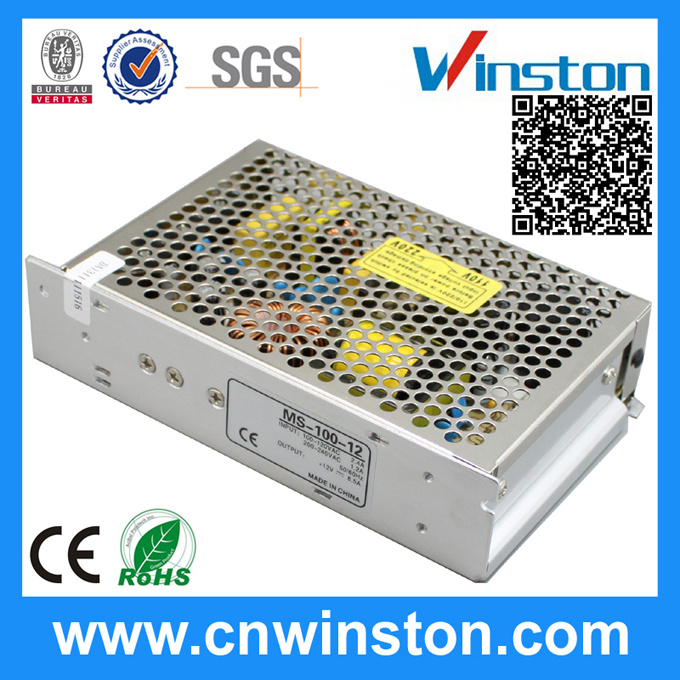

Mini Small Size Single Output Switching Power Supply with CE

Mini Small Size Single Output Switching Power Supply with CE
Price: US $ 6.3-6.9/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: MS-100-12
Markets: North America,South America,Eastern Europe,Africa,Oceania,Western Europe
Output Frequency: 47Hz-63Hz
Antistop: Switching Power Supply
Condition: Original New
Manufacturer: OEM
Quality Guarantee: 2 Years
Protection Angle: 360
Dimension: 159*98*38mm
Weight: 0.48kg
Shell Material: Metal
Output Voltage: 12V
Output Type: Single
Warranty: 2 Years
Input Voltage: 110-220V
Connection Mode: Series Switching Power Supply
Starting Mode: Separate-excited Switching Power Supply
Voltage Regulating Mode: Width Modulation Type
Power Supplying System: Level 1 Power Distribution Equipment
Certification: RoHS
Output Power: 100W
Brand: Winston/OEM

Product Description

MS-100 switching mode power supply

1. Features:

100Wswitching power supply
1.ce rohs approved
2.2 years warranty
3.free sample
4.high quality

2. Specification


(Model)
(Specification)

MS-100-5

MS-100-12

MS-100-15

MS-100-24

DC output voltage

5V

12V

15V

24V

Output voltage range

2%

1%

1%

1%

Rated output current

20A

8.2A

6.6A

4.2A

Output current ranqe

0-20A

0-8.2A

0-6.6A

0-4.2A

Wave and noise

75mVp-p

75mVp-p

75mVp-p

75mVp-p

Inlet stability

0.5%

0.5%

0.5%

0.5%

Load stability

1%

0.5%

0.5%

0.5%

DC output power

100W

100W

100W

100W

Efficiency

75%

78%

78%

82%

Adjustable range for DC voltage

+10,-5%

10%

10%

10%

AC input voltage range

AC 170-264VAC 47-63Hz,240-370VDC

Input current

0.65A/230V

AC Inrush current

Cold-start current 36A/230V

Leakage current

<0.5mA/240VAC

Overload protection

105%-150% Type: pulsing hiccup shutdown Reset: auto recovery

Over-voltage protection

....

High-temperature protection

....

Temperature coefficient

0.03%/C(0~50C)

Setup, rise, hold up time

200ms,100ms,30ms

Vibration

10~500Hz, 2G 10min,/1 cycle. Pariod for 60min,Each axes

Withstand voltage

Input and output internal:1.5KvAC,Input and enclosure:l.5KvAC,Output and enclosure:0.5KvA

Isolation resistance

input and output internal : input and enclosure, Output and enclosure:500VDC/100M

Working temperature and humidity

-10C~+60C,20%~90%RH

Store temperature and humidity

-20C~+85C,10%~95%RH

Overall dimension

157X97X38mm

Weight

0.5kgS

Safety standards

Meet UL 1012 requirement(Not apply for the mark)


PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
