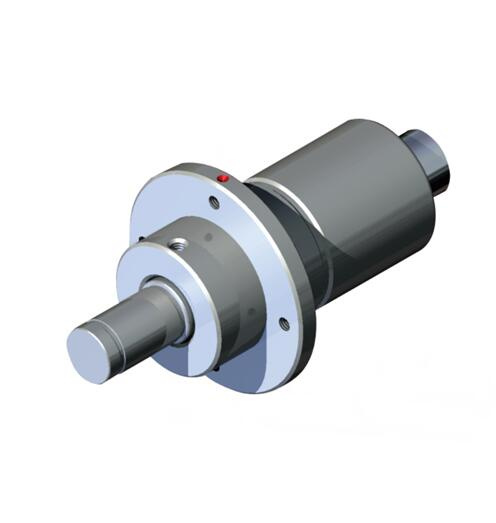

Mini Tension Load Cell with High Accuracy (B203)

Name: Mini Tension Load Cell with High Accuracy (B203)
Brand: all-electronics-online.com
SKU: 733704212
Availability: InStock
Rating: 4.9 (82 reviews)

Price:	US $ 150-200/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B203
Size:	16.515.9mm(HD)
Capacity:	3000n
Accuracy:	0.5%
Load Direction:	Tension
Type:	Sub-Miniature Tension & Compression Load Cell
Pattern:	Tension
Out-Wire:	5 Wires
Feature:	High Accuracy
Production Process:	Stain Gauge

Product Description

1. Name: Tension Load Cells with high accuracy sensor

2. Material and Capacity: 17-4PH S.S 10 to 200N

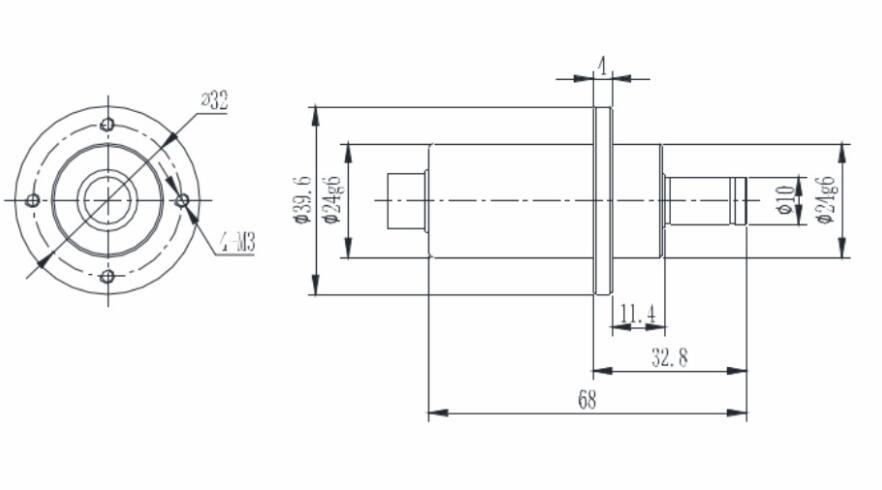

3. Details of Design (Design could be customized)

4. Datasheet

	Specifications	/Technique
	Capacity	10,20,50,100,200N
	Accuracy class	0.2%
	Rated output	2.0±0.02mV/V
	Zero balance	±2%F.S.
	Non-linearity	0.1%F.S.
	Hysteresis	0.2%F.S.
	Repeatability	0.1%F.S.
(30min)	Creep(30min)	0.1%F.S.
	Temp.effect on output	0.03%F.S./10ºC
	Temp.effect on zero	0.03%F.S./10ºC
	Input impedance	350±10Ω
	Output impedance	350±10Ω
	Insulation	≥5000MΩ/100VDC
	Recommended excitation	5~15V
	Maximum excitation	20V
	Compensated temp range	-10~40ºC
	Operation temp range	-30~70ºC
	Safe overload	150%F.S.
	Ultimate overload	300%F.S.
	Cable size	Φ4×1500mm
	Weight approx.	0.2kg
	Material	Stainless Steel()
	IP Class	IP66

5. Application details
These tension sensors are mainly used for milling or grinding machine, rototic polishing and other industrial measuring system.

6. Product Highlights:

low profile,small deflection
Made of stainless steel
Three directional
Mainly used for milling or grinding machine, rototic polishing and other industrial measuring system

Different applications for different size and accuracy could be made according to your own design.

www.bransensor.com

What you could get from Brans?

Load Cells, Miniature and sub-miniature force sensors, Pressure Transducers/sensors, Torque Transducers, Temperature sesensors, Flow senesors, Displacement Transducers (LVDTs), Digital Gauges, Strain Gauges, Instrumentation for Test, amplifiers and data acquisition systems as well as software for structural durability investigations, tests and analysis, Measurement and Other Applications.

Why choose Brans?

Brans cooperate with HBM, FLINTEC, METTLER TOLEDO, Honeywell, Vishay and other famous brand electronic measuring instruments and system. We could learn and get the most advanced technology and news of procedures. Good manufactures means good products.

We could OEM for miniature and sub-miniature load cells with tension or compression; Big capacity load cells/sensors Brans also could make it with good quality material.

Brans products (load cells, force sensors, amplifiers… ) have been certified per ISO9001, OIML, CE, RoHS, NETP AND ATEX. Brans could promise you the best quality for measuring products.

Who Brans cooperate with?

Brans have developed solutions for a wide range of industries including automotive, aerospace, military and defense, oil and gas, R&D and material/test labs, machine and automation equipment designers and builders, off highway and heavy equipment manufacturers, medical device manufacturers, semiconduct or fabricators, utilities and energy companies, marine equipments and shipbuilding.
