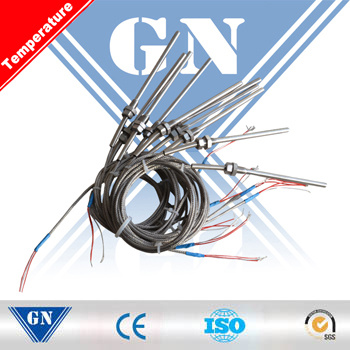

Mini Thermocouple (thermal resistance) (CX-WZ/R)

Prod Model:	CX-WZ/R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-200-250c
Fixing:	Thread/Flange/None
Connection:	Terminal Box/Compensation Cable/Plug
Probe Length:	Custom
Thermocouple Wire Element:	Simplex/Duplex
Graduation:	N,K,E,T,J,PT100,Cu50,Cu100
Pakage:	Wooden Box
Thermalwell Material:	Ss304,316,Inconel601
Accuracy:	5%

Product Description

Mini thermocouple(thermal resistance)




Brief introduction:

It is usually connected with display meter, recording meter and computer ect.
To directly measure the temperature of liquid, vaper, gas and solid surface
ranging from -200 to 250C during various production processes.

How to choose?
1.Diameter and length:Can be customized as customer's requirements
2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: -200-250C centigrade .
5.Terminal blocks: terminals box



Application
It is used for temperature test & control in narrow place. It is the necessary temperature-measuring device for textile and polyester fibre industry.

Main technical parameters
Accuracy class:
Thermocouple:
Thermal resistance: A, B
Nominal pressure: normal pressure


Models and specifications

Model	Graduation	Measuring range ºC	Thermal response time	Protection Materials	Specifications
WRE-203S	E	-40-+250	< 5S	1Cr18Ni9Ti	150 200 250 300 350 400 450
WRE-205S			< 8S
WRE-206S			< 10S
WZP-203S	Pt100	-200-+250	< 5S
WZP-205S			< 8S
WZP-206S			< 10S

After-sales service:
We promise to deliver the following after-sales service:
1. Warranty: The warranty period is 12 months starting from the shipping date;
2. Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality;
3. For on-site services not arising from manufacturing quality, we shall charge a certain service fee at our discretion based on actual charges incurred such as travel expense;
4. We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.

Payment Terms:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
