| Prod Model: |
mini gps tracking tracker 102B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
46mm*64mm*17mm |
| Frequency: |
850/900/1800/1900 |
| Person Warranty: |
12months |
| Certificate: |
Ce FCC |
| Tracking Solution: |
Web GPRS Tracking, APP Tracking, GSM SMS Tracking |
| Battery Standby Time: |
80 Hours |
| GPRS Protocol: |
TCP UDP |
| Portable: |
Internal GPS GSM Antenna, Easy to Install |
| Map: |
Real Time Google Map |
| Type: |
GPS Tracker |
| Use: |
Hand Held |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
Baanool GPS Tracker 102 |
| Brand: |
Coban |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description

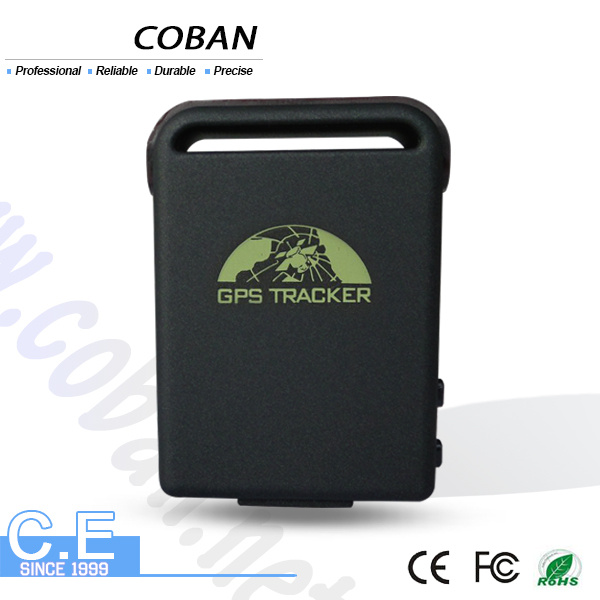

mini tracking GPS Tracker with Built in Memory Geo Fence (GPS102-B)Product description;GPS tracker, personal GPS tracker, car GPS tracker with built in memory and external SD card fucntion, 100 hours standby time, water proof bag and magnets cover.
This GPS tracker product can locate accurately and be used in guarding Vehicle against theft, Protecting child / Elderly / disabled / pet, Managing personnel and Tracking criminals secretly.
Details:Working Based on existing GSM/GPRS(850/900/1800/1900MHz)network and GPS satellites, this product can be located by cellphone or computers.
Basic functions:1. GPS + Location based service(LBS)
2, Real time tracking via SMS or GPRS (
TCP/UDP)
3, Track on demand
4, Live google map with HTTP link in SMS
5. Absolute street address
6, Track by time interval
7, Five authorized phone number to protect tracker information and assets
8, Voice Surveillance
9, Easy switch for track or Monitor
10, Low battery alarm
11, SOS button for emergency
12, Geo fence
13, Overspeed Alarm
16, Movement alert
17. with direction and heading value
18. Shock sensor
Technology parameter:| Content | Specifications |
| Dim. | 64mm x 46mm x 17mm(1.8" *2.5" *0.65" ) |
| Weight | 50g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| Time To First Fix | Cold status 45s
Warm status 35s
Hot status 1s |
| Car charger | 12-24V input
5V output |
| Wall charger | 110-220V input
5V output |
| Battery | Chargeable changeable 3.7V 1000mAh Li-ion battery |
| Standby | 80hours |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +55°C |
| Humidity | 5%--95% non-condensing |
Shenzhen Coban Electronics co., Ltd
Holding 15 Years of Experience
Shenzhen Coban Electronics is a private export-oriented enterprise founded in 1999. About 90% of our products are exported, and we have many years of R&D, production and management experience in automotive electronics, security products, wireless communication terminal equipment and other fields. We specialize in GPS trackers, car anti-theft alarm systems, and car multimedia and entertainment systems.
Meeting Various Certificates
As a high-tech enterprise, we have a strict management system, and have obtained the CCC, CE, FCC, UL ISO 9001 and other certificates. Before all our products enter the market, they have been tested rigorously such as high and low temperature aging test, vibration test, noise test, and audio and video indicator decomposition tests. So far, our products have been well marketed in 107 countries and regions in the world.
Owner of Many R&D Centers for Continuous Innovation
Our company has set up R&D centers, including GPS R&D department, GSM R&D department and system integration department. All our products are developed independently and have obtained a number of national patents. So our professional and efficient R&D and production teams provide good foundation for high-quality products.
Start Sourcing from Us Today
Except the advantage of rich human resources, since we count on long-standing business relationships, we always aim to build long-term cooperation with well-known high-tech companies from mainland China and abroad. In order to meet the development of the market, our aim is to transform the latest and the best research fruit into real products quickly. Contact us now to begin sourcing.
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models.
4.We will bear maintenance cost during warranty.
Contacts:
1, Fail to turn it on
Please check if built-in battery is charged, and power wires connected well.
2, No GSM signal
Please check if SIM card installed correctly.
Please check if SIM card is GSM network.
Don't turn on the PIN code
no calls can be diverted
3, No GPS
Please check if GPS antenna connected well, and recommend GPS antenna be installed near the window glass, no metal parts can cover it to make sure better GPS signal reception.
4, No reply to SMS command
Password wrong or the format is wrong.
5, No reply to calling
Authorized / admin phone number is incorrect
6, No alarm message
Authorized / admin phone number has not setup
