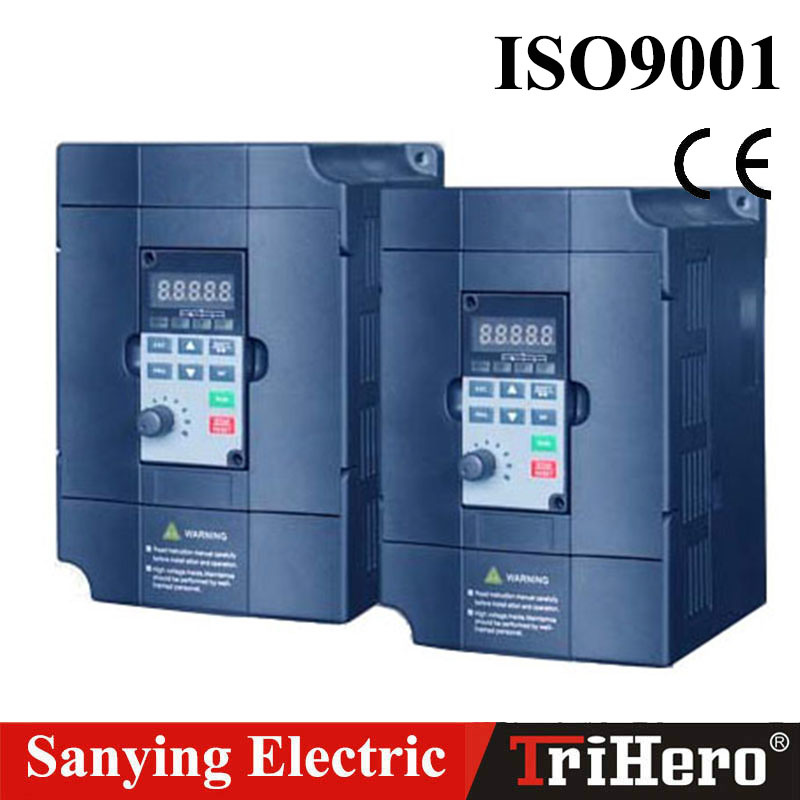

Mini Type Frequency Inverter/Variable Frequency Drive

Mini Type Frequency Inverter/Variable Frequency Drive
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: PT150
Color: Black
Input Frequency: 50/60Hz
Power Rang: 0.4-1.5kw
Output Frequency: 0.00 ~ 400.00Hz
Input Voltage: Single Phase 220V,Single Phase 380V,3 Phase 380V
Output Type: Single
Brand: Trihero/OEM

Product Description

Product Positioning:
The PT150 series inverter is a mini inverter specially for small devices based on PT200 series high-performance current vector software platform and it is the one for modern small-scale processing and manufacturing automation control.
Technical characteristics:
The PT100 Series inverter is a high-quality and multifunction vector control inverter. It can run a wide range of speed and torque control in high-precision by decoupling control of motor magnetic flux current and torque current torque fast and accurately
Performance Introduction:
1.Using DSP as the core of control unit to achieve high-speed high-performance control;
2. Motor parameters self-learning, intelligent tuning the best control mode
3.Performance IPM module; protection function such as undervoltage, overcurrent,  overtemperature, short circuit for ground etc.
4.Low-frequency large torque :0.25Hz 180% torque output
5 Easy PLC function: 16 Paragraphs  for speed control and 4 acceleration control.
6. Powerful communication function supporting Modbus protocol  and standard panel remote control (500M far)

7.A unique EMC design minimizing  the pollution to power

Power range: 0.4-1.5K
Frequency range : 0.00 ~ 400.00Hz
Input Voltage: single-phase 220V / three phase 220V/three phase 380V

Applications: medicine, food, packaging, engraving, washing and other industries, machinery equipment, a variety of small-scale machinery equipment.


ItemStandard
Power supplyLevel of voltage frequencySingle phase 200~240V, 50/60Hz   three phase 200~240V,50/60Hz
three phase 380~415V, 50/60Hz   three phase 440~460V,50/60Hz
three phase 575V,50/60Hz       three phase 660V, 50/60Hz
three phase 1140V, 50/60Hz
Allowable fluctuationVoltage :±15%  frequency: ±5%
Control performanceControl systemAC frequency vector inverterswith vector control based the high performance of DSP
Output frequencyG/P/Z/S/T/M type: 0.00~400.0Hz,
The highest frequency can be set among 10.00~400.0Hz
Control methodV/F control, vector control for flux with open loop 1,vector control for flux with open loop 2,
vector control for PG
 Lifting function
of automatic torque
Torque control for low frequency (1Hz) and great output in the control method of V/F

Control on accelerating and decelerating
Setting method for subsections of accelerating and decelerating S curve; the longest operation time 9600 h

Control on programme operation
Operation for speed program of 16 sections; the longest operation time 888.88 h

Image resolution of frequency setting
Figure: 0.01Hz(below300Hz),0.1Hz( above300Hz)
simulation: 0.05Hz / 60Hz
Frequency accuracyCommon difference of speed control 0.01%(25ºC±10ºC)
V/F curve methodUser defines V/F curve for linear and multiple power
Overload capacityG/S type: rated current 150%-1 minute, rated current 200%-0.1 second
P type :rated current 120%-1 minute,rated current 150%-0.1 second
Z/M/ T type:rated curren180%-1minute,rated curren250%-0.1 second
H type :rated current 250%-1 minute, rated current 300%-0.1 second

Slippage compensation
50~100%, compensation for automatic slippage

The highest frequency
400Hz
Carrier frequency0.5KHz~15KHz; carrier frequency can be adjusted based on the load characteristics

 Image resolution of output  frequency
Figure setting: 0.01Hz  simulation setting: the highest frequency × 0.1%
Starting torqueG motor: 0.5Hz/180%
P motor: 0.5Hz/120%
Speed range1:200
Accuracy of speed stabilizing
(accuracy of speed control)

 Vector control for flux with open loop:≤±0.5% (rated synchronous speed)

Stability of speed control
 vector control for flux with open loop :≤±0.3%(rated synchronous speed)

Torque response
≤40ms (vector control for flux with open loop)

Torque boost
Automatic torque boost; manual torque boost 0.1%~30.0%

acceleration and deceleration line
Acceleration and deceleration method for line; for acceleration and deceleration time; time scope for acceleration and deceleration 0.0s~3600.0s

DC braking
DC braking frequency :0.0Hz~maximum frequency, braking tine:
0.0~36.0 second,current value for braking movement: 0.0%~100.0%

Electronic control
Range of jog frequency :0.00Hz~maximum frequency;
Acceleration and deceleration time of jog: 0.0s~3600.0s

Operation on multi sections
Realize the maximum operation of 16 sections via control terminals

Build-in PID
Realize closed-loop control system with process control conveniently:
Automatic voltage regulation (AVR)Automatically make the output voltage constant when the network voltage changes

Torque limitation and control
Excavator characteristics: automatic limitation on torque during the operation period and prevention for frequent overcurrent trip; and vector model of close loop can realize the torque control
Personalized function


Self-checking for outside equipment safety of electrifying
Realize the security detection of electrifying on outside device like ground connection and short circuit
Function of DC busRealize the function for many transducers to share DC bus
keyProgrammable key: function choice for positive and negative operation and jog operation
Pendulous control of textileMulti control functions of triangular wave
Current -limiting function of the carrierBuilt- in current-limiting algorithm of waveband reduces the probability for the AC frequency vector inverters to report overcurrent and improve the whole motor's ability on resisting disturbance
Timing controlTiming control function: setting time scope 0h~65535h
 Standardization for extension cord of the keyboardThe customer can use the standard network cable to prolong the keyboard
OperationInputting signalOperation methodKeyboard/terminal/communication
Frequency settingSix frequency source in total: setting of keyboard, analogue voltage, analogue current, operation for multiple sections, PID control, remote communication and presetting of keyboard potentiometer can be changed via multiple methods
Starting signalCorotation and inversion
Speed of multiple sectionsSpeed for 16 sections can be set at most (using multifunction terminal or program execution)
Acceleration of multiple sectionsAcceleration 4 sections can be set at most (using multifunction terminal )
Emergency stopInterrupt controller output
Operation of pendulous frequencyOperation of process control
JogOperation with low speed
Fault resettingAutomatically or manually reset the fault state when the protection function is at an effective state
PID feedback signalIncluding DC 0~10V, DC 1~5V, DC 0~20mA and DC 4~20mA
Outputting signalOperating conditionMotor situation showing stop, acceleration and deceleration, constant speed and state of programme operation
Fault outputOutput of sensitive point-AC 250V 5A, DC 30V 5A
Analog outputTwo analog outputs can choose 8 signals such as frequency, current, voltage and so on; and output signal scope can be set randomly among 0~10V/0~20mA.
Output of digital quantityUp to three output signals; every output signal has nine signals for choice
Operation functionLimiting frequency, avoiding frequency, slippage compensation, invert protection, self-adjusting and PID control
Braking of direct currentBuilt-in PID adjusts brake current and protects sufficient braking torque without overcurrent
Run command channelThree channels: presetting of operation panel, control terminal and serial communication.  The change via various methods
Input terminalSix digital input terminals can be compatible with active loudspeaker PNP or two input terminals of analog of NPN input method; among them, AI1 and AI2 can be input as voltage or current. (if it necessary to expand the function of input and output terminals, please use IO expansion cards)
Output terminalOne digital output terminal (bipolar output), a relay output terminal, and an analog output terminal can respectively choose 0/4mA~20mA or 0/2V~10V and realize the output of physical quantities such as setting frequency, output frequency and rotate speed
Protection functionAC frequency vector inverters protectionOvervoltage protection, low-voltage protection, overcurrent protection, overload protection, overheat protection, protection of overcurrent and speed reduction, protection of overvoltage and speed reduction, protection of default phase (optional functions), external fault, communication error, abnormal feedback signal of PID and PG fault
IGBT temperature displayDisplay current IGBT temperature
Control of AC frequency vector inverters fanStarting temperature for the fan can be set
Instant power failure and then restartingLess than 15 millisecond: Continuous operation
More than 15 millisecond: automatically detect the motor speed and restart after instant power failure
Tracking method of rotate speed

Automatically track motor speed at the start of the transducer
Protection function of parameterProtect the AC frequency vector inverters parameter via setting supervisor password and decode
DisplayLED/OLED show keyboard

Operation information18 monitoring objects of the operation in total: operation frequency, setting frequency, rated current of the motor, current percentage, DV bus voltage, output voltage, actual speed of the motor, accumulative operation time, IGBT temperature, PID given value, feedback value of PID, state of input terminal, state of output terminal, value of analog AI1, value of analog AI2A, current number for speed of multiple sections and setting value of torque
Error messageKeep five error messages at most and inquire fault type, voltage, current, frequency and working condition when the fault occurs
LED displayDisplay parameter
OLED displayOptions available; instruction in Chinese/English

Parameter copy
Using special keyboard of parameter copy can realize the quick copy of the parameter (limited too OLED)

Key lock and function choice
Realize partial or complete lock of the button; define the effect scope of partial buttons to prevent wrong operation
CommunicationRS485/RS232It can choose isolated RS485/RS232 communication module to realize the communication with the upper computer
EnvironmentEnvironment temperature-10ºC~40ºC( environment temperature is among 40ºC~50ºC; please use it with derating)
Storage temperature-20ºC~65ºC
Environment humidityLess than 90 % R.H,not exceeding 90 % R.H
Height; vibrationBelow 1000 m, below 5.9m/s?(=0.6g)
Application placeIndoor, without sunlight or corrosivity, explosive gas or water vapor, dust, combustible gas, oil mist, water vapor, dropping water or salinity
AltitudeBelong 1000m
Pollution degree2

Product standard
 The product implements safety standardIEC61800-5-1:2007
 The product implements EMC standardIEC61800-3:2005
Cooling methodForced cooling and natural air cooling
