| Prod Model: |
M100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
M100 Series Frequency Inverter 3phase 380V |
| Voltage Range: |
170-240V;330-440V |
| Single Phase: |
220V 0.4-2.2kw |
| Three Phase: |
380V 0.75-7.5kw |
| Communication Control: |
RS485 |
| Vibration: |
Below 0.5g |
| Control Mode: |
-10~40 Degree |
| Humidity: |
0-95 Relative Humidity |
| Output Frequency: |
50Hz/60Hz |
| Color: |
White/Black |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Function: |
Vector Control General Used |
| Brand: |
Machtric |
Product Description

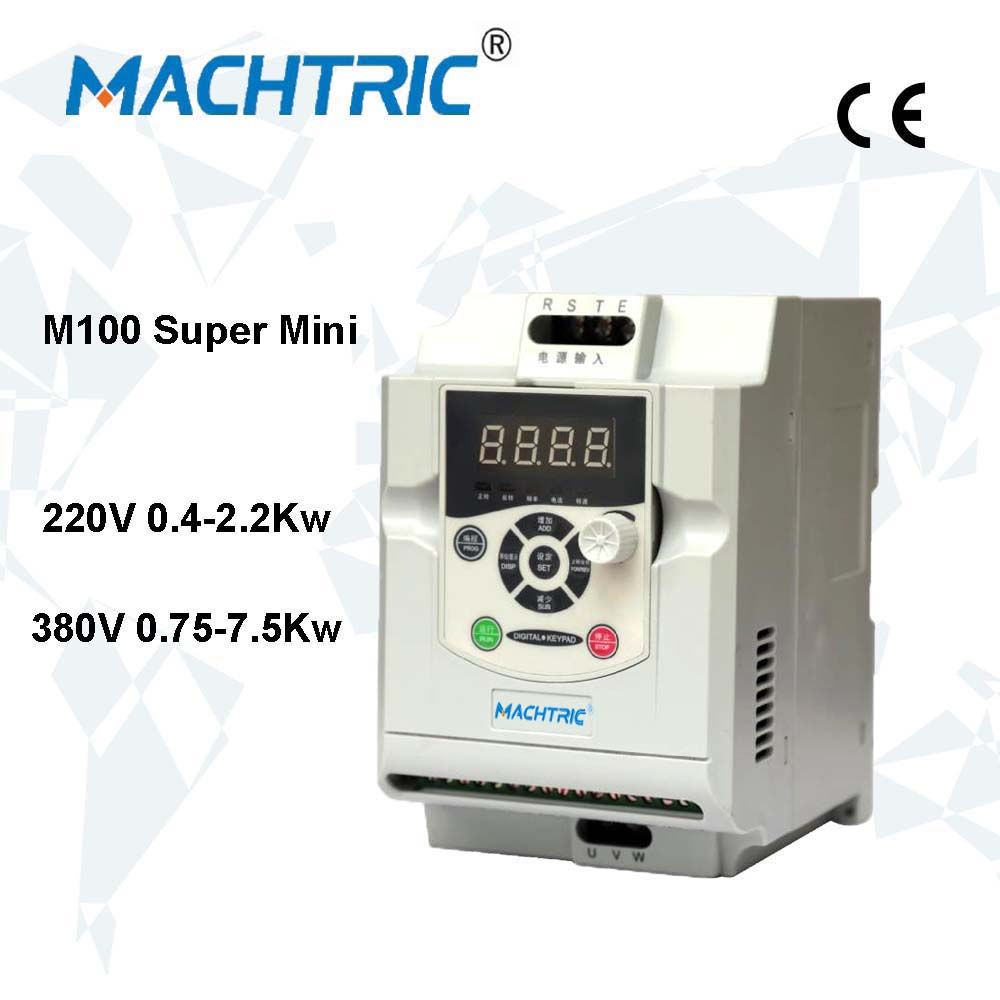

Mini Type M100 Series Frequency Inverter 3Phase 380V For Fan
Product Description:| inverter | Brake unit
| Brake resistor |
| Voltage | Capacity
(KW) | Mode | Dosage | Mode | Standard | Dosage |
One Phase
220V | 0.4 | Option | 1 | preset | 100W/150Ω | 1 |
| 0.75 | Option | 1 | preset | 100W/150Ω | 1 |
| 1.5 | Option | 1 | preset | 400W/100Ω | 1 |
| 2.2 | Option | 1 | preset | 600W/100Ω | 1 |
| 4 | With/in | 1 | preset | 500W/40Ω | 1 |
| 5.5 | With/in | 1 | preset | 500W/30Ω | 1 |
Three
Phase
380V | 0.4 | Option | 1 | preset | 100W/750Ω | 1 |
| 0.75 | Option | 1 | preset | 100W/750Ω | 1 |
| 1.5 | Option | 1 | preset | 260W/400Ω | 1 |
| 2.2 | Option | 1 | preset | 260W/250Ω | 1 |
| 4 | With/in | 1 | preset | 500W/150Ω | 1 |
| 5.5 | With/in | 1 | preset | 500W/100Ω | 1 |
| 7.5 | With/in | 1 | preset | 780W/75Ω | 1 |

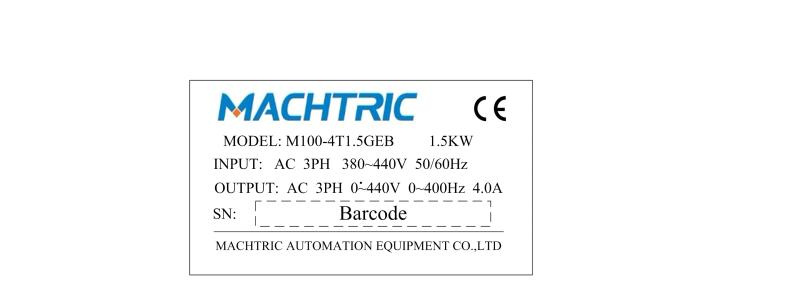

Label Information

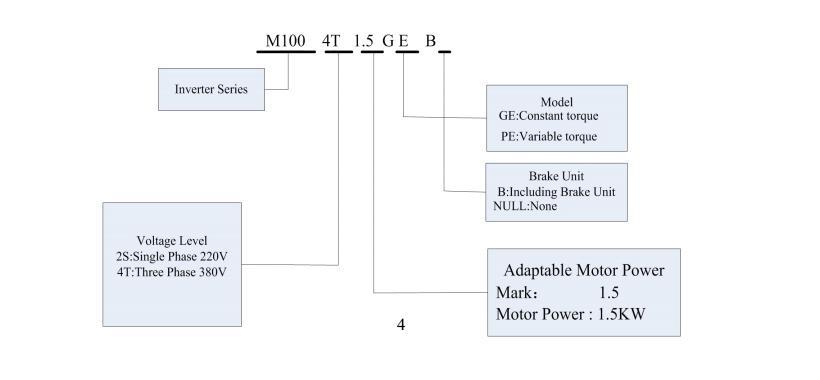

Type Difination

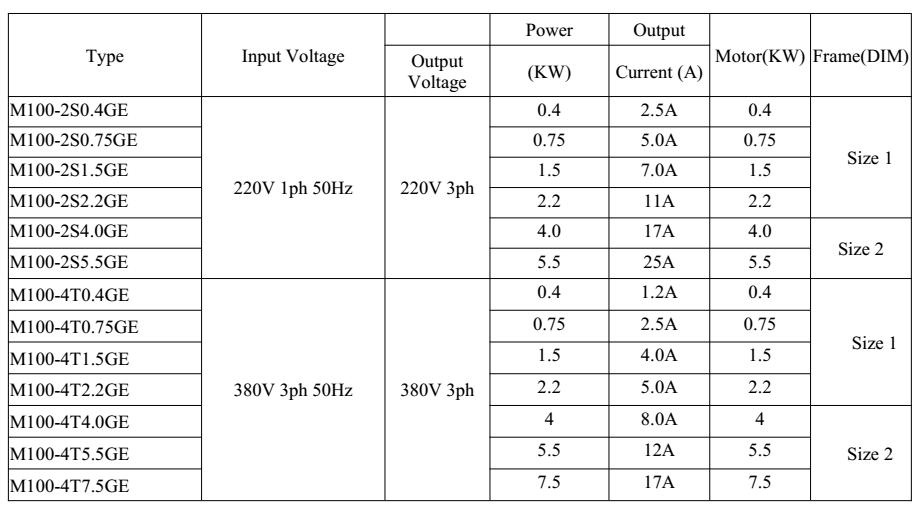

Product Specification
Application| Extruder | Ball mill |
| Elevator and lift | Textile equipment |
| Paper Machinery | Screw output device |
| Drawing Equipment | Dyeing plant |
| Injiection plastic equipment | Air Conditioning systerm |
| Machine tool equipment | Boiler system |
| Chemical fiber equipment | water supply |
| oil transportation installation | Food packaging machine |
| Chemical machine | Spinning frame,ETC. |
Why choose us? 21 years experience at produce frequency inverter
10 years OEM experience for customers
Products sold for more than 40 countries
After-sales responding within 24 hours
Our main products as below: S800E: Din rail mounted Mini size
S2100S: IP65 V/F control
Z900E: Compact size vector contorl general used S2800E: General used vector control
S900GS: Compact size general used S3800E: Vector control with close loop
M610: IP54 Waterproof
SPECIAL APPICATION: CRANE INVERTER; AIR COMPRESSOR WITH ALL IN ONE MACHINE; SERVO MOTOR DRIVE.
