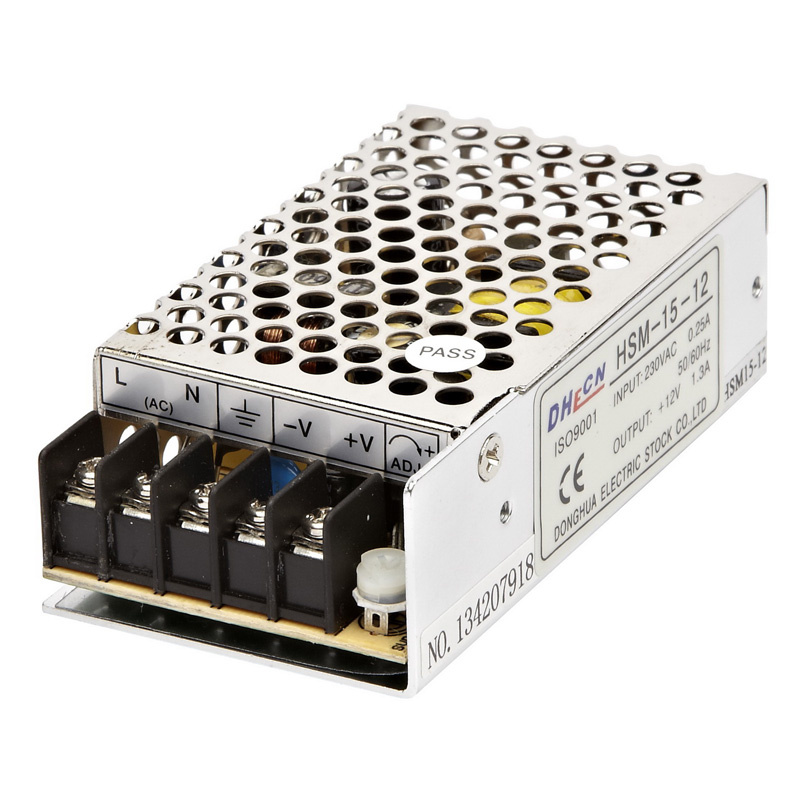

Mini-Type Universal Switching Power Supply (HSM-15)

Name: Mini-Type Universal Switching Power Supply (HSM-15)
Brand: all-electronics-online.com
SKU: 663998815
Availability: InStock
Rating: 4.9 (148 reviews)

Price:	US $ 4.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HSM-15-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Output Power:	1 - 50W
Voltage Regulating Mode:	Width Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	1 Year
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Dhecn
Input Voltage:	176~264 VAC

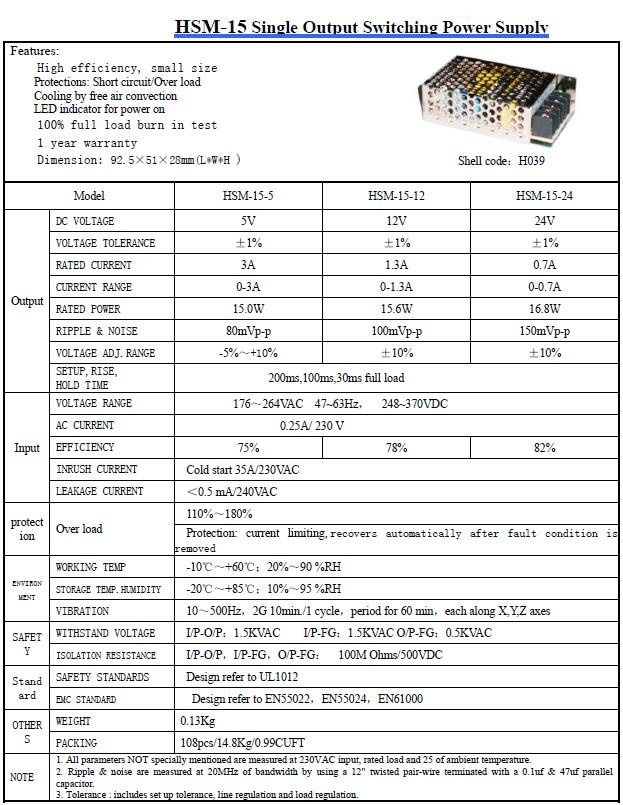

Product Description

Switch power supply

High efficiency, high reliability, low cost

Protections: Short circuit / Over load

Cooling by free air convection

LED indicator for power on

Fixed switching frequency >66KHz

1 year warranty

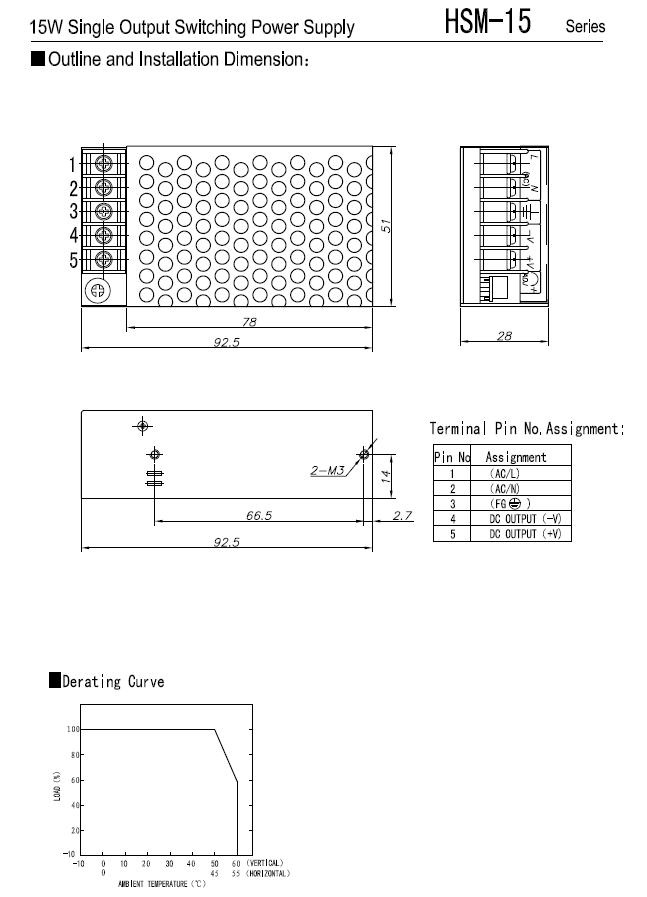

Dimensions: 99*82*36mm(L*W*H )

INPUT:

Voltage Range AC 170/264VAC 4763 HzDC 240/370VDC

AC Current 0.45A/230V

Efficiency 65%(HSM-15-5); 68%(HSM-15-15); 72%(HSM-15-24);

Inrush Current Cold start 36A/230VAC

Leakage Current <1mA/240VAC

PROTECTION

Over Load 110%160% Constant current limiting, recovers automatically after fault condition is removed

ENVIRONMENT

Working Temp., Humidity -10+6020%90 %RH(Refer to output load derating curve)

Storage Temp., Humidity -20+8510%95 %RH

Vibration 10500Hz, 2G 10min. /1cycle, period for 60 min, each along X, Y, Z axes

SAFETY

Withstand Voltage I/P-O/P2KVAC I/P-FG1.5KVAC O/P-FG0.5KVAC

Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard Design refer to UL1012

EMC Standard EN55022 CLASSA

OTHERS

Weight 0.16Kg

Packing 117PCS/18.8Kg/0.9CUFT

NOTE:

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12twisted pair-wire terminated with a 0.1μ & 47μ Parallel capacitor

3. Tolerance: Includes set up tolerance, line regulation and load regulation
