Mini Type Wall Mounted AC Variable Frequency Drive Inverter VFD
| Price: |
US $ 81/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
S800E |
| Item Name: |
DIN Rail Mount AC Variable Frequency Drive |
| Input Power 220V: |
0.4-3.7kw |
| Input Power 380V: |
0.75-315kw |
| Output Current: |
2.4A-300A |
| Maximum Frequency: |
V/F Control(0-3200Hz);Vector Control(0-320Hz) |
| Digital Setting: |
0.01Hz |
| Analog Setting: |
Maximum Frequency X 0.025% |
| Speed Range: |
1:100(Sfvc) |
| Timing Control: |
Time Range:(0.0-6500.0 Minutes |
| Communication Methods: |
RS485 |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Principle Of Work: |
V/F or Vector Control |
| Voltage Of Power Supply: |
220V/380V |
| Brand: |
Machtric |
Product Description

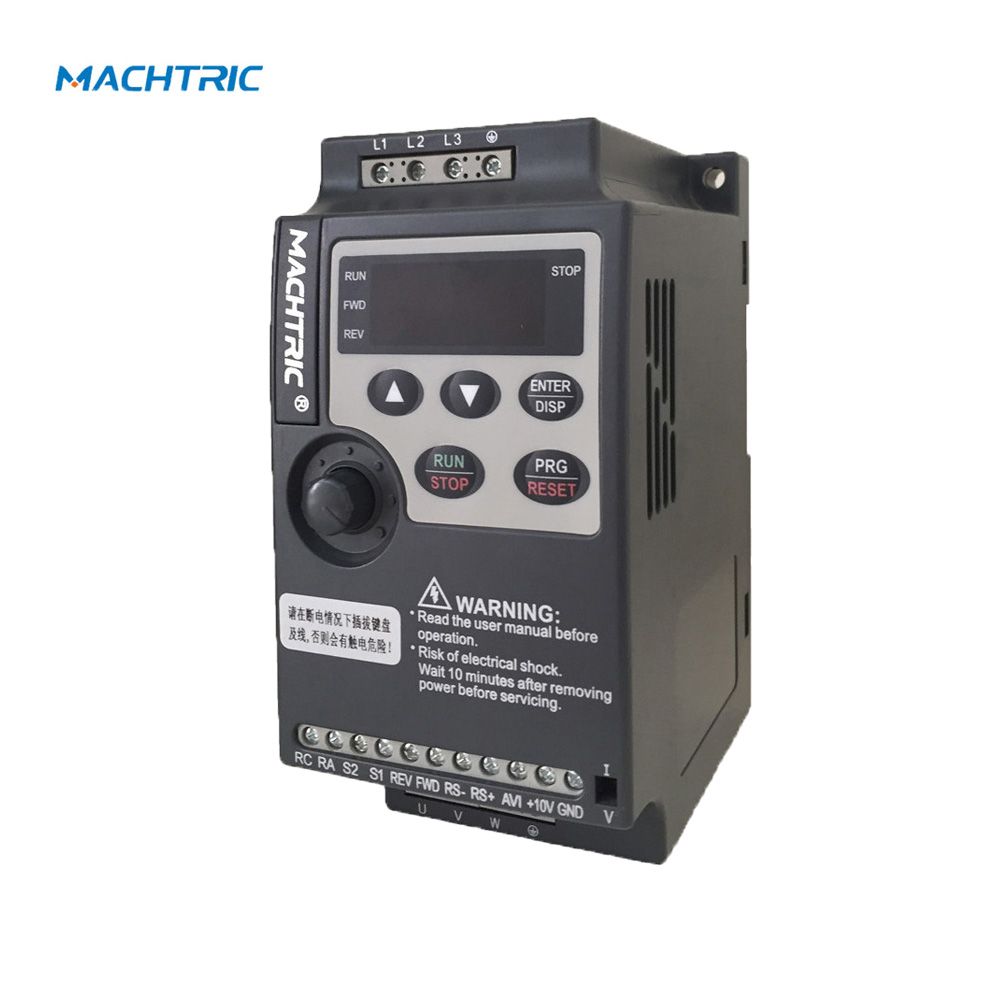

Mini Type Wall Mounted AC Variable Frequency Drive Inverter VFD
1.Product Specification:
Items | S800E |
PowerSupply | Rated voltage, Frequency | One-phase/Three-phase AC 220V 50/60Hz |
Voltage Range | 220V: 170~240V;380V:330V-440V |
Output | Voltage Range | 220V: 0~220V;380V:0-380V |
Frequency Range | 0.10~400.00Hz |
Control method | V/F control, Space vector control. |
Indication | Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/ current, DC bus voltage, the temperature and so on. |
Control SpeciAlations | Output Frequency Range | 0.10Hz~400.00Hz |
Frequency Setting Resolution | Digital input: 0.01Hz, analog input: 0.1% of maximum output frequency |
Output FrequencyAccuracy | 0.01Hz |
V/F Control | Setting V/F curve to satisfy various load requirements. |
Torque Control | Auto increase: auto raise torque by loadingCondition; Manual increase: enable to set0.0~20.0% of raising torque. |
MultifunctionalInput Terminal | Four multi-function input terminals, realizing functions including fifteen section speed control, Program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional Output Terminal | 1 multi-function output terminals for displaying of running, zerospeed, counter, external abnormity, program operation and other Information and warnings. |
Acceleration/ deceleration Time Setting | 0~999.9s acceleration/deceleration time can be set individually. |
Other functions | PID Control | Built-in PID control |
RS485 | Standard RS485 communication function(MODBUS) |
Frequency Setting | Analog input: 0 to 10 V, 4 to 20mA can be selected; |
Digital input:Input using the setting dial of theoperation panel or RS485 or UP/DOWN. |
Note:AVI terminals can be used to select an analog voltage input(0-10v) and analog current input(4-20mA) through the switch J2. |
Note: AVI terminals can be used to select an |
Analog voltage input (AV) and analog current |
Input(AI) through the switch J2. |
Multi-speed | Four multifunction input terminals, 15 section speed can be set |
Automatic voltage regulation | Automatic voltage regulation function can be selected |
Counter | Built-in 2 group of counters |
2.Product Advantage:Mini type,compact size
Easy to operate
Wall mounted or standard 35mm rail mounting
Perfect for conveyor belt,logging machine etc
220V(0.4-2.2kw)
380V(0.75-3.7kw)| Model | Power
Output | Capacity
| Current
Output | Load
Capacity | Motor
Equipped |
| (KW) | (KWA) | (A) | (60s)(A) | (KW) |
| S800-2S0.4GE | 0.4 | 1 | 2.5 | 3.75 | 0.4 |
| S800-2S.75GE | 0.75 | 2 | 5 | 7.5 | 0.75 |
| S800-2S1.5GE | 1.5 | 2.8 | 7 | 10.5 | 1.5 |
| S800-2S2.2GE | 2.2 | 4.2 | 11.0 | 16.5 | 2.2 |
3PHAC380V±15% 50/60Hz| Model | Power | Capacity | Current | Load | Motor |
| Output | (KVA) | Output | Capacity | Equipped |
| (KW) | | (A) | (60s)(A) | (KW) |
| S800-4T0.75GE | 0.75 | 2.2 | 2.7 | 4.05 | 0.75 |
| S800-4T1.5GE | 1.5 | 3.2 | 4.0 | 6.0 | 1.5 |
| S800-4T2.2GE | 2.2 | 4.0 | 5.0 | 7.5 | 2.2 |

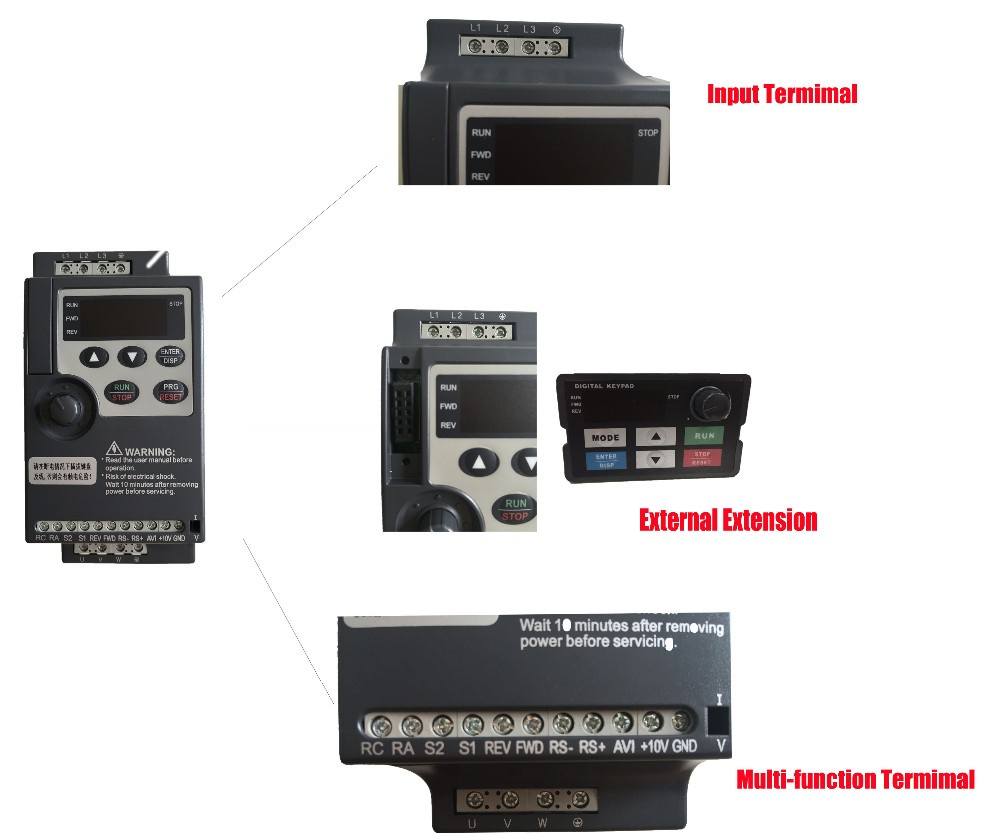

5.Product Show:

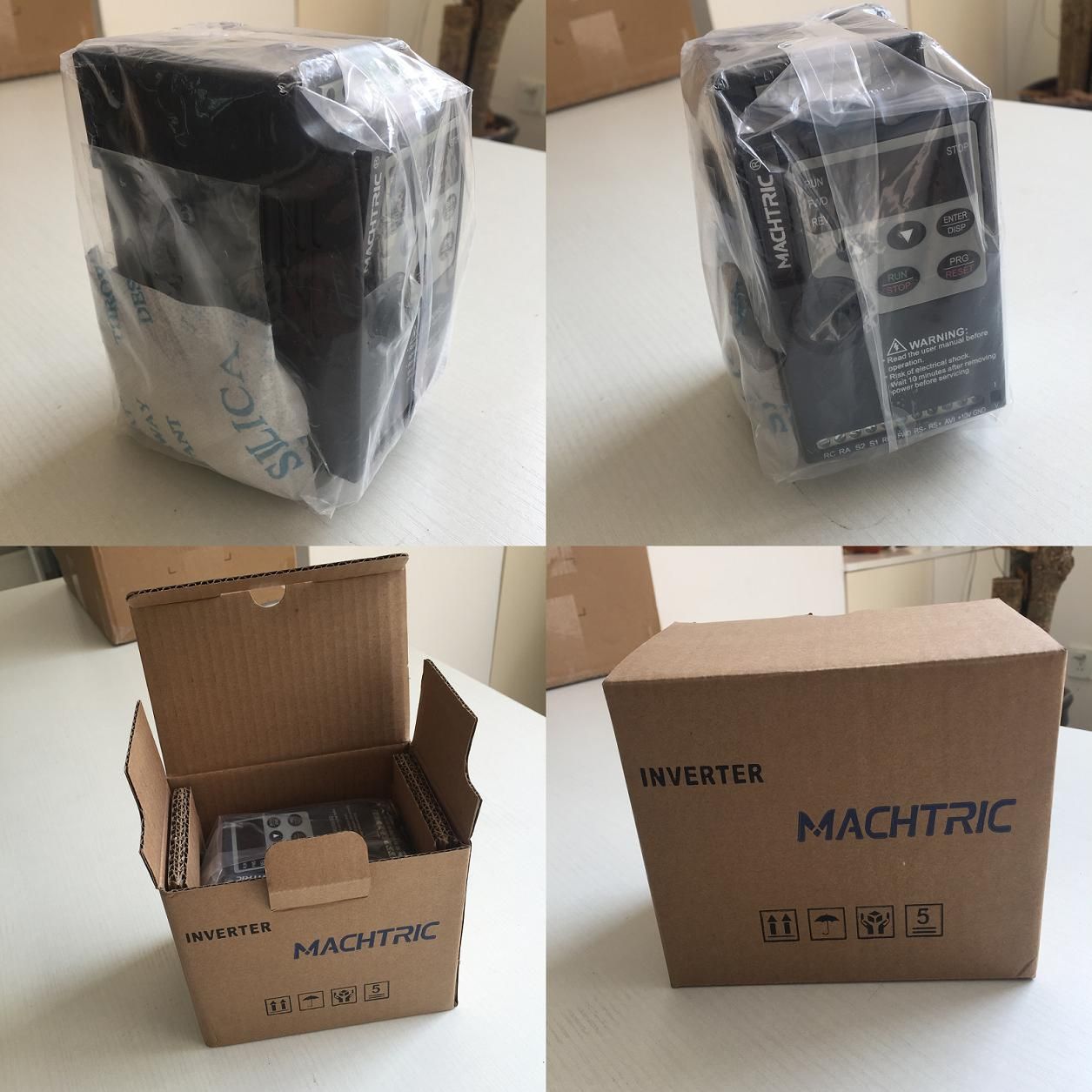

6.Packing Details:
7.Contact Details:
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
