Mini Vibrating AC Induction Motor

Name: Mini Vibrating AC Induction Motor
Brand: all-electronics-online.com
SKU: 743148565
Availability: InStock
Rating: 4.6 (34 reviews)

Price:	US $ 22.9-24/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	51K60GN-EF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	60W
Voltage:	220~230V/110V
Frequency:	50/60Hz
Rated Torque:	470mm.M
Technology:	Can Be Customized
Function:	Control
Number Of Stator:	Single-Phase
Brand:	GS
Certification:	UL\CE\RoHS

Product Description

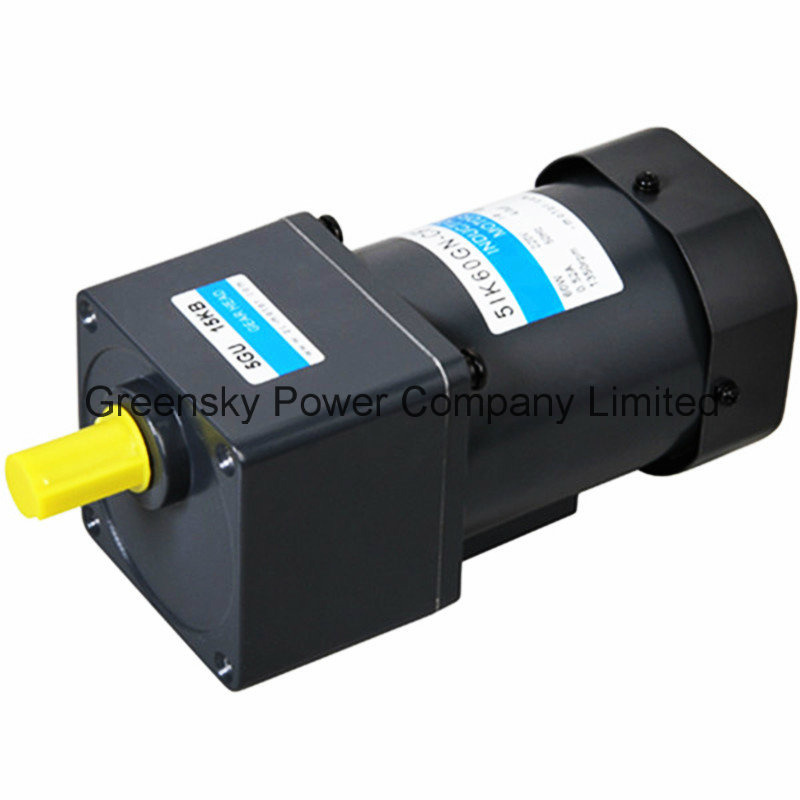

60W 90mm AC Induction Motor

Introduction

Generally, Micro Induction Motor refers to the motor rotated by the induction. Induction Motor relies on capacitor and electromagnetism when starting and rotating. Though its starting torque is not very high, it has a simple structure, high efficiency and can rotate continue.

Specifications

1. Dimensions of device: 90mm
2. Rated Power: 60W
3. Voltage: 220~230V/110V
4. CCC, CE, UL, CU
5. Can be customized

Greensky's advantage

On the site you can find a range of renewable products including AC/DC motor, AC induction motor, reversible motor, blake motor, speed motor, AC angel motor, gear motor, planetary gear box, worm gear box and their relevant components.

If you have any other questions, please feel free to contact us.

Model		Output power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
Lead Wire	Terminal Box
5RK60GN-AF (5RK60A-AF)	5RK60GN -AFT (5RK60A-AFT)	60	1ph100	50	1.26	470	470	1250	25
				60	1.70		380	1550
5RK60GN-EF (5RK60A-EF)	5RK60GN -EFT (5RK60A-EFT)	60	1ph110	60	1.05	330	380	1550	15
			1ph120			380
5RK60GN-CF (5RK60A-CF)	5RK60GN -CFT (5RK60A-CFT)	60	1ph220	50	0.55	420	470	1250	4.5
			1ph230		0.60	460
5RK60GN-HF (5RK60A-HF)	5RK60GN -HFT (5RK60A -HFT )	60	1ph220	60	0.55	420	380	1550	4.5
			1ph230		0.60	460

About Greensky Mechanical

History: Greensky Mechanical was founded in 2012 with purchasing of a 15 year old cooperative factory in Zhejiang Province. Greensky Power brought new management concept to the new joint company and increase the quality of the motors as Greensky Power only provides best quality and best service to the society.

Introduce: Greensky Mechanical Co., Ltd is a subsidiary company of Greensky Power which is producing AC and DC gear motor, gearbox and motor, and it has capability to design and develop customized product with high quality.

Philosophy: We save cost by increasing the efficiency of production and delivery. "Once and forever" is our goal to serve customers in the world. Once we do business with customer, we will do business forever.

GS motor makes the cool mechanism human by progress in thchnology and products innovation. GS bases on talents. Products are the morality of man. Wisdom and passion of us are the core power. GS

Motor has made her own stronger through the long-term experience and exerise. GS believes that we raise ourself continuously in future. GS will go on innovating forever.
