| Prod Model: |
MT09-ER80 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe |
| Brand Name: |
Topten |
| Color: |
Black |
| Size Of Main Unit: |
40*58*14.5mm |
| Weight Of The Main Unit: |
0.3 Kg |
| Working Temperature: |
-20 to 65 Centigrade |
| Humidity: |
0 to 95% |
| GSM Frequencies: |
850/1900/900/1800MHz |
| GPS Chip: |
U-Blox Chipset |
| Working Voltage: |
+6-+30VDC |
| Type: |
GPS Tracker |
Product Description
We are manufacturer of GPS tracker, GSM car alarm system, GPS Vehicle tracker, wireless GSM alarm, Mini GPS tracker & other GPS Tracking Device. Our GPS Vehicle tracker acts as a normal & GPS tracking device. It is much better than normal two-way car alarm. It is not only an advanced car alarm, but also a precise GPS tracking system.

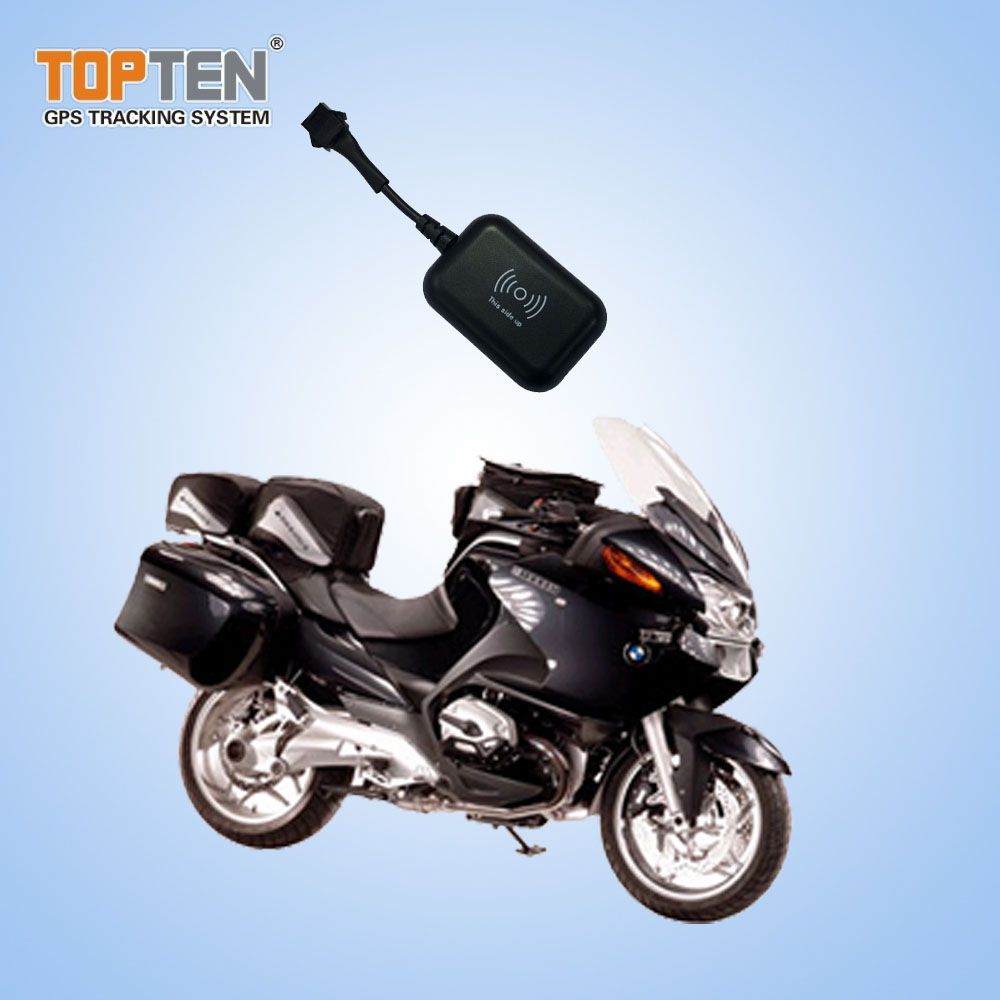

Mini Water Proof GPS Tracker Motorcycle (MT09-D8)
1. Track on command or by time interval or by distance.
2. Arm/disarm by SMS or phone call.
3. Check the car's real physical address, such as city name & street name;
4. Track by mobile SMS to get the latitude, longitude, speed, direction & odometer etc.
5. Check the location directly by the Google map's URL;
6. Online website tracking by GPRS data network;
7. Over-speed alert, Geo-fence alert;
8. Cut off engine to stop the car safely by SMS/GPRS(optional);
9. Built-in shock sensor for power saving & triggering alarm
10. Wide working voltage range, from 6V-30VDC, suitable for motorcycle or car.
| GSM module | MTK program, GSM quad-band |
| GPS Module | U-blox chipset |
| GPS sensitivity | -159dB |
| C/A Code | 1.023MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| GPS frequency | L1, 1575.42MHz |
| GPS Position Accuracy | 10 meters, 2D RMS |
| GSM Position Accuracy | Later will realize |
| Velocity Accuracy | 0.1m/s |
| Time Accuracy | Synchronized to GPS time |
| Default datum | WGS-84 |
| Hot start | 1sec., average |
| Warm start | 38sec., average |
| Altitude Limit | 18, 000 meters (60, 000feet) max. |
| Velocity Limit | 515 meters/second (1000knots) max. |
| Acceleration Limit | Less than 4g |
Delivery:
<500pcs: Products will be delivered within 3 working days upon receipt of payment.
>=500pcs: Products will be delivered wind two weeks upon receipt of payment.
Warranty:
All products are provided with 12 months warranty and 3-year maintenance.
In case of any defective product can send it back for reparing.
TOPTEN is original manufacturer of GPS tracker and car alarm system. Our products are:
GPS Car Tracker
GPS Motorcycle Tracker
GPS Tracker for Fleet Management
OBD GPS Tracker
Mini GPS Tracker
Two Way Car Alarm System
GPS Tracker with Camera and RFID
We have our own R&D team developing 3-5 new models each year. Products are with CE, RoHS, FCC certificate.
We not only provide devices, but also professional technical support and satisfactory after-sales service.
Please feel free to contact us for details.
Office phone: +86 020 3835 1400
Guangzhou Topten Electronics Factory is a leading and professional enterprise which specializes in GSM car alarm system, GPS tracking system and other security products in China.
Topten Electronics Technology Limited is the subsidiary company of Guangzhou Topten Electronics Factory.
Our key products are GPS/GSM car alarm system, GPS/GPRS vehicle tracking system, GSM car alarm system.Parts of our products have gained the CE and FCC approval.It is warmly welcomed by customers from more than 95 countries in Africa, Middle East, Europe and Southeast Asia.
We have much experience in security field, especially in car alarm and GPS vehicle tracking, which makes us experts in providing reliable and cost-effective solutions for monitoring and protecting vehicles.We have strong force in continuous research and development, which enables us to be the leading manufacturer in GPS tracking system and GSM car alarm.
We adopt an advanced management system to ensure a qualified working team and the promptness to act to the market.Strict quality control is executed in each link of the whole production process.Every step from materials to semi-finished items to completed products is operated according to the requirements of ISO9001:2000 quality management system.
With the best service, high quality products, competitive price and attractive functions, we are sure that you will be satisfied with our cooperation.We sincerely hope to establish the friendly and mutual-beneficial partnership with you in the coming future.
