| Prod Model: |
GPS Tracker TK102 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Products Type: |
GPS Tracker 102 |
| Feature: |
Waterproof, Magnetic, Portable |
| OEM And ODM: |
Yes |
| Warranty Time: |
12 Months |
| Packaging: |
40 Unit /Carton |
| Shipment: |
by Express or by Air |
| Delivery Time: |
2-3 Business Days |
| Function: |
Vehicle/Person |
| Certificate: |
CE FCC ISO |
| Tracking System: |
SMS/GPRS |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Chip: |
SiRF |
| Screen Size: |
No Screen |
| Brand: |
Coban |
Product Description

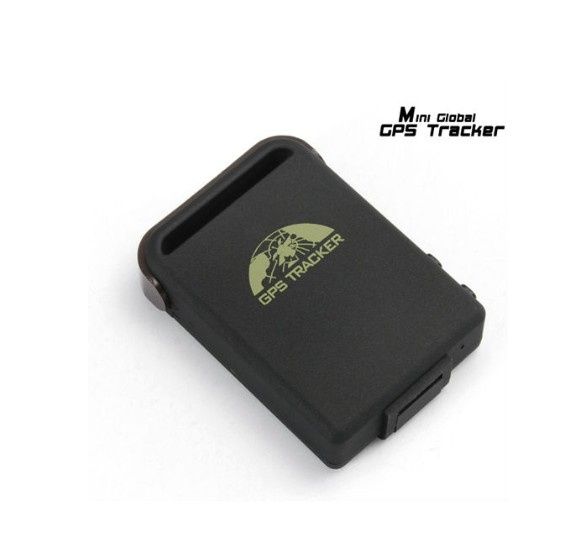

TK102
Waterproof
With Memory Slot
Inbuilt Shake Sensor
Stylish Design, with magnets inside
4 Bands, can be used all over the world
OEM Available (change functon, color, logo, gift box)
Model: GPS tracker TK-102,TK102-2
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or internet.
2 Applications
* Vehicle rental / Fleet management etc
* Powerful magnet + water proof, adsorbing in the hidden place of car for tracking secretly.
* Protect child / the old / the disabled / pet etc.
* Provide peace-of-mind for businessmen
* Personnel Management
* Criminals Tracking
Gps tracker gps tracking device car gps tracker GPS vehicle tracker Wholesale vehicle gps tracking device support Built-in GPS/GSM antenna GPS102 gps tracking device
3. GPS102 gps features :
1 ,Mini size ( Dimension: 46*64*17mm , Weight: 50g ).
2. Waterproof + Magnetic Shell .
3. Built-in antenna, built-in MIC for voice monitoring.
4. Can setup 5 authorized numbers.
5. SOS panic button .
6. Geofence , movement/over speed/low battery alarm/Shock alarm.
7. Built-in 1MB memory , store 16,000 Tracking info .
8. Support 8GB MicroSD card memory .
9. Auto track at time interval.
10.Get absolute address with street name by SMS.
11. Free pc-based tracking software .
12.Online web-based tracking platform www.gpstrackerxy.com.
Application
1. Vehicle for rental or manage of outside equipment, etc.
2. Protect the elder, kid, employee and pet, etc.
3. Protect the businessmen.
4. Manage the outworker.
5. Covert Tracking.
Package Include
* Mini Global GPS Tracker
* Battery Charger
* Power Adaptor
* 2 x Batteries
* Battery Cover with Magnet
* Waterproof Plastic Holder Bag
* Software CD
* English Manual
| COBAN TK102B Specifications |
| Network | GPRS/GSM |
| GSM Frequency | 850/900/1800/1900Mhz |
| GPS Module | SIRF3 chip |
| GPS Sensitivity | –159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Car charger | Input: DC12_24V / Output:DC5V |
| Wall charger | Input: AC110 - 220V / Output:DC5V |
| Backup battery | Chargeable 3.7V 800mAh Li-ion battery |
| Storage Temp. | –40°C to +85°C |
| Operation Temp. | –20°C to +65°C |
| Humidity | 5%--95% non-condensing |
| Dimension | 87*54*26mm |
| Weight | 50g |
| PST-PT102B Features & Functions |
| Tracking ways | Tracking by SMS |
| | Track by making a missed call to the tracker |
| | Track by Preset Interval |
| | Track by free PC version GPS tracking software |
| | Track by web based GPS tracking software(extra buy) |
| Remote operation function | Monitor |
| Basic function | Change time zone |
| | Support Location based service (LBS) |
| | GPS drift suppression |
| | Data logging and Data Load |
| | Sleep Mode |
| | Reset Hardware |
| Inquiry function | Absolute street address by SMS |
| | Forward the third parties' message |
| | Charges Inquiry |
| | State Checking |
| | Check IMEI |
| Alarm function | Low battery alarm |
| | SOS alarm |
| | Geo-fence alarm |
| | Movement alarm |
| | Over speed alarm |
| | Shock Sensor alarm |
| TK102B Package List |
| Tracker 102B | x1 |
| Charge Adapter | x1 |
| Battery Charge | x1 |
| Battery | x2 |
| USB Cable | x1 |
| Magnet Back Cover | x1 |
| Waterproof Bag | x1 |
| User Manual | x1 |
| CD | x1 |
| TK102B Optional Accessories |
| Car charger |
| Hard-wire charger |
| Web based GPS tracking software |
| Services |
| 1 years product warranty since the date of shipping, unlimited after-sales service |
| Delivery time: 1-3 days |
| Payment: Bank wire transfer, Western Union |
| Shipping: Express(DHL, UPS, FedEx, TNT etc), Air Cargo, by sea, HK post, China Post, EMS |
24 hours timely tech support via email, skype, MSN, whatsapp, phone etc
|
