Miniature Circuit Breaker Accessories

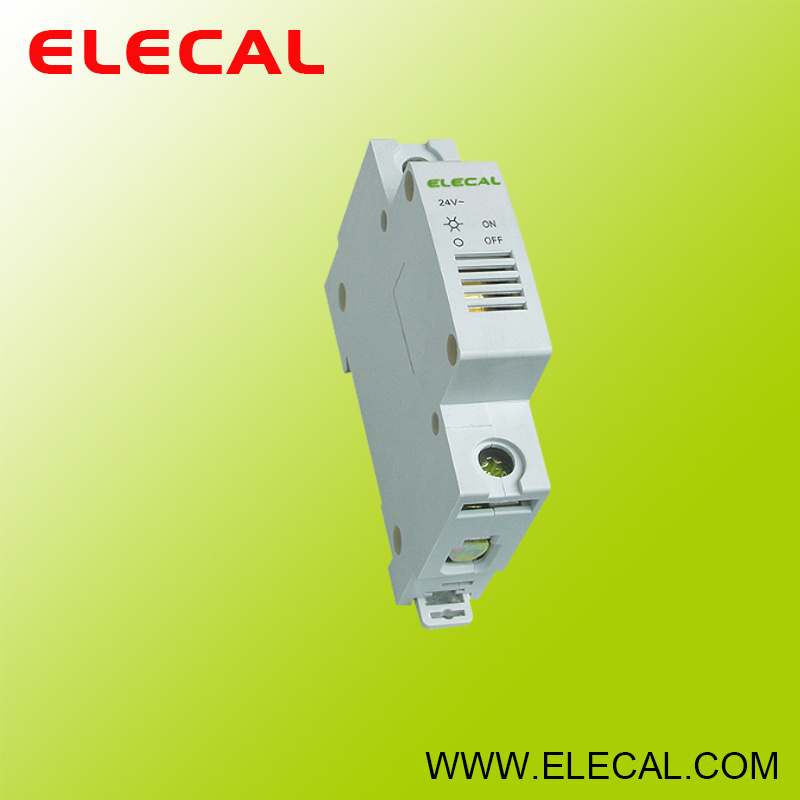

Name: Miniature Circuit Breaker Accessories
Brand: all-electronics-online.com
SKU: 765040465
Availability: InStock
Rating: 4.4 (143 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	2
Certification:	CE

Product Description

1.Application

SU213N is applicable to a line of AC 50Hz/60Hz, 230V in single pole, 400V in double, three,four poles for protecting overload and short circuit, and rated current up to 63A. It can also beused for infrequent line conversion under the normal condition.The breaker is applicable to light-ing distribution system in industrial enterprise, commercially district, high-rise building and dwell-ing house. It conforms with the standards of IEC60898.

2.Main Technical Parameter

Type	SU213N
Pole	1P	2P, 3P, 4P
Rated current (A)	1,2,3,4,6,10,16,20,25,32,40,50,63
Rated voltage(V)	230	400
Ambient temperature	-5^oC~+40^oC
Type of Instantaneous release	B,C,D
Rated short circuit breaking capacity Icn(KA)	10

3.Applicable conducting wire

Rated current(A)	Nominal cross section of wire mm2
1-6A	1
10A	1.5
16,20A	2.5
25A	4
32A	6
40,50A	10
63A	16

4.The over-current protection property

Ambient Temperature	Initial Status	Test Current	Expected Result	Expected Result	Note
30±2^oC	Cold position	1.13In	t≥1h	Non-release	-
	Carried out immediately after previous test	1.45In	t<1h	Release	-
	Cold position	2.55In	1s(In≤32A)	Release	Current smoothly rises to specified value within 5s
	Cold position	2.55In	1s(In>32A)	Release	Current smoothly rises to specified value within 5s
-5^oC~+40^oC	Cold position	3In	t≥0.1s	Non-release	Type B
	Cold position	5In	t<0.1s	Release	Type B
	Cold position	5In	t≥0.1s	Non-release	Type C
	Cold position	10In	t<0.1s	Release	Type C
	Cold position	10In	t≥0.1s	Non-release	Type D
	Cold position	20In	t<0.1s	Release	Type D

Our comany produce many electric appliance: Distribution box. Circuit breaker. Contactor. Relay and so on

We have an excellent working team. We produce every electric appliance carefiully and responsibly

Our electric appliances are used all over the word. We happily supply best productions and best service for every one

We hope cooperate with every friend from the word
