| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Payment: |
T/T, L/C, Paypal, Western Union |
| Quality: |
Best |
| Brand: |
Suntree |
| Quality Assurance: |
3 Years Warranty |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Installation: |
Fixed |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
Moulded Case Circuit Breaker |
Product Description
Best quality circuit breaker
Detailed Product Description
1)High quality L7 MCB
2)with UL CE RoHS CB SAA Attestation
3)The Most Comparative Price
4)Different type for Selection...
L7 MCB:
Australia SAA and RoHS certification
OEM SERVICE factory circuit breakers
1) L7-63 Miniature circuit breaker(MCB) belong to the advanced level of the world.
2) They have the characteristc of small size, high sensitivity, long using life and strong protective function for short circuit and overload.
3) The products are the newest generation and feature of high protective grade, high breaking capacity, good reliability of sensitive action and convenient use.
4) It is generally used for illumination and distributiion in industry, commerce and buildings.

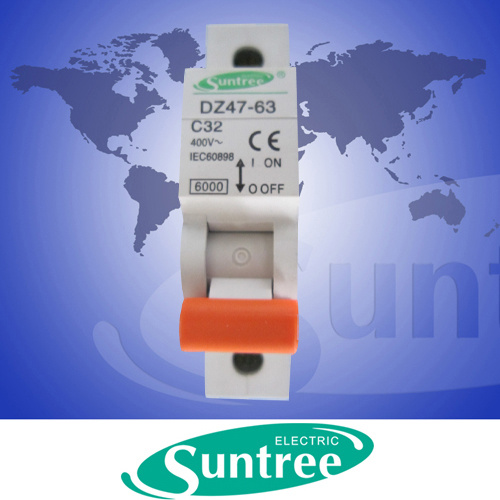

5) We supply all range of MCB, such as DZ47-63(C45), C60, C65, L7, DPN, etc. Please contact us for further information, we are interested to develop business relationship with you.
6). Rated current of frame class (Inm): 63A
7). Rated voltage (Ue): 50/60Hz, 230V/440V
8). Rated current (In): 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A
9). Breaking capacity: 6000A, 10000A
10). Installation: On symmetrical DIN rail
11). Standard: IEC1008, GB16916.
12). The connecting terminal with both sides double function can simultaneously connect bus row and single-core conductor.
13)It is provided with contact shape indictor
|
Test |
Type |
Test Current |
Original State |
The tripping type does not release the time limit |
Result |
Remark |
|
A |
C, D |
1.13In |
Cold State |
T≥ 1h (In≤ 63A) |
No trip |
|
|
B |
C, D |
1.45In |
Following A Test |
T< 1h (In≤ 63A) |
Trip |
Current up steadily in 5 |
|
C |
C |
8In |
Cold State |
T≥ 0.1s |
No trip |
Shut auxiliary switch and connect the power |
|
12In |
T< 0.1s |
Trip |
|
D |
D |
10In |
Cold State |
T≥ 0.1s |
No trip |
|
14In |
T< 0.1s |
Trip |
