Product Description
Product Description

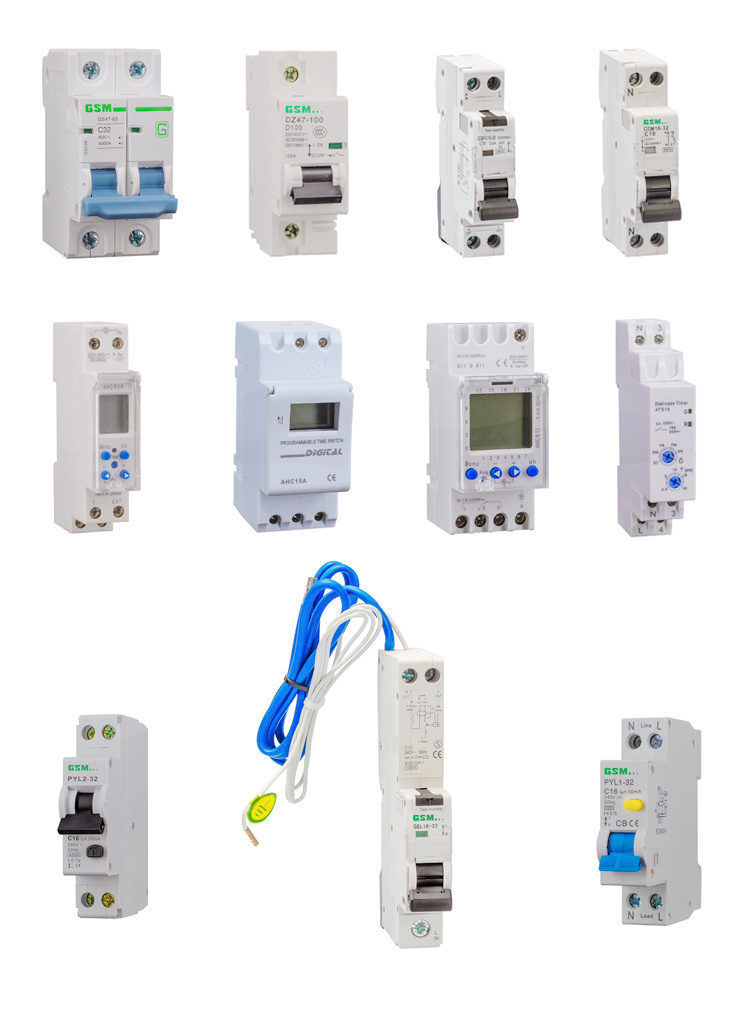

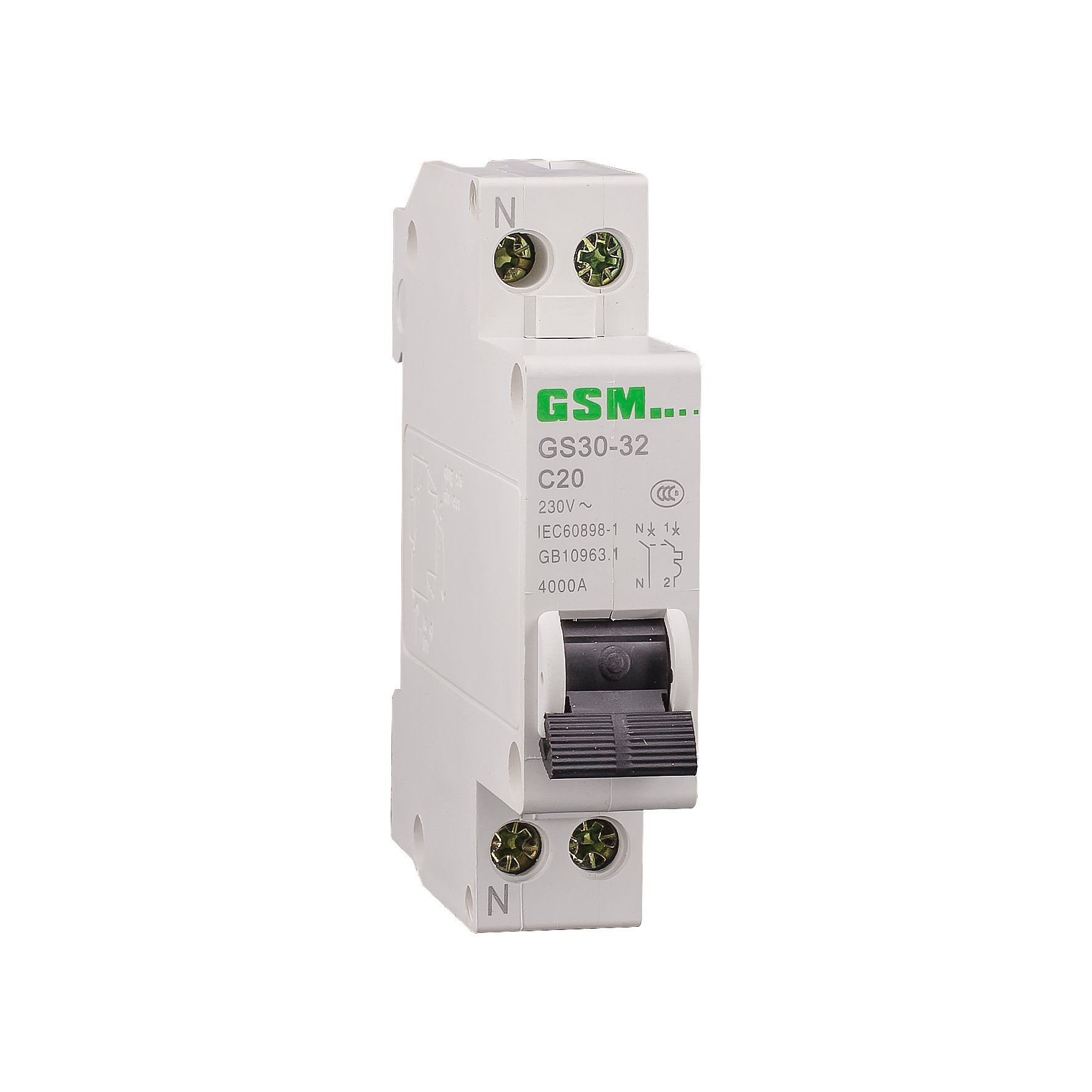

Miniature Circuit Breakers (MCB) which can be used in low voltage electrical installations to protect conductors, switchgear, and electrical equipment in general against overload and short-circuit.
| 1.Specifications |
|
|
| Standard |
| IEC/EN 60898-1 |
Electrical
features | Rated current In | A | 6,10,16,20,25,32 |
| Poles | P | 1P+N |
| Rated voltage Ue | V | 230VAC |
| Insulation voltage Ui | V | 500 |
| Rated frequency | Hz | 50/60 |
| Rated breaking capacity | A | 4500 |
| Rated impulse withstand voltage(1.2/50) Uimp | V | 6000 |
| Dielectric test voltage at ind. Freq. for 1min | kV | 2 |
| Pollution degree |
| 2 |
| Thermo-magnetic release characteristic |
| B,C,D |
Mechanical
features | Electrical life | t | 2000 |
| Mechanical life | t | 2000 |
| Contact position indicator |
| Yes |
| Protection degree |
| lP20 |
| Reference temperature for setting |
|
|
| of thermal element | C | 30 |
| Ambient temperature | C | From -5~+40 |
| (with daily average < 35 ) |
|
|
| Storage temperature | C | -25~+70 |
| Installation | Terminal connection type |
| Cable /Pin-type busbar |
| Terminal size top /bottom for cable | mm2 | 25 |
| AWG | 18~3 |
| Terminal size top/bottom for busbar | mm2 | 25 |
| AWG | 18~3 |
| Tightening torque | N*m | 2 |
| ln-Ibs | 18 |
|
|
|
| Mounting |
| On DIN rail EN 60715(35mm)by means fast clip device |
| Connection |
| From top and bottom |
Free samples can be provided!!!
Product Description of the MCB
MCB Electrical Features
Rated current In: 1, 2, 3, 4, 6, 10, 16, 20, 25, 32A
Poles: 1P+N
Rated voltage Ue: 240/415V
Insulation voltage Ui: 500V
Rated frequency: 50/60Hz
Rated breaking capacity: 4500A
MCB Energy limiting class: 3
Rated impulse withstand voltage(1.2/50) Uimp: 4000V
Dielectric test voltage at ind. Freq. For 1 min: 2kV
mini circuit breaker Pollution degree: 2
MCB Thermo-magnetic release characteristic: B, C, D
Mechanical Features of mini circuit breaker
MCB Electrical life: 8, 000
MCB Mechanical life: 20, 000
Contact position indicator: Yes
mini circuit breaker MCB Protection degree: IP20
Reference temperature for setting of thermal element: 30º C
Ambient temperature (with daily average≤ 35º C): -5º C...+40º C
Storage temperation: -25º C...+70º C
Installation of mini circuit breaker
Terminal connection type: Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cable: 25mm2 18-3AWG
Terminal size top/bottom for busbar: 25mm2 18-3AWG
Tightening torque 2.0 N*m 22 In-Ibs.
Mounting: On DIN rail EN 60715 (35mm) by means of fast clip device
MCB Connection: From top and bottom
Combination with accessories
MCB Auxiliary contact: Yes
Shunt release: Yes
Under voltage release: Yes
MCB Alarm contact: Yes
