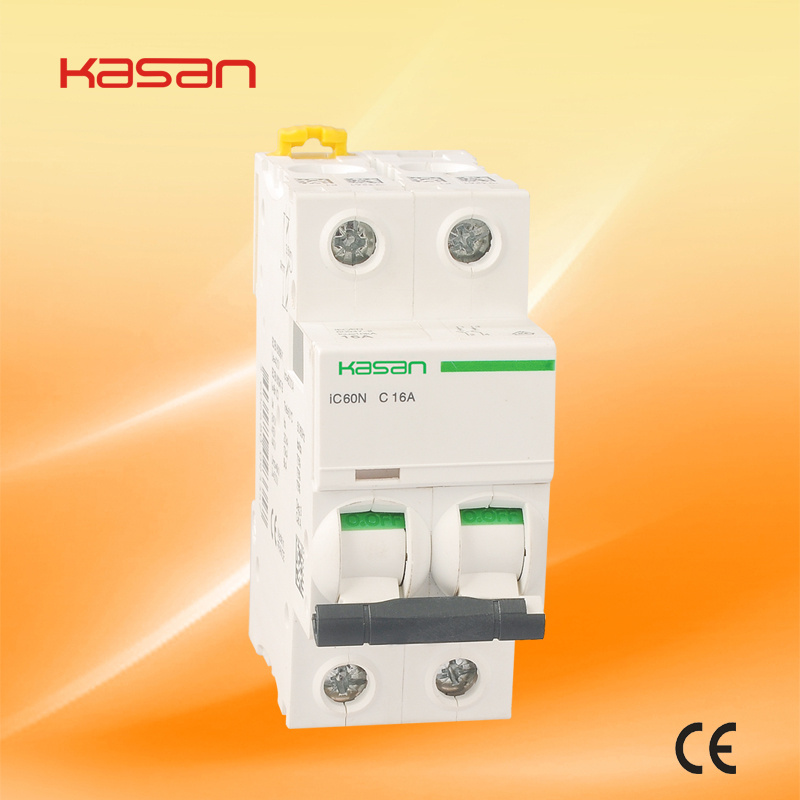

Miniature Circuit Breaker (IC60N)

Name: Miniature Circuit Breaker (IC60N)
Brand: all-electronics-online.com
SKU: 677466852
Availability: InStock
Rating: 4.4 (148 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	iC60N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Installation:	Fixed
Structure:	MCB
Poles Number:	2
Certification:	CCC

Product Description

Specifications

High Quality and very nice appearance.
Good price as good material ensure.
Have CE certification.
High breaking capacities.

With exclusive features, the Acti 9 iC60 DIN rail MCB is definitely geared to absolute safety and improved continuity of service.

VisiSafe : for safe operation and maintenance work on circuits.
Class-2 insulation : continuous safety for operators and unqualified personnel.
VisiTrip : detects faulty Miniature Circuit-Breaker outgoers quickly and reduces intervention time.
Add-on fully immune earth leakage protection devices : better continuity of service, especially in polluted environments and networks.
Nominal current: 1 to 63 A
Large choice of breaking capacities up to 100 kA and tripping curves: B, C, D, Compliance with standards IEC/EN 60898 or IEC/EN 60947-2,
Full coordination with Acti 9 range Residual Current Devices (RCDs) and Compact NSX Moulded Case Circuit Breakers (MCCBs),
Suitable for isolation in accordance with industrial standard IEC 60947
Operating voltage: up to 440 V AC, insulation voltage: 500 V
Optional add-on earth leakage modules: iC60 Vigi,
Optional auxiliaries: indication of state and tripping, shunt tripping, undervoltage tripping, overvoltage tripping.

Pole No.	1P, 1P+N, 2P, 3P, 4P
Rated Voltage	AC 230/415V
Rated Current (A)	1, 2, 3, 4, 6, 10, 13, 16, 20, 25, 32, 40, 50, 63
Tripping Curve	B, C, D
Rated Frequency	50/60Hz
Ultimate Short-circuit Capacity	6kA
Rated impulse withstand voltage	6 kV EN 60947-2 6 kV IEC 60947-2
Connection terminal	Screw terminal, Pillar terminal with clamp
Mounting	Removable comb busbar installed, DIN rail
