Miniature Compression Load Cell (B106)

Name: Miniature Compression Load Cell (B106)
Brand: all-electronics-online.com
SKU: 820013145
Availability: InStock
Rating: 4.5 (141 reviews)

Price:	US $ 80/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B106
Pattern:	Load Button
Out-Wire:	5 Wires
Feature:	Load Button with Basement
Certification:	SGS

Product Description

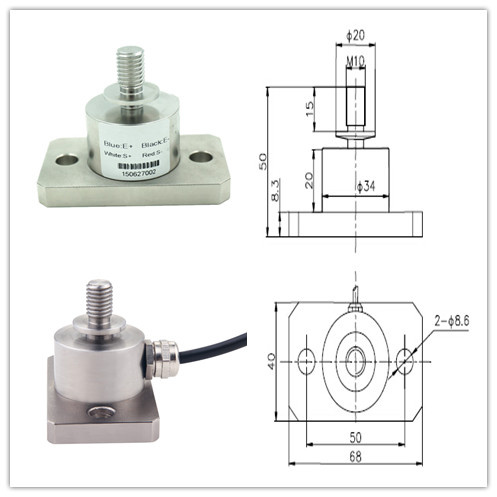

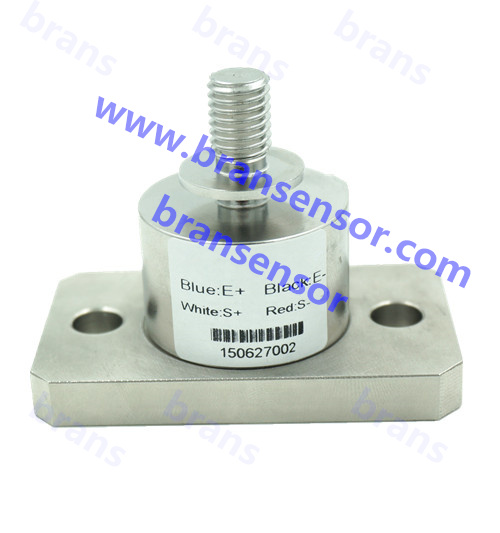

1.    Name: 1KN,2KN,5KN Miniature force sensor

2.    Type: B106

3.    Specification
The B106 micro force transducer can be used to measure static compressive force. , Transducer Electronic Data Sheet. This is a high accuracy load cells with mini size.

Miniature Load Button is built for press or inline compression applications. The standard B106 has a robust construction available in 17-4 PH stainless-steel, with a 34mm in outside diameter and a 10 ft [3 m] #29 AWG, 4 conductor spiral shielded Teflon cable. You will also find options for external matched output readily available.
Nominal forces ranging from 1kN to 5KN are available as well as variable cable lengths and, on request.

The B106 Miniature Load Button offers high accuracy and high stiffness. It has a nonlinearity of ± 0.2% and a deflection of 0.002 in nominal. The standard B106 can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24 hour shipping. Similar to our entire Load Cell product line, this model is manufactured in China and uses metal foil strain gauge technology.

4. Product Highlights:

Ultra fast response
Robust strain relief
Very Low deflection
17-4 PH stainless-steel construction
For use in compression
Direction of force: Compression
Accuracy class 0.5
Nominal rated forces: 1KN to 5KN
Configurable with different cable lengths, plug assembly

5. Datasheet

1	Specifications	Technique
2	Capacity	1KN, 2KN, 5KN
3	Rated output	1.5±10%mV/V
4	Zero balance	±2%F.S.
5	Non-linearity	0.5%F.S.
6	Hysteresis	0.2%F.S.
7	Repeatability	0.2%F.S.
8	Creep(30min)	0.2%F.S.
9	Temp.effect on output	0.05%F.S./10ºC
10	Temp.effect on zero	0.05%F.S./10ºC
11	Input impedance	800~1100Ω
12	Output impedance	800~1100Ω
13	Insulation	≥5000MΩ/100VDC
14	Recommended excitation	5V
15	Maximum excitation	10V
16	Compensated temp range	-10~60ºC
17	Operation temp range	-20~80ºC
18	Safe overload	150%F.S.
19	Ultimate overload	300%F.S.
20	Cable size	φ2×1500mm(Teflon)
21	IP Class	IP66

Although load button load cells are traditionally not known for their high accuracy, Brans engineers have dispelled this concept by continuously improving the accuracy of this product. And all of these load button load cells could be customized according to clients' desing and datasheet.

Welcome to Brans and work together with us. www.bransensor.com
