Miniature Compression Load Cell Chinese Micro Load Cell
| Price: |
US $ 90/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
LFC-13 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Product Name:

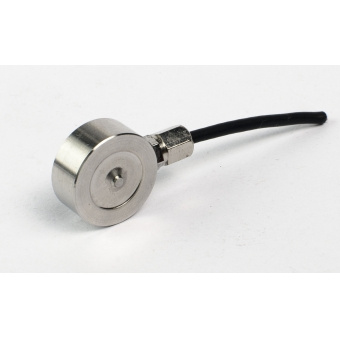

Miniature Compression Load Cells
Features:
1. Miniature Compression Load Cells are small size with 13mm diameter, and the minimum height is 3.9mm.
2. These load cells are designed as button model and can be installed by side-fixed.
3. This kind of load cells utilizes strain gauge technology.
4. The load cells are connected to the flexable cable which cab be used drag chains.
Applications:
LFC-13 Miniature Compression Load Cells are applied in force measurement in small space installation, such as feeling tester for keyboard switch, pressure measurement for hot and cold lamination machine, and grasping force measurement for robotic hands.
Overall Dimensions:
Capacity:
5, 10, 20, 30, 50, 100, 200, 300, 500kg
Technical Specifications:
| Rated Output | 1.0~1.5mV/V | Material | Stainless Steel 17-4PH |
| Zero Balance | ±2%F.S. | Insulation | ≥5000MΩ/100VDC |
| Non-linearity | 1.0%F.S. | Recommended Excitation | 5V |
| Hysteresis | 1.0%F.S. | Maximum Excitation | 10V |
| Repeatability | 1.0%F.S. | Compensated Temp Range | -10 ~ 60ºC |
| Creep(30min) | 1.0%F.S. | Operating Temp Range | -20 ~ 80ºC |
| Temp Effect on Output | 1.0%F.S./10ºC | Safe Load Limit | 120% |
| Temp Effect on Zero | 1.0%F.S./10ºC | Ultimate Load Limit | 150% |
| Input Impedance | 350 ± 5Ω | Cable Size | Φ2 × 2m |
| Output Impedance | 350 ± 5Ω | Wire Connection | Ex+ : Red; Ex- : Black; Sig+ : Green; Sig- : White |

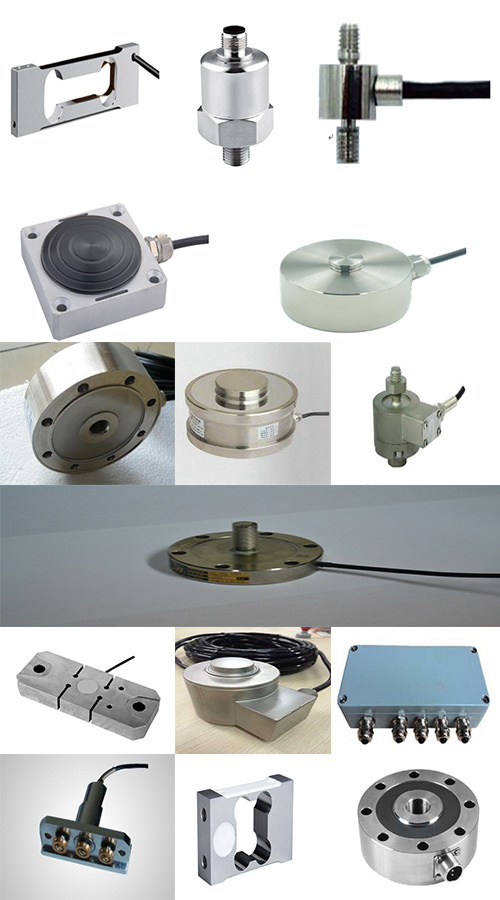

Our main products are micro force sensors, load cells, pressure sensors, control instrumentation and automation system supplies.
Our products can be applied in the traditional force measurement field, and also widely used in the industrial automation production line, and the new fields, i.e. metallurgy, etc. With our services and quality, we have earned a very high reputation in the domestic, and also our products are exported to the customers worldwide including Germany, Italy, the United States, Russia, Australia and other regions.
If you want to get more information,please feel free to contact me
Sinoder Group is a joint-stock machinery developing enterprise group, integrating industrial scientific research, production, marketing, installation, commissioning and training service.
Sinoder group company obtained outstanding member of Chinese Cereals and Oils Association and of Chemical Association, approved by the State Quality and Technical Supervision of "Pressure Vessel Manufacturing License" "Pressure Vessel Design License" "Pressure Piping Installation License" "Pressure Piping Design License", with many years of grain and oil machinery, chemical equipment and the advanced mechanical design, manufacture, installation history.
Sinoder Group establish a long-term technical cooperation relations with School of Food Science and Technology, Engineering Research Center of Henan University of Technology, Xi'an Oil Grease Institute, Zhengzhou Machinery Research Institute and our customers, ensure the technical content of product and process innovation.
We have 368 staffs including more than 42 professional technical personnel. Company organizations are: Engineering technology department, marketing services dept., integrated management dept., financial management dept., machinery manufacturing center and the research and development center and other departments. We have 25 engineering design staff. All design are by computer operations, and passed the ISO9001-2000 quality management system certification forming a set of scientific research, production and development together.
Scientific and technological innovation, excellent quality, customer satisfaction is our consistent business principle, service is company's long-term commitment.
In recent years, the company has completed hundreds of projects involving the exploitation of oil pretreatment, extraction, oil refining, animal oil refining processing, small varieties of oil deep-processing, bio-diesel and other technologies, the projects cover more than 20 domestic provinces and cities, autonomous regions and export to South Africa, Ethiopia, South Asia, Pakistan, Russia, Peru, Argentina and other dozens of countries, especially in Uzbekistan, the Sinoder Group finished 18 sets of edible oil projects. Our proudct well received by customers at home and abroad.
What We Do Now In Oil & Grain Industry:
1) Oil Screen, Drying, Storage Engineering, 5-1000t/D
2) Plant Oil Pretreatment, Squeezing, 5-1000t/D
3) Plant Oil Leaching, 3-1000t/D
4) Continuous And Semi-Continuous Salad Oil Physical Refining, 10--600t/D
5) Senior Cooking Oil Refining, 1t/D-1000T/D
6) Cottonseed Dephenolizing Protein, 50--500t/D
7) Oil Fractionation, 5--600t/D
8) Corn Oil, Rice Bran Oil, Sunflower Oil Winterization Dewaxing Production Line, 5--300t/D
9) Purely Physical Squeezing Produced Flavor Sunflower Oil, 5--1000t/D
10) Tea Seed, Walnut, Almond, Chinese Prickly Ash Seed, Grape Seed Special Oil, 1--20t/D
11) Soybean, Peanut Protein Concentrate, Active Protein Powder, 5-300t/D
12) Tea Seed Squeezing, Tea Saponin Extraction, 3--500t/D
13) Chickens, Ducks And Other Animals Skeleton, Waste Squeezing Preparing Meat And Bone Meal Powder, 5--50t/D
14) Animal Oil Low-Temperature Concentrated Extract, 5--600t/D
15) Bio-Diesel, 5--300t/D
16) A Class, Second Class Pressure Containers And Grease Chemical Equipment
17) 10-1000T/D Grain and creal drying process machinery
18) Animal Feed pellet production plant
19) 10-1200T/D industrial material drying machinery
20) Coal Gasifier station solution and machinery
21) Load cell sensor, moisture meter, gauge
