Miniature Current Transformer Manufacturer

Name: Miniature Current Transformer Manufacturer
Brand: all-electronics-online.com
SKU: 672680541
Availability: InStock
Rating: 4.7 (144 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	XQ13
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Xq13:	Current Clamp Sensor
Primary:	0~100A
Working Temperature:	-20~55
Dimension:	48mm179mm28mm
Weight:	250g
Display:	Digital
Stucture:	Transformer
Class:	0.1
Color:	Grey and Red
Application:	Lighting
Type:	Current Transformer
Phase:	Single

Product Description

Product Description

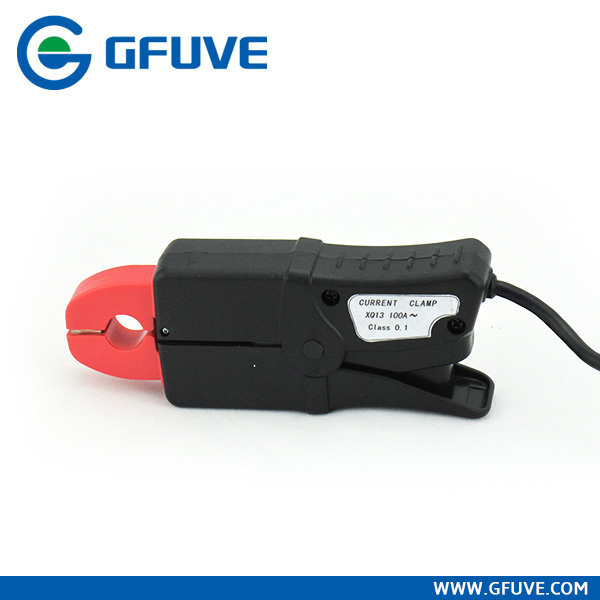

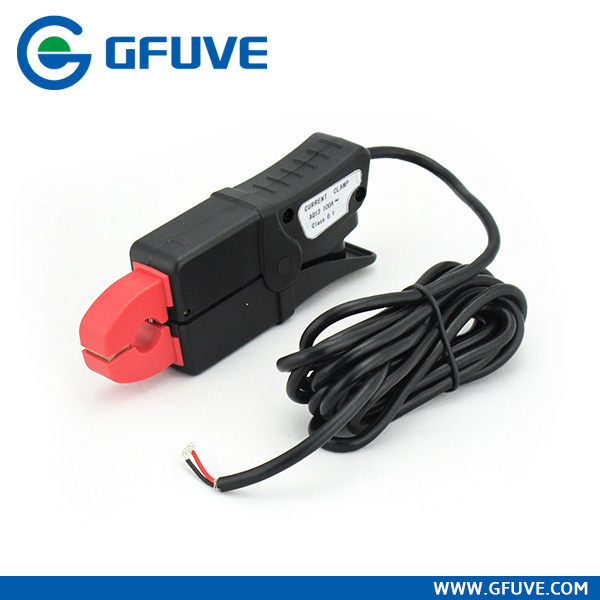

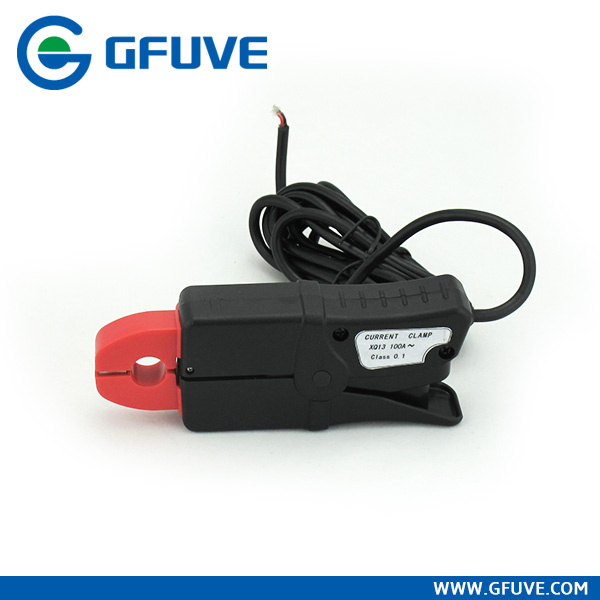

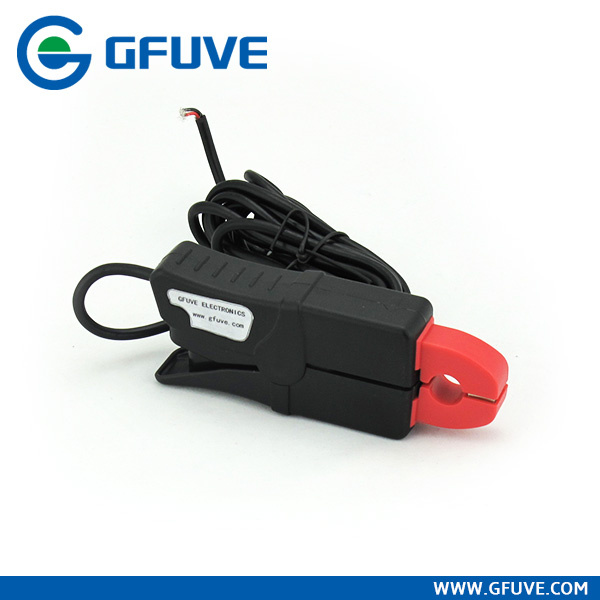

Miniature current transformer manufacturer belongs to high performance transformer field. It is a high accuracy AC current transformer which can measure and analyze a variety of electric parameter without power outage, and the difficult part in technology development is that the high quality magnetic core requests open freely.

Characteristic and application
L Suitable for 10A-100A cable online measurement.
L Holding wire diameter: φ 13mm
L Dimension: 52.5mm× 136.5mm× 28mm
L Load capacity: ≤ 4Ω
L Installation: Clamp type
L Output mode: Lead output

Primary current	Secondary current	Compensation turns	Precision
10A	4mA	No	Class 0.1%, 0.2%
10A	5mA	No	Class 0.1%, 0.2%
10A	10mA	No	Class 0.1%, 0.2%
20A	5mA	No	Class 0.1%, 0.2%
20A	5mA	200 turns	Class 0.2%
20A	5mA	400 turns	Class 0.2%
20A	8mA	No	Class 0.1%, 0.2%
20A	10mA	No	Class 0.1%, 0.2%
20A	10mA	200 turns	Class 0.2%
20A	10mA	400 turns	Class 0.2%
20A	20mA	No	Class 0.1%, 0.2%
20A	20mA	400 turns	Class 0.2%
25A	25mA	No	Class 0.1%, 0.2%
30A	30mA	No	Class 0.1%, 0.2%
40A	20mA	No	Class 0.1%, 0.2%
40A	20mA	200 turns	Class 0.2%
40A	20mA	400 turns	Class 0.2%
50A	10mA	No	Class 0.1%, 0.2%
50A	20mA	No	Class 0.1%, 0.2%
50A	20mA	1000 turns	Class 0.1%
50A	25mA	No	Class 0.1%, 0.2%
50A	25mA	200 turns	Class 0.2%
50A	50mA	No	Class 0.1%, 0.2%
60A	20mA	200 turns	Class 0.2%

Primary current	Secondary current	Compensation turns	Precision
60A	24mA	200 turns	Class 0.2%
100A	20mA	No	Class 0.1%, 0.2%
100A	50mA	No	Class 0.1%, 0.2%
100A	100mA	No	Class 0.1%, 0.2%
100A	40mA	No	Class 0.1%, 0.2%

Ratio	1000: 1 or 2000:1 , customized
Nominal input current	100 A
Max. Cont. Input current	120A
Accuracy	0.1 %,0.2%
Over voltage category	CAT III 600 V
Output signal	100mA AC at nominal input current
Frequency range	40 Hz-2000 Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20 °C to +55 °C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Max. jaw opening	13 mm
Standard	EN 61010-1
Dimensions	52.5mm x 136.5mm x 28 mm
Weight	350 g
