Miniature Low Profile Compression Load Cell (B115)
| Price: |
US $ 80/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
B115 |
| Measurement Force: |
Compression Force Measurement |
| Capacity: |
50n to 500n |
| Accuracy: |
0.5% |
| Pattern: |
Load Button |
| Out-Wire: |
5 Wires |
| Feature: |
Ultra Thin |
| Production Process: |
Strain Gauge |
| Certification: |
SGS |
Product Description

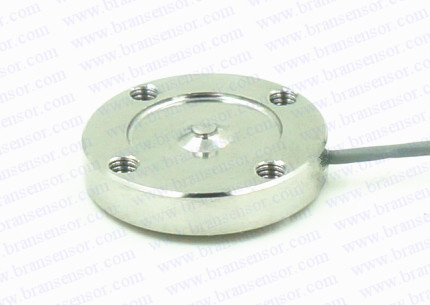

1. Name: Miniature low profile compression load cell (B115)
2. Type: B115
3. Specification
The B115 low profile load cell can be used to measure static compressive force. This is a high accuracy load cells with mini size and ultra-thin height.
Miniature Load cell is built for press or inline compression applications. The standard B115 has a robust construction available in 17-4 PH stainless-steel, with a 20mm in outside diameter and a 10 ft [3 m] #29 AWG, 4 conductor spiral shielded Teflon cable. You will also find options for external matched output readily available.
Nominal forces ranging from 50N to 500N are available as well as variable cable lengths and, on request.
The B115 Miniature Load Button offers high accuracy and high stiffness. It has a nonlinearity of ± 0.2% and a deflection of 0.002 in nominal. The standard B115 can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for 24 hour shipping. Similar to our entire Load Cell product line, this model is manufactured in China and uses metal foil strain gauge technology.
4. Product Highlights:- Ultra fast response
- Robust strain relief
- Very Low deflection and ultra-thin height
- 17-4 PH stainless-steel construction
- For use in compression
- Direction of force: Compression
- Accuracy class 0.5
- Nominal rated forces: 50N to 500N
- Configurable with different cable lengths, plug assembly
5. Datasheet| Specifications | Technique |
| Capacity | 10,20,30,50,100,200,500N |
| Rated output | 1.5±10%mV/V |
| Zero balance | ±0.05 mV/V |
| Non-linearity | ≤0.50%F.S. |
| Hysteresis | 0.50%F.S. |
| Repeatability | 0.20%F.S. |
| Creep(30min) | 0.20%F.S. |
| Temp.effect on output | 0.05%F.S./10ºC |
| Temp.effect on zero | 0.05%F.S./10ºC |
| Input impedance | 800~1100Ω |
| Output impedance | 800~1100Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 10V |
| Compensated temp range | -10~60ºC |
| Operation temp range | -20~80ºC |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | Φ2×4000mm |
| Weight approx. | 0.1kg |
| Material | Stainless Steel |
| IP Class | IP65 |
Although load button load cells are traditionally not known for their high accuracy, Brans engineers have dispelled this concept by continuously improving the accuracy of this product. And all of these load button load cells could be customized according to clients' desing and datasheet.
Welcome to Brans and work together with us. www.bransensor.com
