Miniature Protective High Power SSR-D Series Solid State Relay (DC-AC)

Name: Miniature Protective High Power SSR-D Series Solid State Relay (DC-AC)
Brand: all-electronics-online.com
SKU: 729114272
Availability: InStock
Rating: 4.3 (109 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	3SSR-25AA

Product Description

.Current:0.5-400A

2.Voltage:24-440V

3.All models feature the same compact dimensions to prolide a

uniform mounting pitch

4.Built-in MOV effectively absorbs extermal surges

5.Operation indicaor (red LED) enables monitoring opeation

6.Protective cover for greater saftey

7.Conform to IEC international electrical committee standard

8.DC and AC, AC and AC, DC and DC, AC and DC input versions available

Typical Applications

1.Uninversal switch and thermal control

2.Industrial automatic control

3.Numerial-controlled machinery, renote-control system

ated load current	Control voltage	Open current	Turn-off voltage	Load voltage	Voltage drop	OFF-state leakage	dv/di	Turn-on or off time	Frequency range	Insulation voltage	Tj	Outline
A	V	mA	V	V	V	mA	V/μS	ms	Hz	V	ºC
10	4-32	8-25	<1.5	90-660	≤1.5	≤3.0	200	10	50/60	2500	-30 ~ +80	SSR6
25	4-32	8-25	<1.5	90-660	≤1.5	≤3.0	200	10	50/60	2500
40	4-32	8-25	<1.5	90-660	≤1.5	≤3.0	200	10	50/60	2500
60	4-32	8-25	<1.5	90-660	≤1.5	≤3.0	200	10	50/60	2500
75	4-32	8-25	<1.5	90-660	≤1.5	≤3.0	200	10	50/60	2500
80	4-32	8-25	<1.5	90-660	≤1.5	≤3.0	200	10	50/60	2500
90	4-32	8-25	<1.5	90-660	≤1.5	≤3.0	200	10	50/60	2500
100	4-32	8-25	<1.5	90-660	≤1.5	≤3.0	200	10	50/60	2500

FAQ

: Are you manufacturer?
A: Yes, we are manufacturer and produce diode, thyristor, power modules, bridge rectifier and heatsink with best quality and competitive price.

Q: Can I customize products as our requirement from your company?
A: Certainly, we have our own design team, they are willing to do it for you

Q: Could I put my own logo on it?
A: Sure, as long as you are willing to offer it.

Q: Could I buy 1 pc or small quantities order?
A: Of course. We support 1 pc or small quantities order, especially for new customers.

Q: How much for the sample?
A: Some samples can be for free, but shipping cost should discuss with each other.

Q: What's the payment terms?
A: We can accept T/T, Western Union and Paypal.

Q: How long is your delivery time?
A: In general, about 6-8 working days after received your payment.

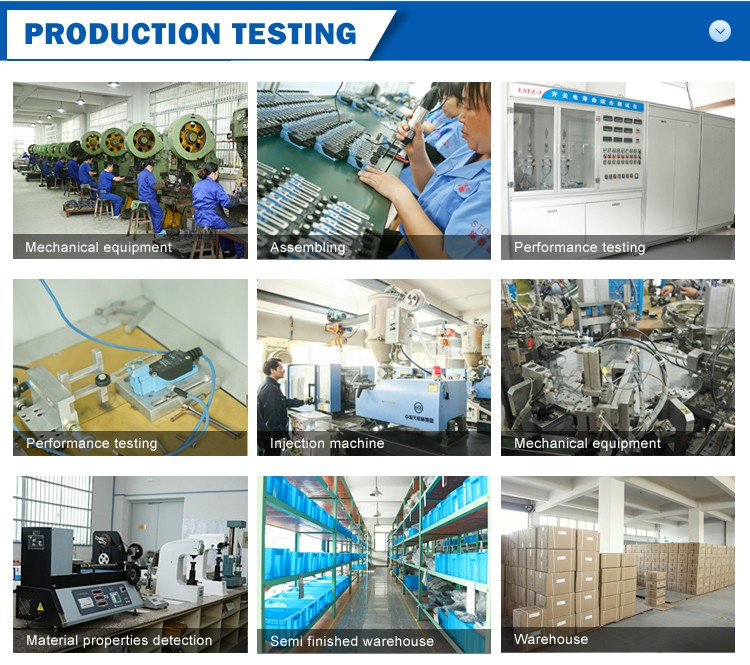

Yueqing Nanma Electrical Co., Ltd.and Jiangxi Nanma Electrical Co, Ltd Which a professional R&D and manufacture Micro switch, limit switch, travel swith, sealed switch, waterproof switch, toggle switches and so on Our company was established in 2004. Our ISO 9001-certified factory occupy a total land area of 1000 square meters and house more than 200 employees and two production lines outfitted with advanced production equipment. We have a monthly outup of 10 thousand sets of switch, which are exported to the Southeast Asia, Middle East, European. The market feedback shows that the products may completely substitude for the similar, work force: Our 2 QC auditors ensure all our products passed CE and CCC certifications. Implementing strict quality control in the whole production process, We have 2 R&D personnel with more than five years of experience who can design as customer offered sample to open model. We have 4 trade representatives with more than three years of experoence who are proficient in English. We are sincerely invite you to witness our development and resplendence together! Contact us today.
