Miniature Shear Bending Beam Load Cell for Weighing Scale (QL-55-2)

Name: Miniature Shear Bending Beam Load Cell for Weighing Scale (QL-55-2)
Brand: all-electronics-online.com
SKU: 682090861
Availability: InStock
Rating: 4.8 (119 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	20/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	QL-55-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Aplication:	Body Scales, Hand Scales, Kitchen Scales, Postal S
Type:	Micro Load Cell
Capacity:	0.5kg to 50kg
Excitation Voltage:	5 ~ 12 VDC
Size:	80912.7mm
Pattern:	Mini Load Cell

Product Description

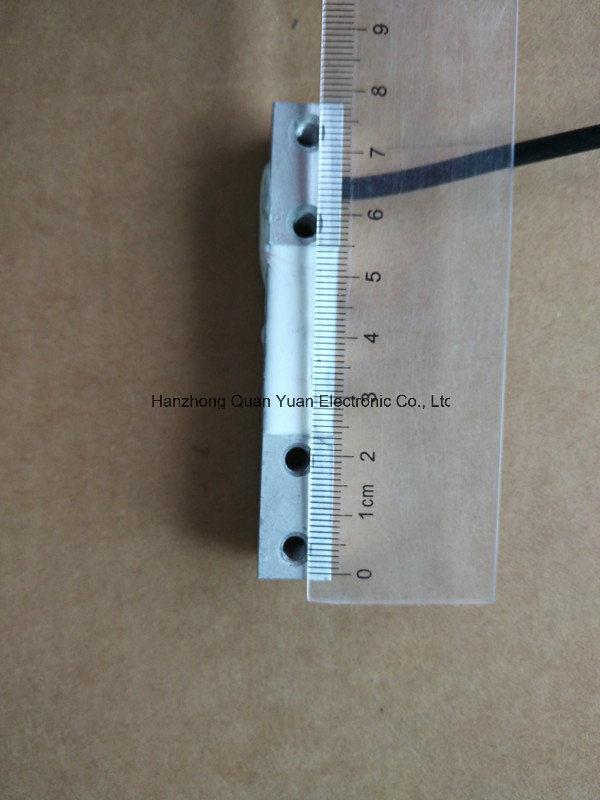

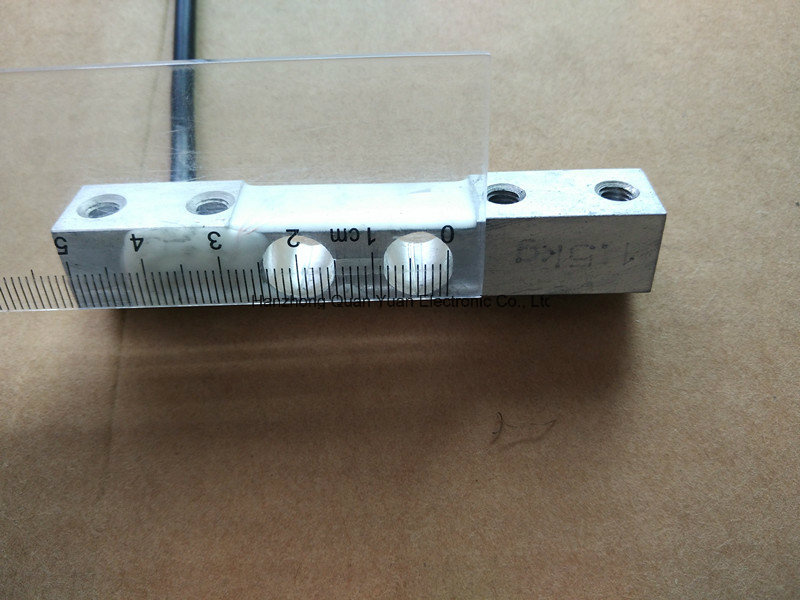

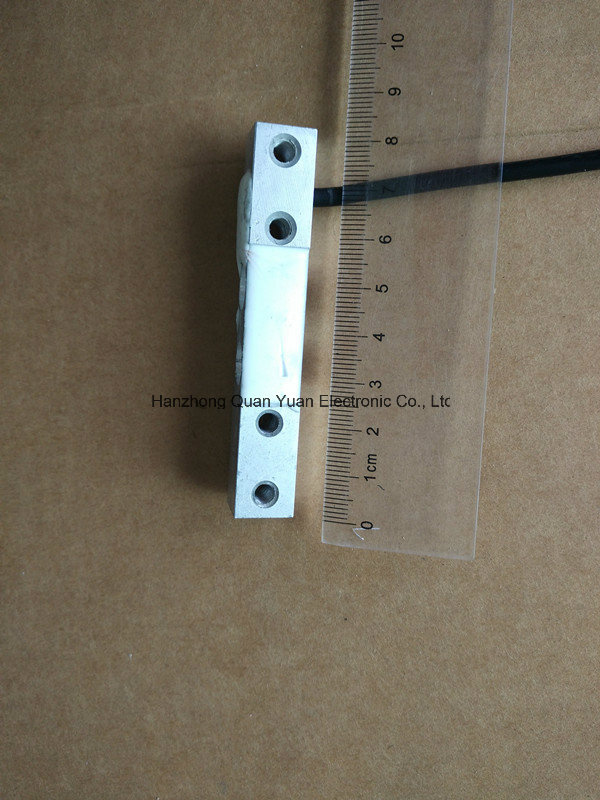

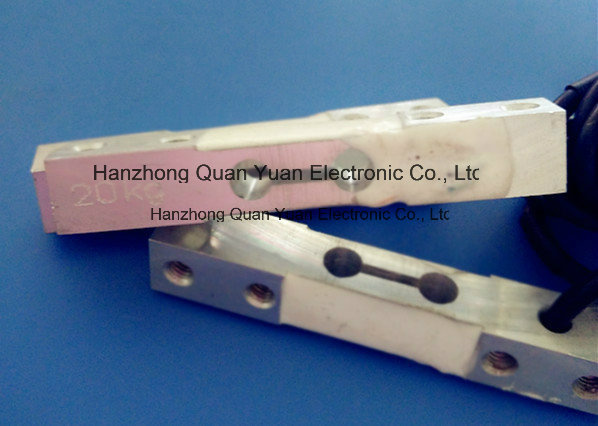

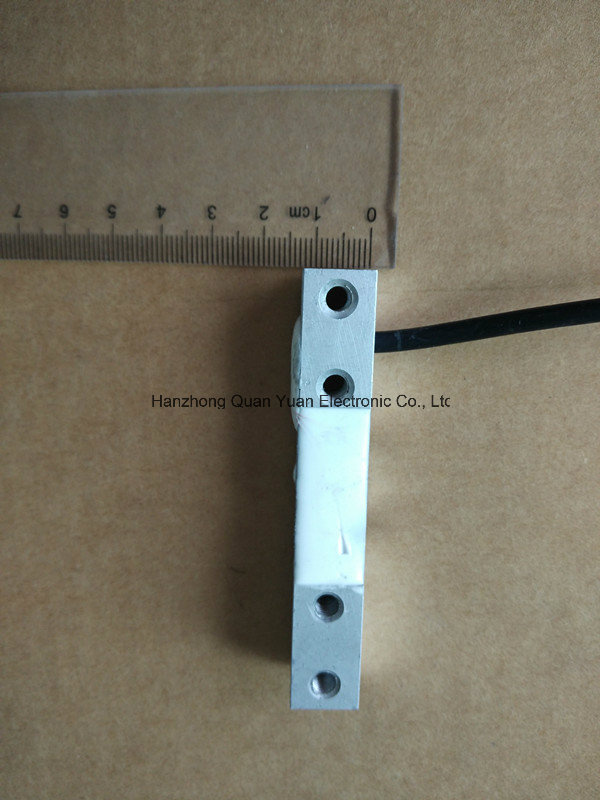

Miniature Shear Bending Beam Load Cell for Weighing Scale (QL-55-2)

Product Details:

QL-55 load cell are available in the capacities from 0.5 kg to 200 kg.
Aluminum construction with parallel beam type.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.
Suitable for electronic balance, electronic platform scale and other electronic weighing devices.

Features:

1.Capacity :0.5 kg to 50kg
2.High accuracy.
3.Aluminum parallel beam
4.Max. platform size:450x450mm

Technical Specifications

Specifications:
capacity	kg	QL-55: 0.5, 1, 2, 3, 5, 10, 20, 30, 50
capacity	kg
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	1.0 ± 0.1
excitation voltage	Vdc	5 ~ 12
combined error	%FS	± 0.05
zero unbalance	mV/V	± 0.1
non-linearity	%FS	± 0.05
hysteresis	%FS	± 0.03
repeatability	%FS	± 0.03
creep	%FS/5min	± 0.05
input resistance	Ω	1090 ± 50
output resistance	Ω	1000 ± 10
insulation resistance	M Ω	≥ 3000 @ 50 Vdc
operating temperature range	°C	-20 ~ +55
compensated temperature range	°C	-10 ~ +40
temperature coefficient of SPAN	%FS/10°C	± 0.05
temperature coefficient of ZERO	%FS/10°C	± 0.05

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
Cable length:250 mm ±20 mm
Cable diameter :3 ±0.2 mm
The cable length could be chose by customer's application.

Ordering code: model (QL- Aluminum alloy, QH-Alloy steel)-range- rated output-accuracy-defend grade-cable
Example:QL-55-2kg-1.0mV/V-0.05%FS-IP65-as customer's application

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.
