Zhejiang Lema Electrics Co., Ltd. >> Miniature Snap Action Waterproof Micro Switch

Miniature Snap Action Waterproof Micro Switch

Miniature Snap Action Waterproof Micro Switch
Price: US $ 2/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: Miniature snap action waterproof micro switch
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Miniature Snap Action Waterproof Micro Switch
Contacts: Normally Close
Explosion-Proof Type: Flameproof
Rated Current: 5A
Rated Voltage: 250VAC
Application: Auto, Electronic Products
Pressing Type: Push-Button
Protection: Waterproof
Size: Small-Sized
Breaking Form: Single Type
Environment: ﹤250℃
Breaking Capacity: General Type

Product Description

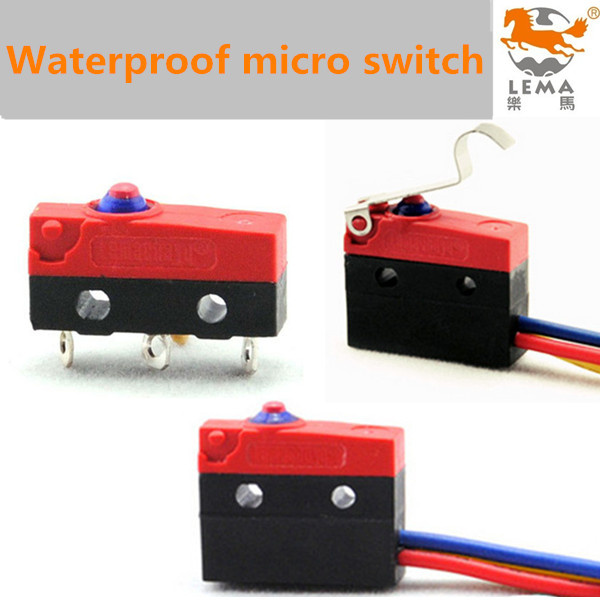

Miniature snap action waterproof micro switch

LEMA electrics 5A 250VAC waterproof V4NCS micro switch comes with a durable structure with exquisite details. It is designed in a compact size for easy installation. The refined micro switch makes an ideal component for various kinds of electronic products, especially for auto car.

Water and oil resistant
Wire and connector can be costomized
Color: Mixed black and red or on request
Rating: 5A 250V
Silver contact point
Rating 5A/250VAC,125VAC
Initial contact resistance ≤ 25mΩ
Initial insulation resistance ( At 500V DC) ≥ 100mΩ
Dielectric strength Between non-consecutive terminal 1000Vrms,50/60Hz,1min
Between current carrying and non-carry metal parts 1500Vrms,50/60Hz,1min
Between ground and each terminal 1500Vrms,50/60Hz,1min
Max.shock resistance Mechanical durable 1000m/s2
Malfunction 300m/s2
Vibration resistance 10-55Hz , 1.5mm double amplitude
Expected life Mechanical 20000000
Electrical 100000
Ambient temperature -25 to +85 °C
Ambient humidity 85%RH max
Operating frequency Mechanical 60 times/min
Electrical 25 times/min
Operation speed   0.01mm-1m/s


Originated in 1981, this company is specialized in research and development, the micro-switch, the waterproofswitch, the power source plug, the protector, the float spacing controller series product, which are suitable for low voltage electric appliance, domestic electric appliance, instrument measuring appliance electron toy with AC 50Hz, voltage 250V and below, DC voltage 220V and below. The company is located in the economic development zone of Yueqing. The first stage factory building covers an area of 11 Mou with a construction area of 4566 square meters, the second stage covers an area of 42 Mou now, which will put into building soon. The company has a rich technical force, and the key team of the Hi-Tech who dare to innovate, dare to open up. The company has achieved"LEMA"brand to invigorate the Chinese nation with the indication of "setting up the factory with quality, prospering the factory with science and technology"for more than 20 years. Our company has past management system authentication ISO9001-2000 and ISO14001-2004, and the products have won the CE certification, U. S. A. UL authentication, CCC authentication, and SGS checkout. The products are far sold to countries such as Amercia and Europe, Southeast Asia, etc. We could like to offer the best quality, competitive price and best after-sale service to all of our users, " seeking the bosom friends of the four seas, making the friend all over the world", wish to make progress together with the domestic and international friends to achieve more glorious future
