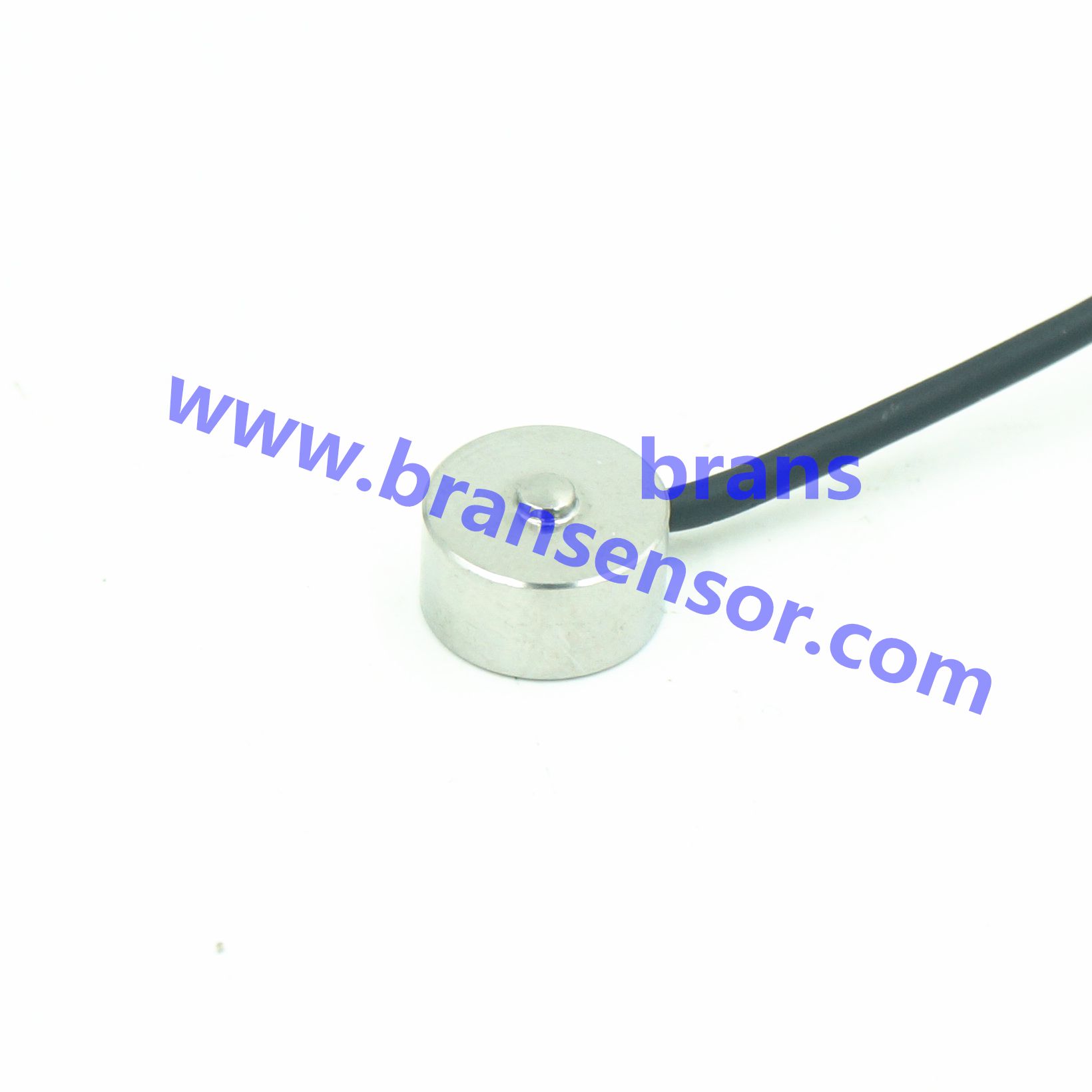

Miniature Stainless Steel Load Cell (B103)

Prod Model:	B103
Measurement Force:	Compression Force Measurement
Size:	10mm*6mm(Diameter*Height)
Product Type:	Miniature Force Sensor
Pattern:	Load Button
Feature:	High Accuracy
Production Process:	Put on Strain Gauge

Product Description

1.    Name: 50 N,100 N,200 N,300 N,500 N,1000N(11lb to 220lb) Miniature force sensor
2.    Type: B103
3.    Specification
    The B103 micro force transducer can be used to measure static compressive force. Nominal forces ranging from 50N to 1kN(11lb to 220lb) are available as well as variable cable lengths and, on request, Transducer Electronic Data Sheet. This is a high accuracy load cells with mini size.
    The compressive force transducer is mechanically and electrically compatible with its predecessor model and can easily be installed in existing systems. Its extremely compact design(outside diameter: 10mm with height as 6mm) further facilitates the integration.
    Providing 0.2 accuracy, this offers higher precision than its predecessor. The force sensor is based on high strain gauge technology. Force is applied via a special load application point.
    Brans force transducer offers IP67 protection. Precise measurement results are guaranteed even in adverse environments thanks to the hermetically sealed housing from stainless steel and rugged cable.Compact, precise, rugged - these characteristics make our load button highly versatile. Possible fields of application include:
       Cost-effective test benches for a wide range of applications
        Control and monitoring of production processes
        Measurement tasks in development, when other sensors are too big, e.g. for measuring braking forces directly in the brake caliper.Furthermore, the compressive force transducer adapts to the application - cable lengths and connectors are variable. If a plug version is selected, C9C can also be fitted with TEDS. The sensor's identification number will be automatically detected and the amplifier automatically configured.
4. Key Features
   Compact design
   Direction of force: Compression
   Accuracy class 0.2
   Nominal rated forces: 50N to 1000N
   Configurable with different cable lengths, plug assembly

1	Specifications	Technique
2	Capacity	50,100,200, 500,1000N
3	Rated output	1.0±20%mV/V
4	Zero balance	±2%F.S.
5	Non-linearity	0.5%F.S.
6	Hysteresis	0.2%F.S.
7	Repeatability	0.2%F.S.
8	Creep(30min)	0.2%F.S.
9	Temp.effect on output	0.05%F.S./10ºC
10	Temp.effect on zero	0.05%F.S./10ºC
11	Input impedance	800~1100Ω
12	Output impedance	800~1100Ω
13	Insulation	≥5000MΩ/100VDC
14	Recommended excitation	5V
15	Maximum excitation	10V
16	Compensated temp range	-10~60ºC
17	Operation temp range	-20~80ºC
18	Safe overload	150%F.S.
19	Ultimate overload	300%F.S.
20	Cable size	φ2×4000mm
21	IP Class	IP66
