Miniature Tension and Compression Load Cell (B305)

Name: Miniature Tension and Compression Load Cell (B305)
Brand: all-electronics-online.com
SKU: 687660671
Availability: InStock
Rating: 5 (47 reviews)

Price:	US $ 15-30/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	B305
Capacity:	20kn
Size:	5170mm DH
Pattern:	Load Button
Out-Wire:	5 Wires
Feature:	High Accuracy
Production Process:	Strain Gauges
Certification:	SGS

Product Description

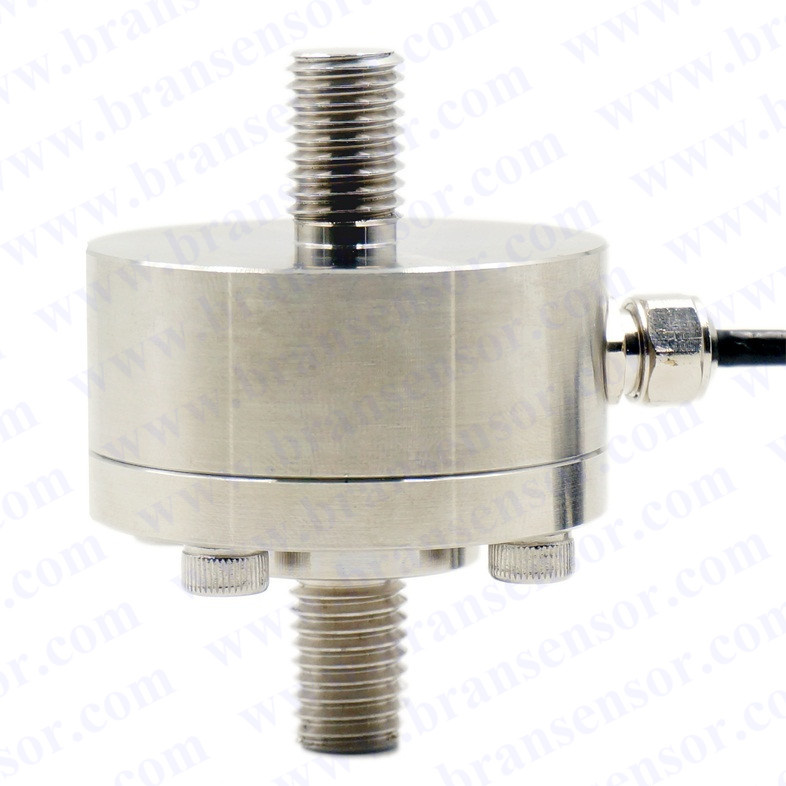

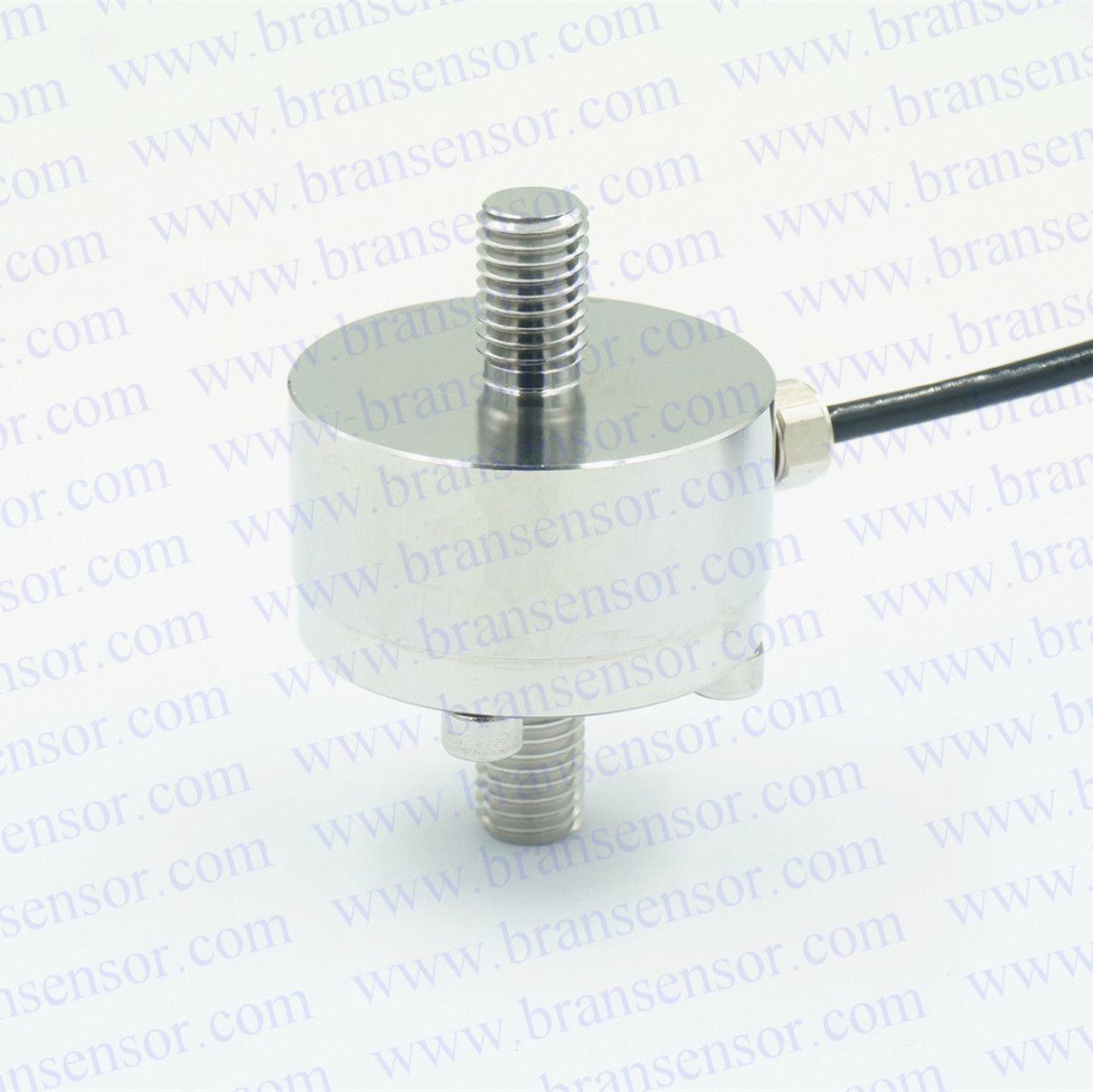

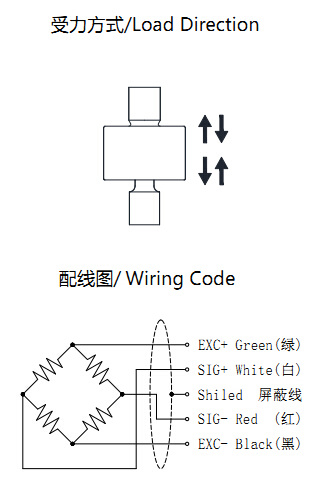

Brans's miniature load cells/force sensors are designed to fit into systems with limited space or tight clearances. The Model 305 series are the miniature load cells designed to measure both tension and compression load forces from 1 kg up to 2T or 10 N up to 20KN, with high accuracies of 0.5 % full scale. The all-welded, stainless steel construction is designed to eliminate or reduce to a minimum the effect of off-axis loads. This design can be completely welded for underwater applications. If you need special modifications or a complete custom design to meet your unique requirements, please feel free to let us know.

Datasheet

Number	Specifications	Technique
1	Capacity	1,2,5,10,20kN
2	Rated output	1.5±10%mV/V
3	Zero balance	± 0.03mV/V
4	Non-linearity	0.2%F.S.
5	Hysteresis	0.1%F.S.
6	Repeatability	0.1%F.S.
7	Creep(30min)	0.05%F.S.
8	Temp.effect on output	0.05%F.S./10ºC
9	Temp.effect on zero	0.05%F.S./10ºC
10	Input impedance	780±20Ω
11	Output impedance	700±10Ω
12	Insulation	≥5000MΩ/100VDC
13	Recommended excitation	10V
14	Maximum excitation	15V
15	Compensated temp range	-10~60ºC
16	Operation temp range	-20~80ºC
17	Safe overload	150%F.S.
18	Ultimate overload	200%F.S.
19	Cable size	Φ4×4000mm
20	Weight approx.	0.6kg
21	Material	Stainless Steel
22	IP Class	IP67

Features
Miniature size as 51mm in diameter and 70mm height
Load range measurements: 1kgs to 2T; 10 N to 20KN; or 2.2046 lb to 440.9 lb
Stainless steel construction; All-welded option available for underwater applications
High accuracies of 0.1 % to 0.5 % full scale

What you could get from Brans?

Load Cells, Miniature and sub-miniature force sensors, Pressure Transducers/sensors, Torque Transducers, Temperature sesensors, Flow senesors, Displacement Transducers (LVDTs), Digital Gauges, Strain Gauges, Instrumentation for Test, amplifiers and data acquisition systems as well as software for structural durability investigations, tests and analysis, Measurement and Other Applications.

Why choose Brans?

Brans cooperate with HBM, FLINTEC, METTLER TOLEDO, Honeywell, Vishay and other famous brand electronic measuring instruments and system. We could learn and get the most advanced technology and news of procedures. Good manufactures means good products.

We could OEM for miniature and sub-miniature load cells with tension or compression; Big capacity load cells/sensors Brans also could make it with good quality material.

Brans products (load cells, force sensors, amplifiers… ) have been certified per ISO9001, OIML, CE, RoHS, NETP AND ATEX. Brans could promise you the best quality for measuring products.

Who Brans cooperate with?

Brans have developed solutions for a wide range of industries including automotive, aerospace, military and defense, oil and gas, R&D and material/test labs, machine and automation equipment designers and builders, off highway and heavy equipment manufacturers, medical device manufacturers, semiconduct or fabricators, utilities and energy companies, marine equipments and shipbuilding.
