Miniature Through Hole Compression Load Cells

Name: Miniature Through Hole Compression Load Cells
Brand: all-electronics-online.com
SKU: 815128005
Availability: InStock
Rating: 4.8 (87 reviews)

Price:	US $ 17-45/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QH-61C
Type:	Pancake Load Cell
Capacity:	From 10kg to 200kg
Ultimate Overload:	Fs% 200
Safe Overload:	Fs% 150
Aplication:	Vehicle Scales
Pattern:	Pancake Load Cell

Product Description

Product Discription:

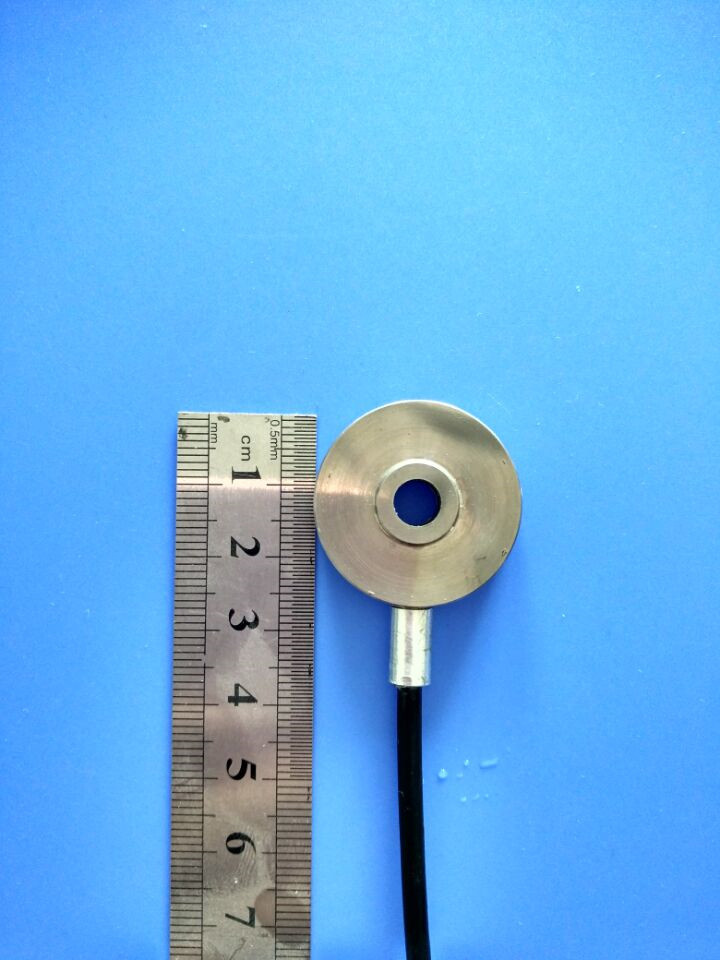

QH-62C load cells are available in the capacities of 10kg to 200kg.
Alloy Steel construction with wheel shaped type,
Silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.
Suitable for medical and material endurance test.
Features:
Capacity: 10KG to 200kg
High accuracy and high stiffness.
capacity and sizes can be customized.
Stainless Steel.
Integral installation.

Technical Specifications:

Specifications:
capacity	kg	10--200
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	2.0 ± 0.2
excitation voltage	Vdc	10
combined error	%FS	± 0.3	± 0.5	± 1
zero unbalance	%FS	± 2
non-linearity	%FS	± 0.3	± 0.5	± 1
hysteresis	%FS	± 0.3	± 0.5	± 0.5
repeatability	%FS	± 0.1	± 0.2	± 0.2
creep	%FS/30min	± 0.1	± 0.2	± 0.3
input resistance	Ω	350 ± 10
output resistance	Ω	351 ± 4
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	ºC	-10 ~ +60
compensated temperature range	ºC	-10 ~ +40
temperature coefficient of SPAN	%FS/10ºC	± 0.05	± 0.1	± 0.2
temperature coefficient of ZERO	%FS/10ºC	± 0.05	± 0.1	± 0.2

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
Cable length:2m
Cable diameter :6 ±0.2 mm
The cable length could be chose by customer's application.

Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.

QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).

All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.

In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.

Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
