| Prod Model: |
C60BL |
| OEM/ODM: |
Accepted |
| Warranty: |
2 Years |
| Certification: |
Ce, 3c, CAS, RoHS |
| Panel: |
Iron Panel |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Monoamplifier |
| Conductive Mode: |
AB |
| Type: |
PA Amplifier |
| Used For: |
Hotel, School, Airport, Market, Church, Subway |
| Usage: |
Public Address System |
| Output Number: |
3+1 |
| Sound Channel: |
1.0 |
Product Description

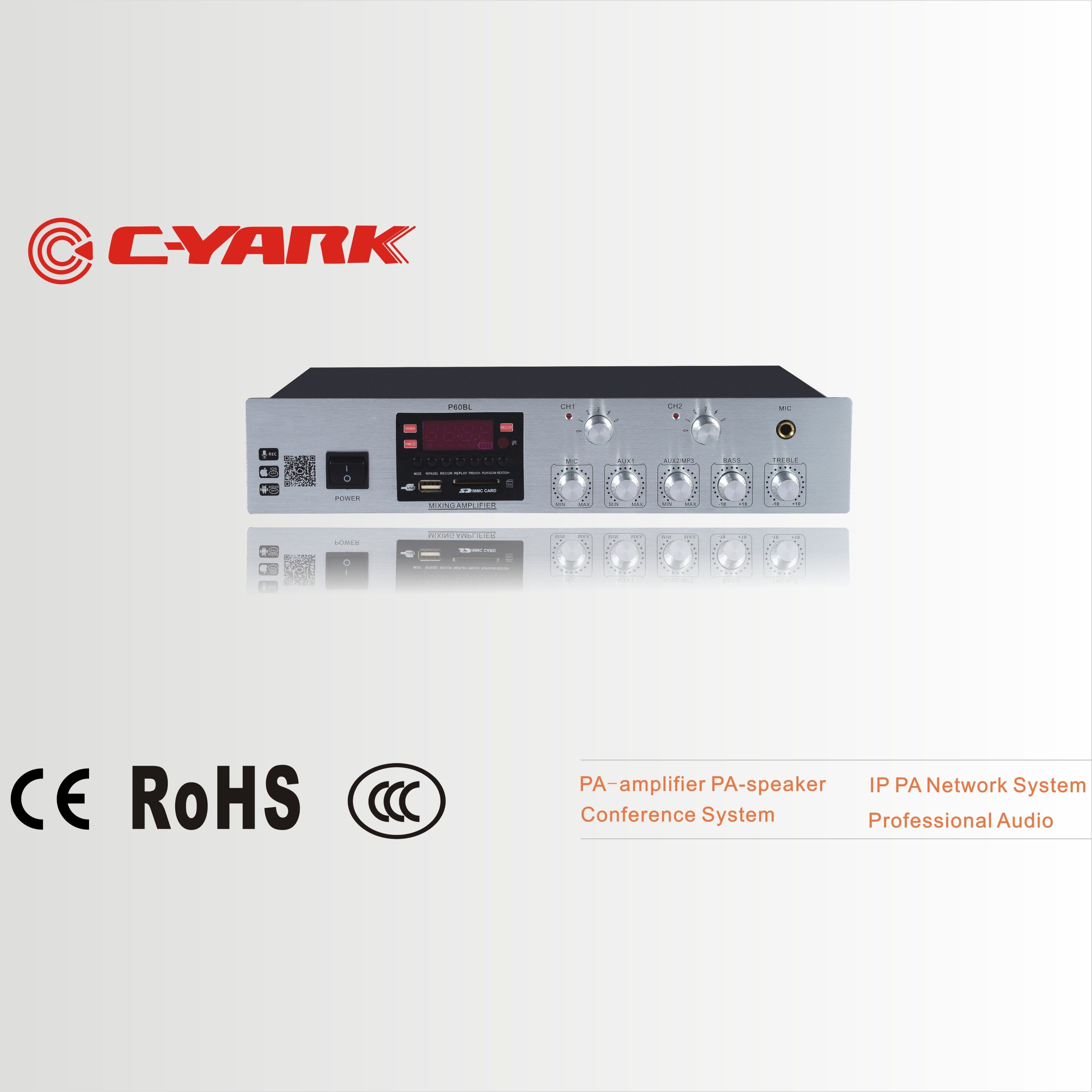

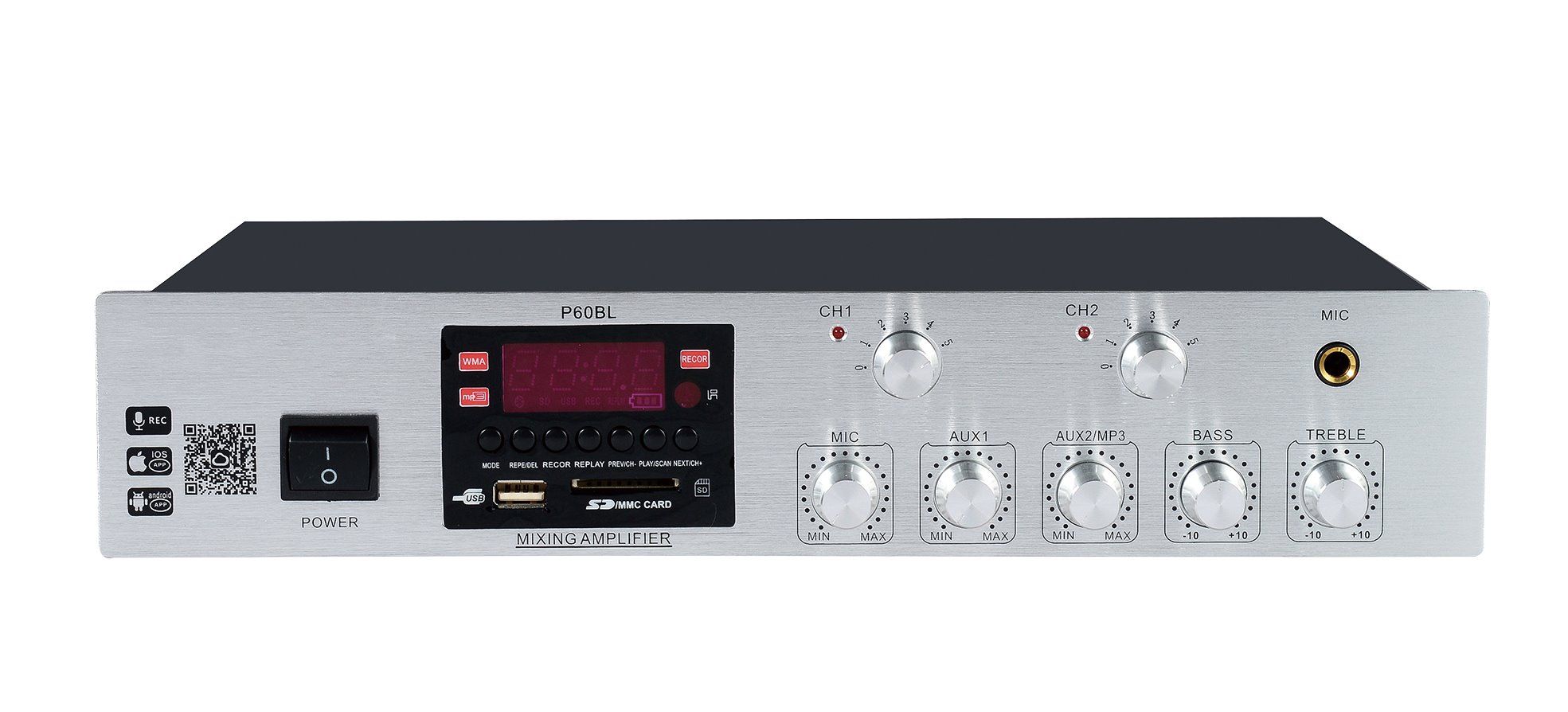

C-yark Public Address System Mixer Amplifier with Bluetooth
Descriptions| 1.5U rack mount design with high quality aluminium alloy panel |
| The 2 zones have independent volume control |
| Excellent device of radiator cooling fan that ensures working effectively. |
| The perforated back panel and a high-speed fan keep the amp cool. |
| It has thermal protection for working stability. It'll turn off the electricity automatically when overheat. |
| Unique referred Bluetooth name for easy recognition when there are many Choices of Bluetooth. |
| Powerful own developed APP allow you to choose all your company's Cloud products. |
| It can connect to all smart phones no matter Android system or IOS system. |
| The digital module includes USB and SD card interface |
Bluetooth Control System:
1).Installing the APP by scanning our unique QR code;
2).A key source switch trigger/ The device of audio source selection/Audio input selection/MIC input selection/FM radio, recording and playback selection/Mobile phone internal music player selection
3).File format: MP1/MP2/MP3/WMA/WAV/APE/FLAC
4).File system types: FAT12/FAT16/FAT32, each medium can feature a 32GB storage capacity.
5).FM(Tuner) function |
| Output module has a cover to prevent it from damaging by other machines. |
| Built-in MP3 and FM function to play background music directly and no need for another audio facility. |
| Mute function: Input has priority level (Front MIC1 overrides AUX). |
Features| Power: 60W |
| Input: 2 MIC inputs, 2 AUX inputs(MIC 1 has Mute function for emergency input) |
| Output: 4-16, 100V, 70V |
| Decoder module supports USB / SD Card / Bluetooth playback/ FM radio |
| Player mode: repeat; play/pause; previous/next; vol+/vol-;EQU(equalizer) |
| Treble and bass control |
| Master Volume control are provided for overall tone control |
| Cooling fan and heat sink for over-heat protection |
| Power transistor: Samsung brand |
| Short-circuit/Over-load/Over heat protection |
Specifications | Model | C60BL |
| Rated Power | 60W |
| Harmonic distortion | <0.5% at 1KHz,1/3 output power |
| Output Mode | 70V 100V 4-16 |
| Input Sensitivity | 500mv |
| S/n Radio | >85db |
| Fred Response | 80Hz~~15KHz±3db |
| Power | AC 220V~~240V/50Hz~60Hz |
| Dimension(mm) | 350×250×66mm |

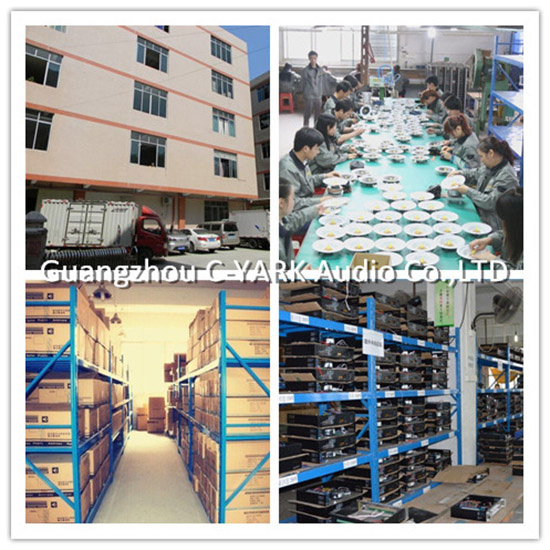

Our factory:
Our Company:
Our Canton Fair:
Our Certifications:
FAQ:1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.
2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.
3. What's your warranty period?
Our warranty period is 24 months. We will give 1% easy-worn accessories to you before shipment.
4. What's your payment terms?
We accept Western Union and Bank Transfer. 30% deposit in advance, balance 70% before shipment.
5. Where is your main market?
Our main customers are from Southeast Asia, South America, North America, Western Europe, Africa and other countries.
6. How many days do you need to prepare the goods?
We need about 30 working days for large order.
Our Mission:
1.Your time is as valuable to us as it is to you.
2.We will treat you and your business with the utmost respect.
3.We will always keep you informed and answer any questions you may have.
4.We will immediately resolve any issues.
5.We will help you find the best product for your needs, even if we don't carry it.
6.Feel free to stop by call or email us anytime. we'd be delighted to hear from you.
Guangzhou C-yark Electronic Technology Co., Ltd. is a professional public address system manufacturer. Our products cover power amplifier series, ceiling speaker, indoor and outdoor speaker series, MP3 public broadcasting system, conference system and IP system. All of Our products have received CCC, CE and ISO9001 approvals
C-yark owns best equipment, normative management, professional design and technology. With an aim of providing our customers the most stable and excellent performance products, and to satisfy customer with perfect service, we stick to improving our existing products and developing new products every year. We successfully launch various new products to domestic and foreign market; So, OEM or ODM order is welcomed.
With 10-year effort, C-yark has achieved great successful in domestic and foreign market. Our products are exported to all over the world, such as India, Pakistan, Poland, Serbia, Australia etc. We have also cooperated with a group of domestic agents and provided superior qualified PA system equipment to a lot of big projects, such as Beijing Olympic games in 2008, Guangzhou Asian Games in 2010 and Shenzhen 2011 The 26th Summer Universiade
We sincerely hope to establish a long term business cooperation relationship with customers from all over the world.
