Shenzhen Shixin Digital Co., Ltd. >> Mjpeg USB Camera Module with UVC for Linux/Android System

Mjpeg USB Camera Module with UVC for Linux/Android System

Mjpeg USB Camera Module with UVC for Linux/Android System
Price: Negotiable/Piece
Trade Terms: FOB,FCA,EXW
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: SX-6130A-1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lens Option: 3.6mm (1.7mm/2.8mm/6mm/8mm/12mm Optional)
Type: USB Writing Board
Certification: CE

Product Description

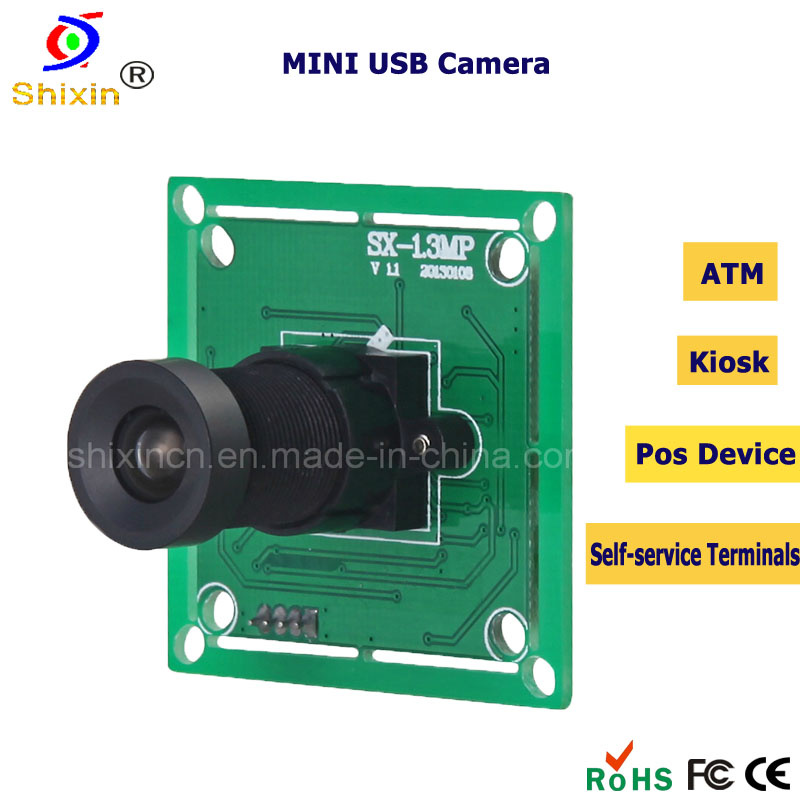

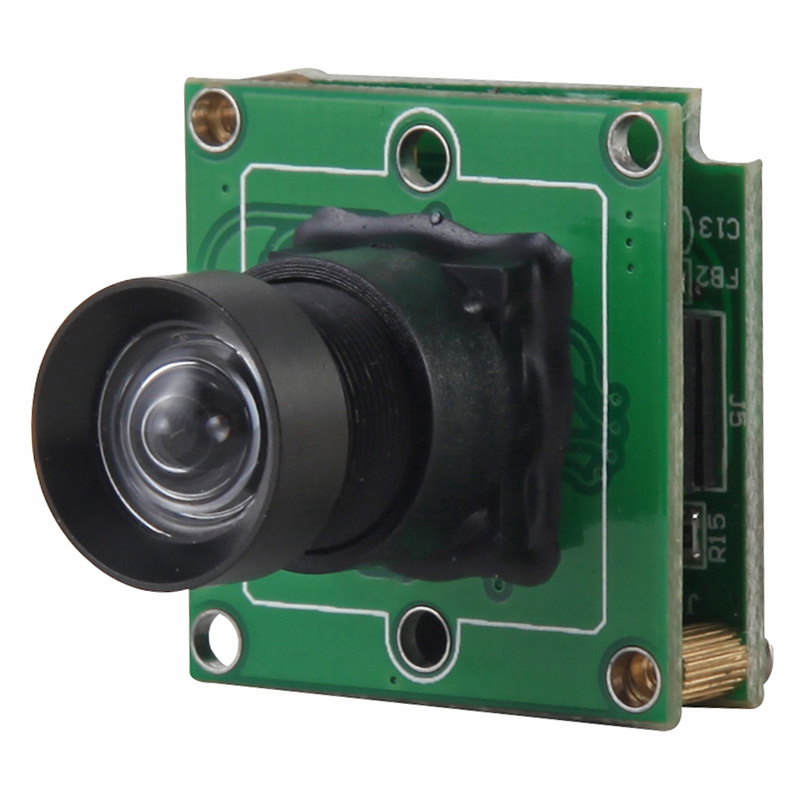

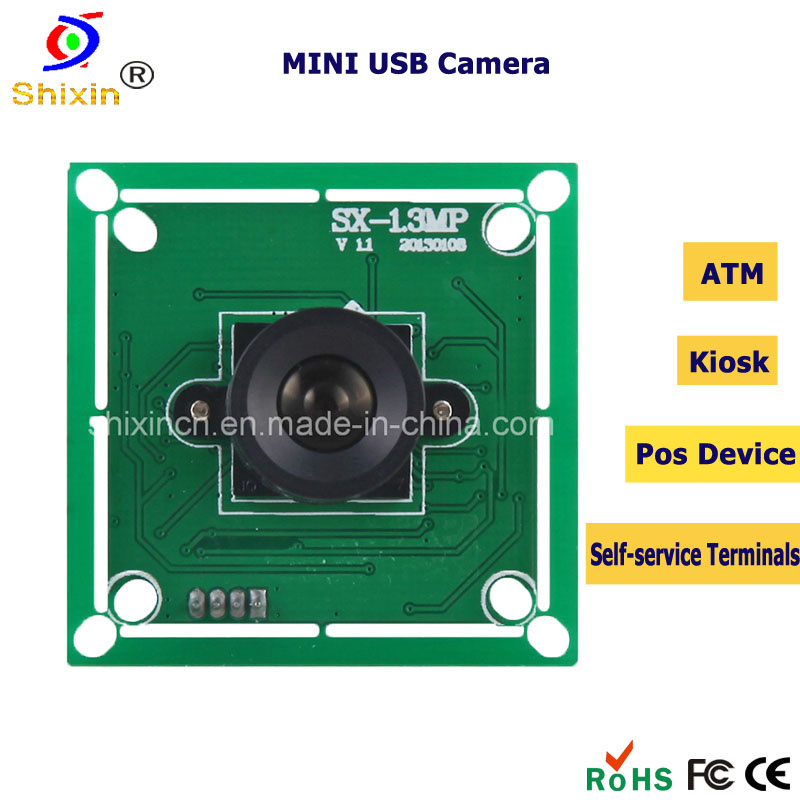

Mjpeg USB Camera Module with UVC for Linux/Android System



*Wide VGA-2Megapixels: Large field of view, smaller defect detection and improved precition
*universal computer support and user friendly plug and play intergration
*eliminates costly frame grabber and simplifies cabling
*snapshot shutter provides crisp images of moving objects





Sensor1.3Mega Pixel /CMOS
Aarray size7.5fps: 1280Hx720V(YUV); 25fps: 1280x720V(MJPEG); 30fps: 640Hx480V
Pixel Size2.8µ m x 2.8µ m
Size of sensor1/34inch
Color Filter ArrayRGB Bayer Pattern
Max Data Rate40MPS
Output Video FormatYUY2
Responsivity1.0V/lux-SEC(500nm)
ADC Resolution10-bit, on chip
Frame rateUp to 30fps for VGA
S/N Ratio42dB
DynamicRange86Db
Interface typeUSB 2.0
Operating Temperature-20 to 70(degree)
Power consumption0.7W
System requirementWinXP/Vista/Win7(Win98/2000 use UVC Driver)



If there is any question, please don't hesitate to contact us. We will try our best to cooperate with you.



Shenzhen Shixin Digital Co., Ltd is a professional manufacturer of IP cameras, CCTV cameras, web cams, PTZ cameras, Waterproof cameras, Wireless cameras, Infrared cameras, HD cameras, Megapixel IP cameras and other CCTV accessories, established in 2001. We always commit ourselves to studying, producing & selling the series IP&PC &CCTV products. Because of making great efforts several years, now we become a major manufacturer of selling IP&PC&CCTV in China. Our products are sold popularly in domestic and moreover in Europe, North America, South America, Southeast Asia and so on, have won most domestic and overseas market.

At present, our factory own SMT automatic chip machine; Our production process has gained the TQC quality system (the Certificated Quality Management System), IQC strictly receiving electronic accessories' strictly controlling quality; QA guarantees 100% certified rate of absolute products. We are trying our best to take our advantage of technology and science in order to create mature serials products of IP, PC, CCD and CMOS Cameras. Our marketing branch locates at Seg Plaza, which business many covers in track of sale of domestic and overseas market, and after-service. The Engineering Department devises the kinds of camera board and pick-up camera directly according to the customers' demand.

We have built up a strict quality control system. Our personnel try their utmost to design and develop more high-tech products. In order to set up a professional marketing service team and a scientific sales system, we keep our staff get training from experts to strengthen our service level, and to provide excellent services to our customers.

"Good Quality, Competitive prices, and Excellent Service" is our commitment; Welcome you to join us in creating a prosperous business together!
