Mjpt Pre-Insulated Aluminum Cable Terminal Jointing Sleeves

Prod Model:	mjpt
Technology:	Full Tension Jointing
Color:	Black
OEM:	Accept
Sample:	Free
Material:	Aluminum
Application:	Conduct Electricity
Type:	Crimp Terminal, Pre-Insulated
Character:	High Conductivity
Production Process:	Punching
Shape:	Tubular
Interface Type:	Crimping
Certification:	SGS
Brand:	Haiwe

Product Description

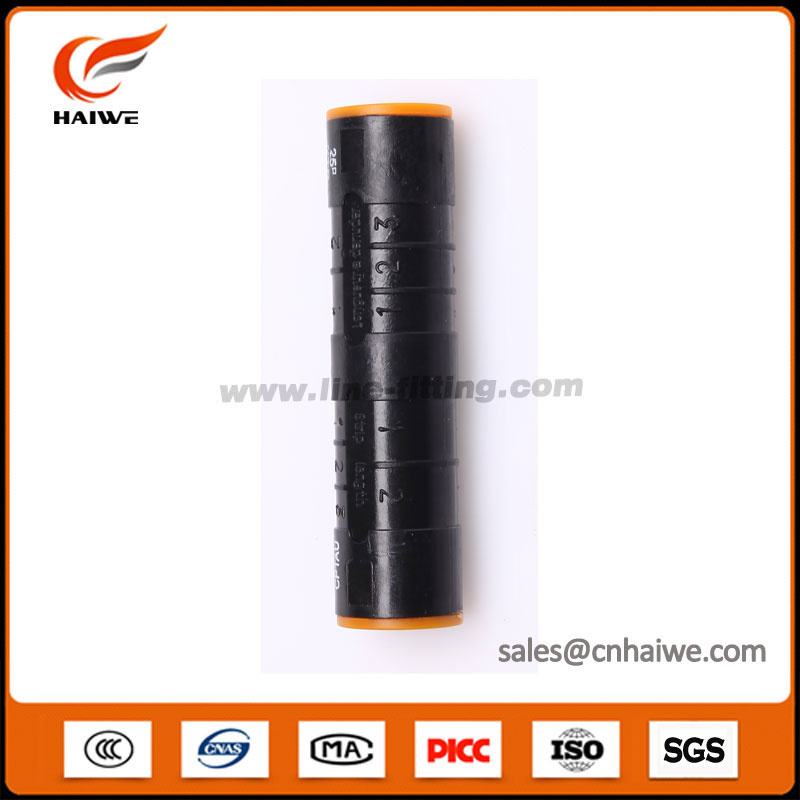

MJPT Pre-Insulated Aluminum Cable Terminal Jointing Sleeves

1.Application:
MJPT Sleeves are used for full tension jointing of ABC(Aerial Bundled Conductor) cables.The pre-insulated compression sleeve consists of a 1050A aluminum tube coated internally with contact grease and a stop to ensure that the conductors are correctly positioned.The sleeve is insulated by means of a strong sheath of thermoplastic polymer material and has ends with an additional insulation ring colored to indicate the size of conductor.

2.Feature:
a.Positions and crimping order
b.Length of insulation to be stripped from the cable core
c.Die size required
d.Fitting reference code
e.Colour code to select size

3.Installation:
a.Strip the conductor to the right length(L indicated on the sheath)
b.Slide the sleeve on the conductor until it stops
c.Crimp the sleeve with correct hex die in the order marked on the sleeve
d.Repeat the same operation on the other conductor in order to complete the connection

4.Technical Data:
Conductive Material
Aluminum 99.6% pure insulating material Thermoplastic Polymer
Operating Termperature
-55ºC to 100ºC


Type	Cable Size(mm²)		Plastic Sleeve Diameter(mm)	Length(mm)	Color
	A	B	C	L
MJPT16/16	16	16	20	98.5	Blue
MJPT25/25	25	25	20	98.5	Orange
MJPT35/35	35	35	20	98.5	Red
MJPT50/50	50	50	20	98.5	Yellow
MJPT70/70	70	70	20	98.5	White
MJPT95/95	95	95	20	98.5	Gray
