Mk2p 10A 8 Pin DC 24V 24V 8 Pins Mini Intermediate Power Elay

Name: Mk2p 10A 8 Pin DC 24V 24V 8 Pins Mini Intermediate Power Elay
Brand: all-electronics-online.com
SKU: 818504075
Availability: InStock
Rating: 4.3 (109 reviews)

Price:	US $ 0.92/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MK2P
Contact Type:	2z, 2h, 2D
Contact Overload:	10A
Rated Coil Power:	DC2.0W, AC3.5va
Coil Specification:	DC6V~220X AC6V~380V
Dimension:	35.5X35.5X55.5mm

Product Description

MK2P 10A 8 pin dc 24v 24v 8 Pins Mini Intermediate Power Relay

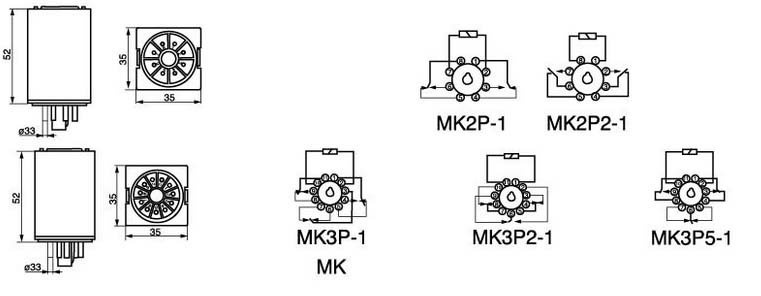

1.PICTURE
Contact form:2C 3C
Rated load:10A/250V 28VDC(Resisrance) 7A/250VAC 28VDC
Chargepower:2500VA,280W
Contact resistance:<50MΩ
Material:Sliver Alloy
Electric life:≥100000Time
Mechanical life≥1000000Time
Plck up voltage(at 25ºC)≤80%Uh
Drop out voltage (at 25ºC) DC≥15%Un,AC≥30%Un
Max continuous voltage:110%
Insulation resistance:≥100MΩ(500VDC)
Coil normal power:DC(W) 1.5.AC(VA)2.7
Operate time ≤30MS
Release time ≤20MS
Ambient temperature -10~+40ºC
Ambient pressure:35%~85%RH
Atmospheric:86~106KPa
Weight:75g

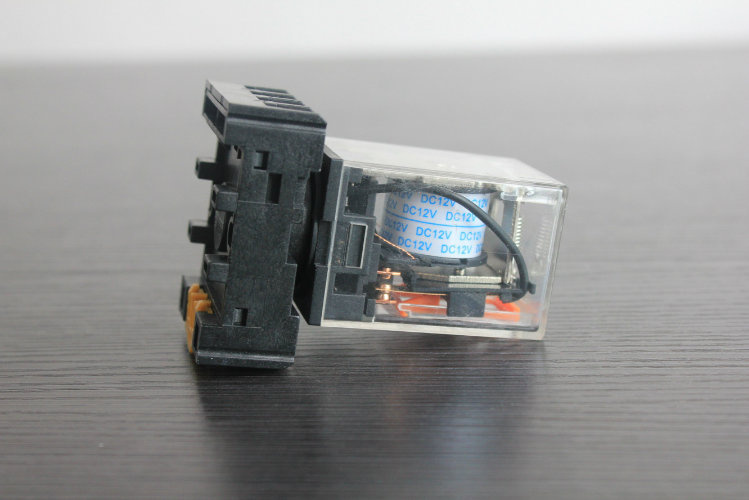

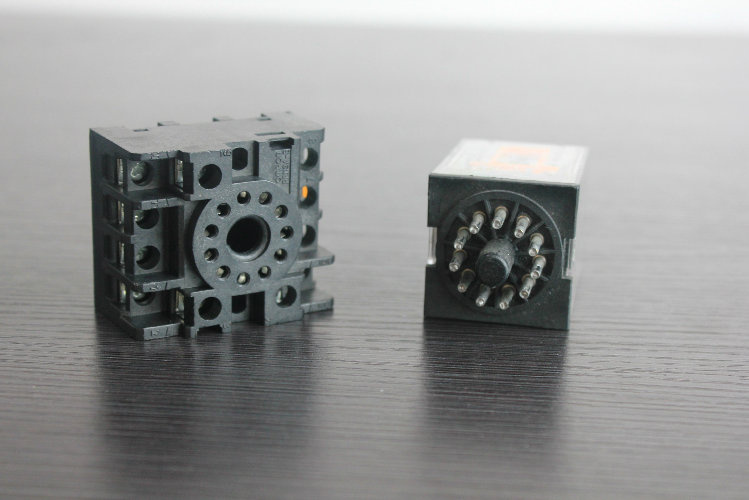

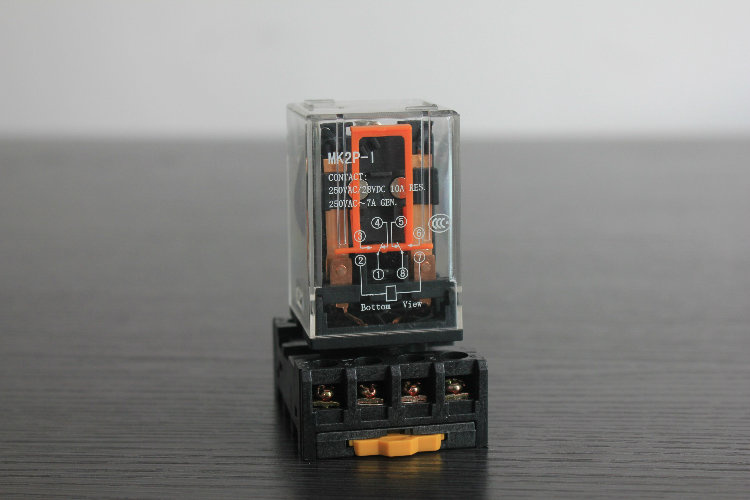

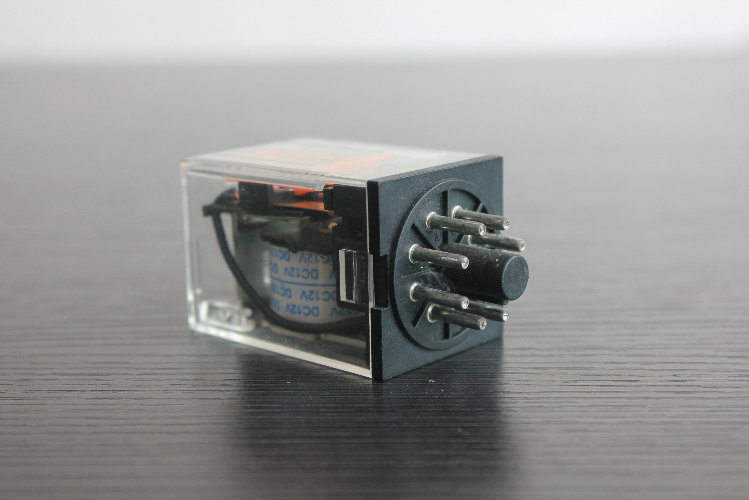

2.PICTURE
